This is the user’s manual for the XMC™ Link also called isolated debug probe, providing technical information
and hints on how to use it.
Intended audience
This document is intended for anyone who wants to use the XMC™ Link.
Table of contents
About this document .............................................................................................................................................1
Table of contents ...................................................................................................................................................1
Pinout of debug connectors ..............................................................................................................5
Power supply ...........................................................................................................................................6
Virtual COM Port (UART-to-USB Bridge) .................................................................................................6
Production data .................................................................................................................................7
Differences in hardware versions ......................................................................................................7
Components placement and geometry .................................................................................................9
List of material.........................................................................................................................................9
Revision history ...................................................................................................................................................11
User's Manual
www.infineon.com
R1.0
2015-12-11
XMC™ Link
Based on SEGGER J-Link Technology
Table of contents
1
Introduction
This document describes the features and hardware details of the XMC™ Link. XMC™ Link is an isolated debug
probe for all XMC™ microcontrollers.
The debug probe is based on SEGGER J-Link debug firmware, which enables use with DAVE™ and all major
third-party compiler/IDEs known from the wide ARM® ecosystem. Table 1 shows its specification.
Table 1
Dimensions
Power
Connectors
XMC™ Link specification
All Infineon Cortex®-M based XMC™ Microcontroller
62 x 33 mm (without cables plugged in)
PC side: 5 V via Micro-AB USB Connector
Target side: 2.5 V – 5 .5V via one of the debug connector (VDD)
•
10-pin Cortex® Debug Connector
•
8-pin XMC™ MCU Debug Connector
•
Micro –AB USB Connector
Supported Processor
Supported Protocols
•
Serial Wire Debug (SWD)
•
Single Pin Debug (SPD)
•
Serial Wire Viewer (SWV via SWO pin)
•
JTAG
•
UART-to-USB Bride, Virtual COM (VCOM)
Others
•
1 kV functional isolation
1.1
Block diagram
The block diagram in Figure 1 shows the main components of the XMC™ Link and their interconnections. There
are following main building blocks:
•
XMC4200 Microcontroller in a VQFN42 package
•
Isolating Device
•
10-pin Cortex® Debug Connector
•
8-pin XMC™ MCU Debug Connector
•
Micro-AB USB Connector
•
2 LEDs: Debug LED and Communication LED
•
12 MHz Crystal
User's Manual
2
R1.0
2015-12-11
XMC™ Link
Based on SEGGER J-Link Technology
Table of contents
XMC™ Link V1
12 MHz
Crystal
Debug
LED
COM
LED
2.5V -5.5V
DIR
RESET
SPD
SWD
JTAG
GPIO
OCS
CCU80
8-pin XMC™ MCU
Debug Connector
SPD
SWD
RX/TX
SPD
SWD
JTAG
SWV
Isolating
Device
U0C0
U0C1
XMC4200
Micro-
controller
USB
USB
Micro
USB
10-pin Cortex™
Debug Connector
SWV
U1C1
RX/TX
U1C0
EVR
3.3V
IFX54441
Voltage
Regulator
5V
BlockDiag.emf
Figure 1
Block diagram of the XMC™ Link
1.2
Getting started
To operate the XMC™ Link the installation of the J-Link Driver is required.
1. Please download the latest version from
https://www.segger.com/jlink-software.html
and install it on your
PC/laptop.
Note: The J-Link driver is also part of the typical installation of DAVE™ and 3rd party tools supporting SEGGER J-
Link.
2. Connect XMC™ Link with your PC/laptop using the Micro USB cable.
3. A proper connection and installation of the J-Link driver is indicated by a constantly illuminated DEBUG
LED.
4. Connect your XMC™ target board with XMC™ Link using one of the enclosed cables.
5. Select SEGGER J-Link as debugger in your preferred IDE e.g. DAVE™
6. Start the flash programming and debugging session
User's Manual
3
R1.0
2015-12-11
XMC™ Link
Based on SEGGER J-Link Technology
Table of contents
2
Hardware description

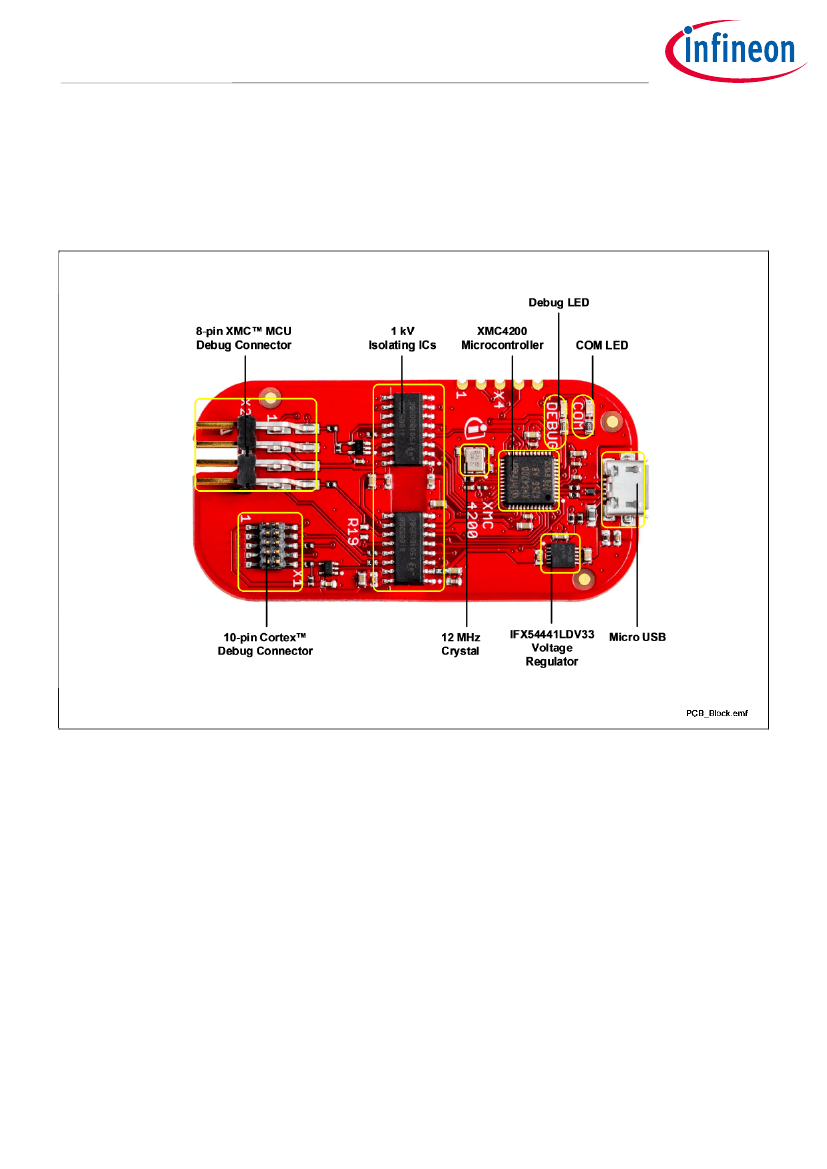

The following chapters provide a detailed description of the hardware and how it can be used. The hardware is
depicted in Figure 2.
Figure 2
PCB of the XMC™ Link
2.1
Known limitation
XMC Link™ V1 has a minor known limitation which could occur only during programming the BMI of a XMC1000
device in ASC-BSL mode to another BMI mode. This limitation is solved in the PCB version V1.1. The version
number is printed on the bottom side of the PCB below the USB connector.
The limitation can be avoided if the XMC™ Link V1 is powered before the target XMC™ will be powered.
2.2
Debug connector
The XMC™ Link can be connected to the XMC™ target microcontroller by either of the debug connectors:
