KPF-3236 Overview

3.2x3.6mm FULLCOLOR SMD CHIP LED LAMPS

Preview

Download Datasheet

View All

Kingbright

Features

LOW POWER CONSUMPTION.

3.2x3.6mm FULLCOLOR

SMD CHIP LED LAMPS

KPF-3236SRSGMBC-RV SERIES

Package Dimensions

3.2mmx3.6mm SMT LED. 1.1mm THICKNESS.

ONE BLUE, ONE GREEN AND ONE RED CHIPS IN ONE

PACKAGE.

CAN PRODUCE ANY COLOR IN VISIBLE SPECTRUM,

INCLUDING WHITE LIGHT.

Description

The Super Bright Green source color devices are made with

Gallium Phosphide Green Light Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diodes.

The Blue source color devices are made with GaN on SiC

Light Emitting Diode.

Static electricity and surge damage the LEDS. It is recommended

to use a wrist band or anti-electrostatic or anti-electrostatic glove

when handing the LEDs.

All devices, equipment and machinery must be electrically

grounded.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0

.1(0.004") unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subjected to change without notice.

Selection Guide

Iv (mcd)

@ 20 mA

Min.

SUPER BRIGHT RED (GaAlAs)

KPF-3236SRSGMBC

-RV

SUPER BRIGHT GREEN (GaP)

BLUE (GaN)

Note:

1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

Part No.

Dice

Lens Type

Viewing

Angle

2θ1/2

Min.

12.5

WATER CLEAR

3.2

120°

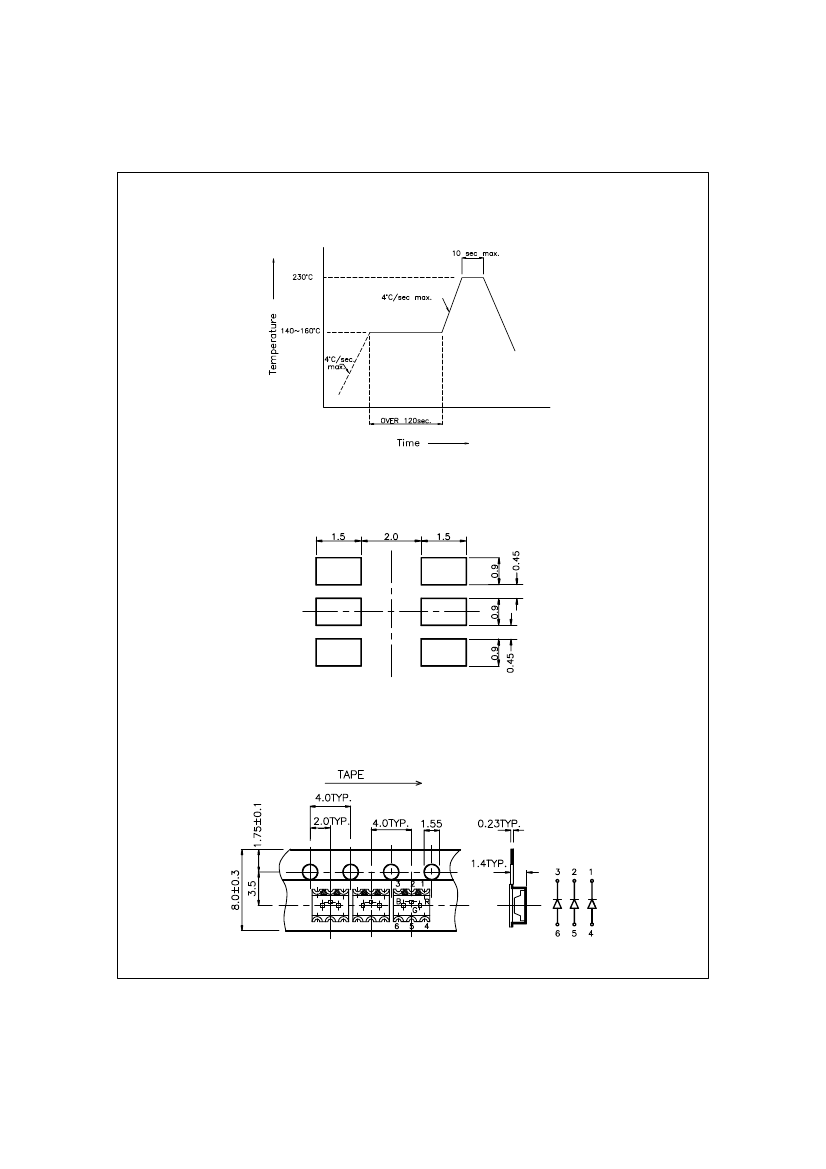

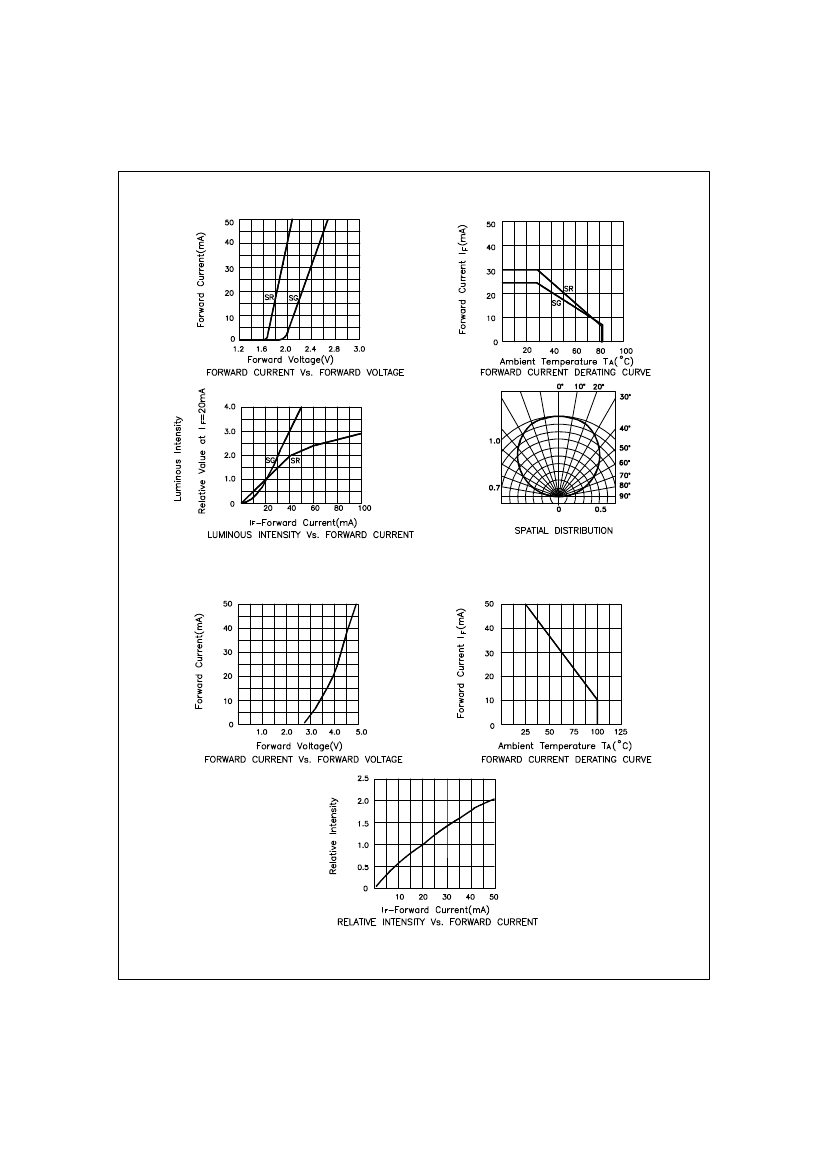

1-KPF-3236-RV-1
