KITRA 020L board data sheet
KITRA 020L
Data sheet
29/08/2017
KITRA 020L board data sheet
Summary
.1
.2
.3
.4
.5
REVISION HISTORY
KITRA 020L IMAGES
INTRODUCTION
DESCRIPTION and block diagram of the KITRA 020L
HARDWARE & COMPONENTS DETAIL
.5.1
.5.2
.5.3
.5.4
.5.5
.6
.6.1
.6.2
.6.3
.7
.8
.9
Samsung ARTIK 020 module
Barometer/Pressure sensor
Proximity sensor
NFC memory
LoRa/Sigfox module CMWX1ZZABZ-078 (LPWAN module)
POWER SUPPLY CONNECTOR
EXPANSIONS CONNECTOR
ANTENNA CONNECTORS
2
3
3
3
4
4
6
7
8
9
10
10
11
12
12
14
15
15
15
15
15
17
17
18
18
18
19
19
19
BOARD CONNECTORS
LEDS
BUTTON
KITRA 020L DEVELOPMENT BOARD BOOTING
.9.1
.9.2
.10.1
.10.2
ARTIK 020 MODULE
LPWAN MODULE
ARTIK 020 MODULE
LPWAN MODULE
.10 RF ELECTRICAL SPECIFICATIONS
.11 SPECIFICATIONS
.12 MECHANICAL SPECIFICATIONS
.13 HOUSING PRESCRIPTION
.14 PACKAGING (STARTER KIT)
.15 DECLARATION OF CONFORMITY
.16 OPERATING ENVIRONMENT
.17 DICLAIMERS
.1
REVISION HISTORY
Revision
0.1
Draft version
Description
Date
29/08/2017
KITRA 020L board data sheet
.2
KITRA 020L IMAGES

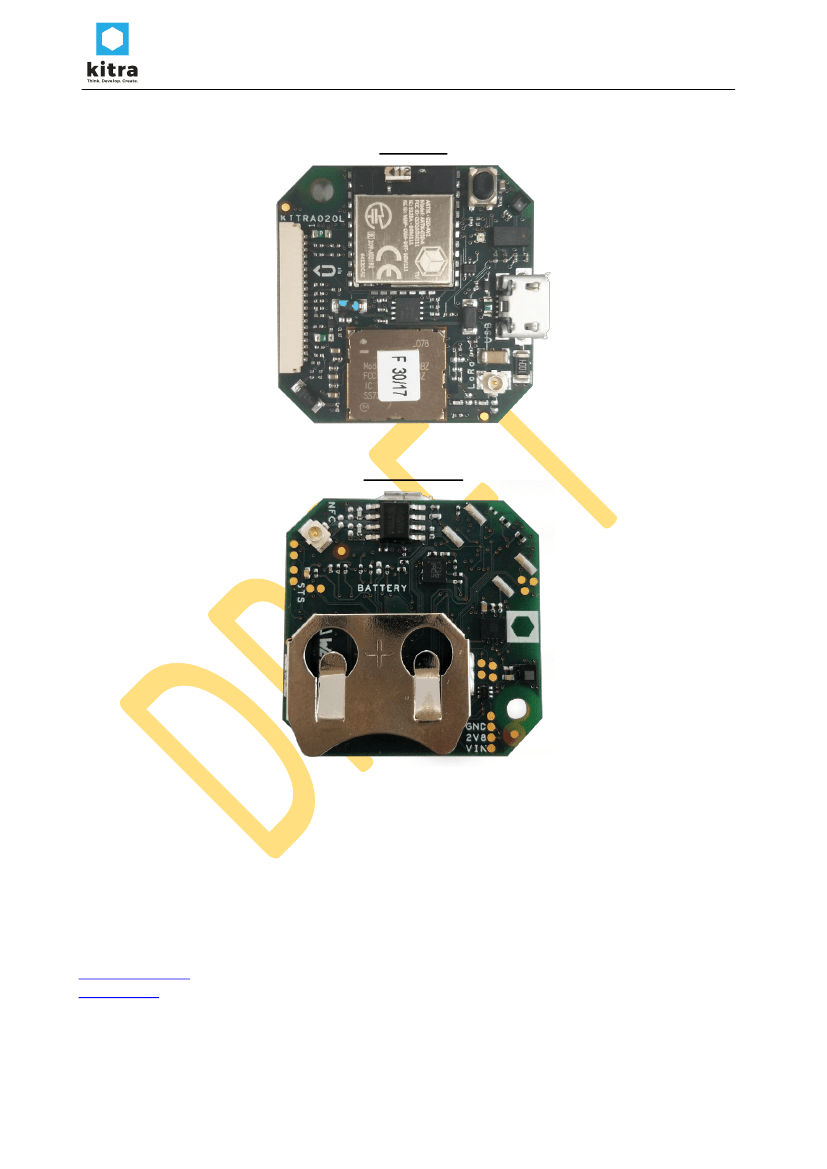

TOP VIEW
BOTTOM VIEW
.3
INTRODUCTION
This data sheet provides the description of the KITRA 020Lboard.
KITRA is a family of boards and includes a set of carrier boards for Samsung ARTIK modules, KITRA 020L
is a carrier board of the Samsung ARTIK 020 module.
As RushUp electronics platform, KITRA 020L is a product accelerator and can be used from makers, devel-
opers, high mix low volume products and from all who want the benefit of an off the shelf industrialized board
and doesn’t have time and/or money to invest in a custom solution.
For details about RushUp and ARTIK, please visit:
www.rushup.tech
www.artik.io
.4
DESCRIPTION AND BLOCK DIAGRAM OF THE KITRA 020L
KITRA 020L is the product accelerator for IoT Industry 4.0, factory automation, smart home gateway, multi-
media applications, video cameras and home appliances and includes multicore processing, memories,
crypto, sensors, communication interfaces and GPIO, as well as the power supply circuits.
KITRA 020L board data sheet

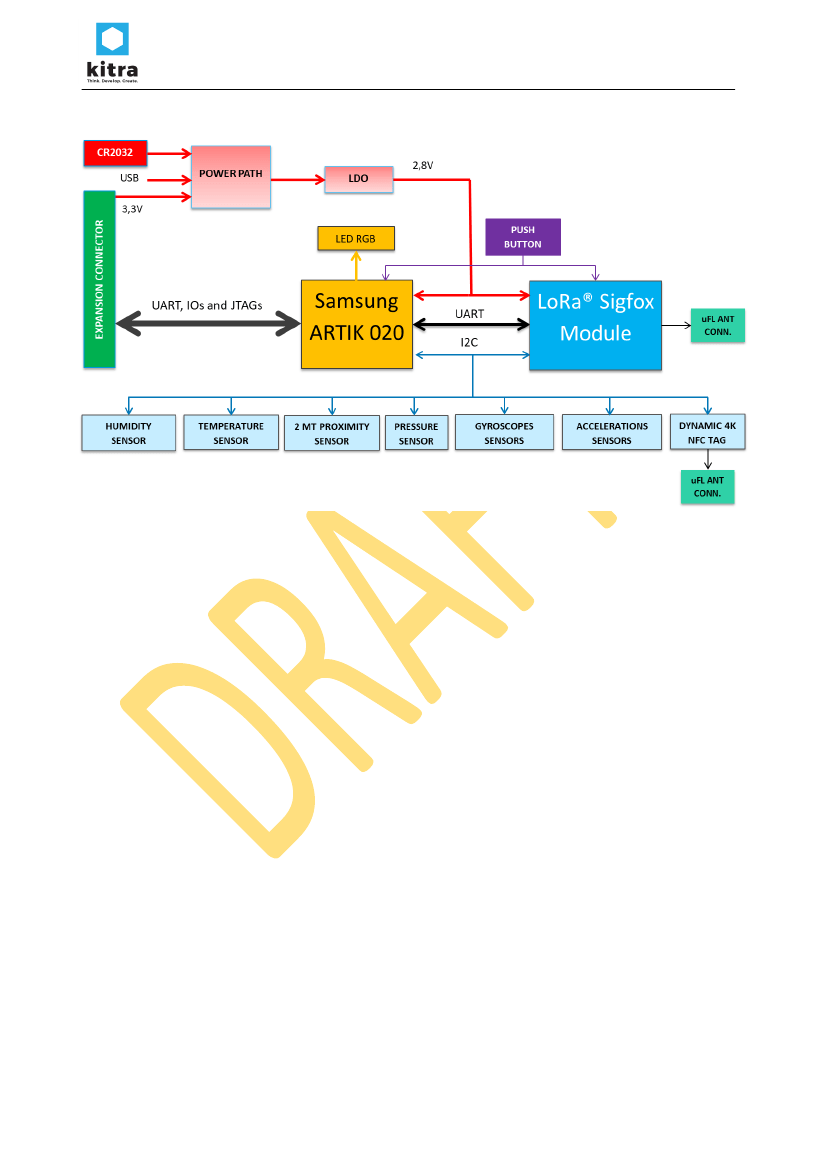

See below the block diagram of the board.
.5
HARDWARE & COMPONENTS DETAIL
.5.1
Samsung ARTIK 020 module
Samsung ARTIK 020 is the module of the KITRA 020L board and it embeds four specific functions:
Processing;
Memory;
Bluetooth LE;

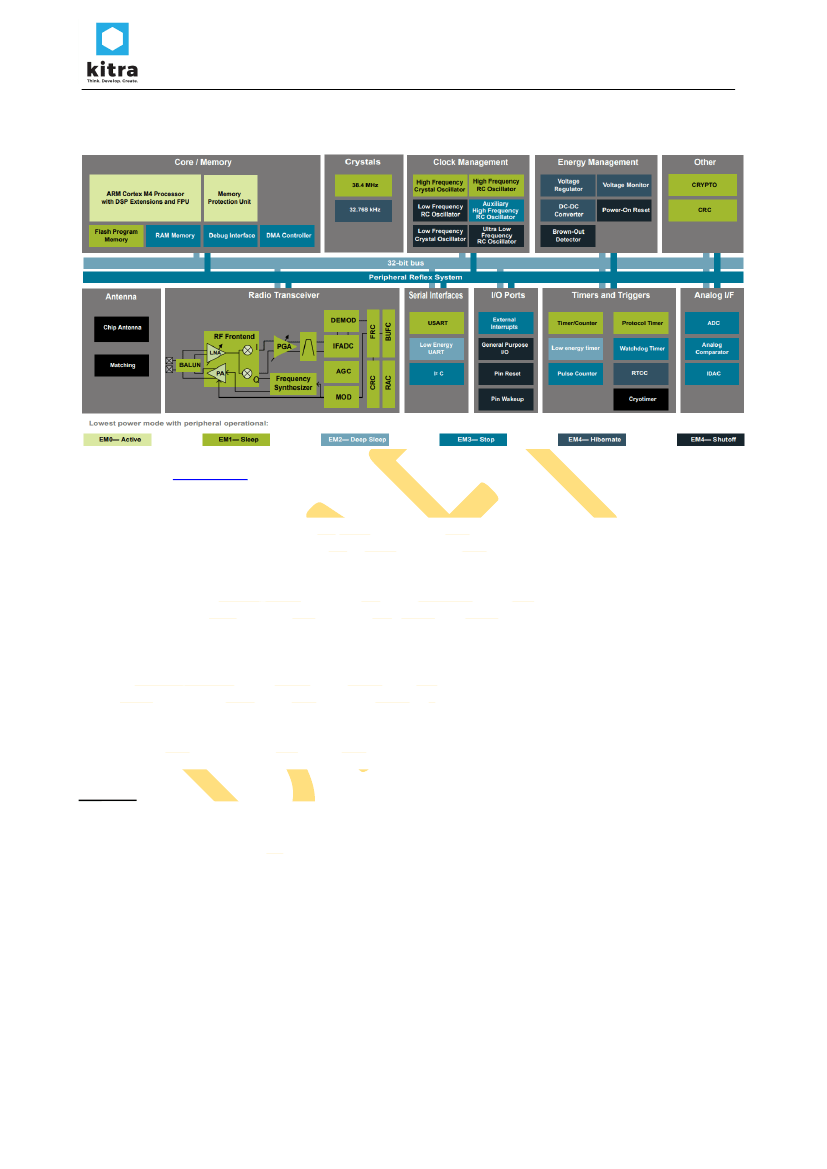

The ARTIK 020 is a Bluetooth® Module targeted for Bluetooth low energy applications where reliable RF,
low-power consumption, and easy application development are key requirements. At +8 dBm TX power,
ARTIK 020 is ideal for applications requiring short and medium range Bluetooth connectivity. The ARTIK 020
integrates all of the necessary elements required for a Bluetooth application: Bluetooth low energy radio, a
software stack, and GATT-based profiles, and it can also host end user applications, which means no exter-
nal microcontroller is required in size, price or power constrained devices. The ARTIK 020 Bluetooth Module
also has highly flexible hardware interfaces to connect to different peripherals or sensors.
ARTIK 020 can be used in a wide variety of applications:
IoT Sensors and End Devices
Commercial and Retail
Health and Wellness
Industrial
Home and Building Automation
Smart Phone
Tablet and PC Accessories
KEY FEATURES OF THE ARTIK 020 MODULE
Bluetooth 4.2 Compliant
Integrated antenna
TX power: up to +8 dBm
RX sensitivity: down to -92 dBm
Range: up to 200 meters
32-bit ARM® Cortex®-M4 core at 40 MHz
Flash memory: 256 kB
RAM: 32 kB
Autonomous Hardware Crypto Accelerator and Random Number Generator
KITRA 020L board data sheet
Integrated DC-DC Converter
Onboard Bluetooth stack
Please refer to
www.artik.io
website for more details on Samsung ARTIK 020 module.
.5.1.1
Accelerometers - Gyroscopes Sensors
The LSM6DSL is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope
performing at 0.65 mA in high-performance mode and enabling always-on low-power features for an
optimal motion experience for the consumer.
The LSM6DSL supports main OS requirements, offering real, virtual and batch sensors with 4 kbyte for
dynamic data batching.
ST’s family of MEMS sensor modules leverages the robust and mature manufacturing processes al-
ready used for the production of micromachined accelerometers and gyroscopes.
The various sensing elements are manufactured using specialized micromachining processes, while
the IC interfaces are developed using CMOS technology that allows the design of a dedicated circuit
which is trimmed to better match the characteristics of the sensing element.
The LSM6DSL has a full-scale acceleration range of ±2/±4/±8/±16 g and an angular rate range of
±125/±245/±500/±1000/±2000 dps.
High robustness to mechanical shock makes the LSM6DSL the preferred choice of system designers
for the creation and manufacturing of reliable products.
The LSM6DSL is available in a plastic land grid array (LGA) package.
Features
Power consumption: 0.4 mA in combo normal mode and 0.65 mA in combo high-performance
mode
“Always-on” experience with low power consumption for both accelerometer and gyroscope
Smart FIFO up to 4 kbyte based on features set
Android M compliant
Hard, soft ironing for external magnetic sensor corrections
±2/±4/±8/±16 g full scale
±125/±245/±500/±1000/±2000 dps full scale
Analog supply voltage: 1.71 V to 3.6 V
Independent IOs supply (1.62 V)
Compact footprint, 2.5 mm x 3 mm x 0.83 mm
SPI & I
2
C serial interface with main processor data synchronization feature
Pedometer, step detector and step counter
Significant motion and tilt function
Standard interrupts: free-fall, wakeup, 6D/4D orientation, click and double-click
Embedded temperature sensor
