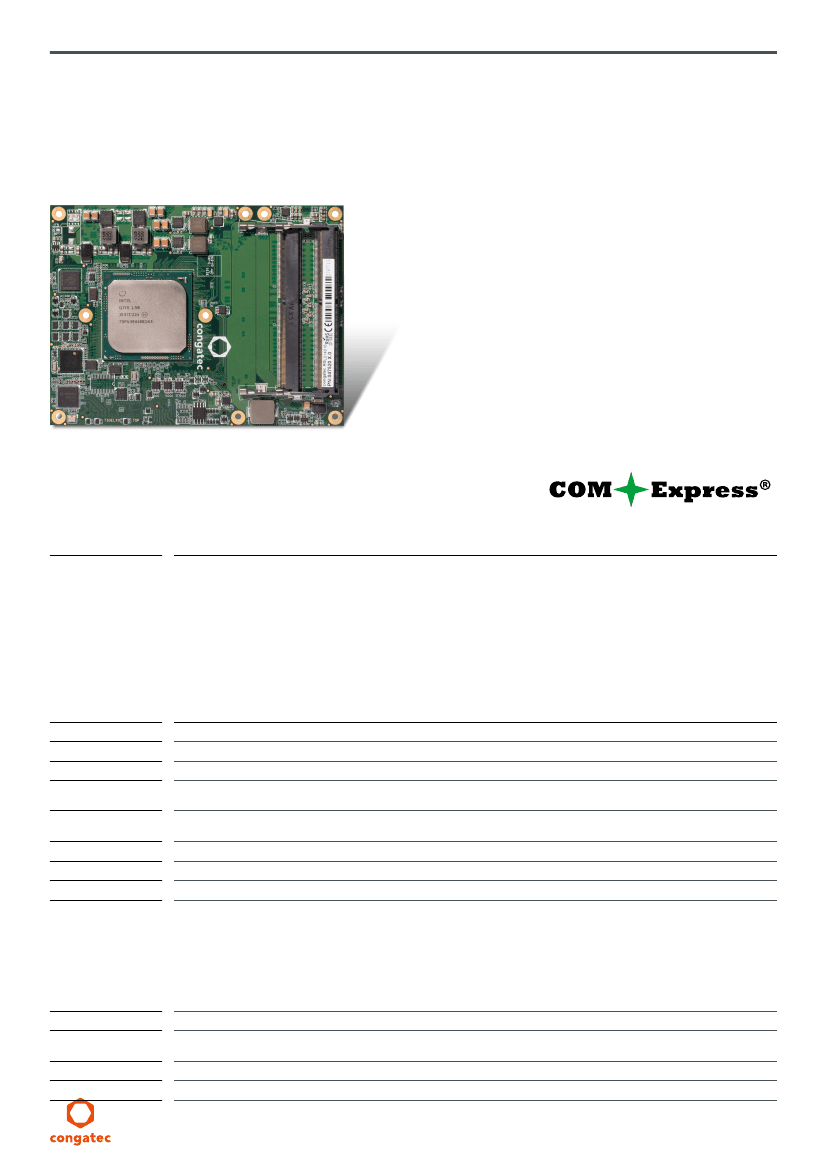

SERVER ON MODULE
conga-B7XD
-
COM Express Type 7
-
Up to Intel
®
Xeon
®
D 1577 with 16 Cores
and 24MB Cache
-
2x 10 Gigabit Ethernet KR Interface
-
32 PCI Express lanes
-
Industrial grade variants
-
Server Class Features
(RAS, QoS, Virtualization, Security, Managebility)
Formfactor
CPU
Formfactor COM Express
®
Basic | (95 x 125 mm) | Type 7 Connector Pinout
Commercial versions
Intel
®
Xeon
®
D1577
Intel
®
Xeon
®
D1567
Intel
®
Xeon
®
D1548
Intel
®
Xeon
®
D1527
Intel
®
Pentium
™
D1509
Intel
®
Pentium
™
D1508
Industrial versions
Intel
®
Xeon
®
D1559
Intel
®
Xeon
®
D1539
Intel
®
Xeon
®
D1529
Intel
®
Pentium
™
D1519
1.3 GHz
2.1 GHz
2.0 GHz
2.2 GHz
1.5 GHz
2.2 GHz
|
|
|
|
|
|
2.1 GHz
2.7 GHz
2.6 GHz
2.7 GHz
2.7 GHz
2.6 GHz
16 Cores
12 Cores
8 Cores
4 Cores
2 Cores
2 Cores
12 Cores
8 Cores
4 Cores
4 Cores
24MB cache
18MB cache
12MB cache
6MB cache
3MB cache
3MB cache
18 MB cache
12 MB cache
6MB cache
6MB cache
45W TDP
65W TDP
45W TDP
35W TDP
19W TDP
25W TDP
45W TDP
35W TDP
20W TDP
25W TDP
1.5 GHz Clock | 2.1 GHz (Burst)
1.6 GHz Clock | 2.2 GHz (Burst)
1.3 GHz Clock
1.5 GHz Clock | 2.1 GHz (Burst)
DRAM
Chipset
Ethernet
I/O Interfaces
congatec Board Controller
Embedded BIOS Features
Security
Power Management
Operating Systems
up to 3 SO-DIMM sockets for DDR4 memory modules up to 16 GByte each (48 GByte total) with 2400 MT/s | ECC and non-ECC supported
Integrated in SoC
1x Intel I210AT /IT Gigabit Ethernet Controller | 2x 10GbE with KR interface support - the 10GbE PHY must be implemented on the carrier board
24x PCIe Gen3 | 8x PCIe Gen2 | 4x USB 3.0 | 4x USB 2.0 | 2x SATA III (6Gb/s) | LPC | SPI | I²C bus (fast mode 400 kHz, multi-master) | 2x UART |
SMBus
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | I²C bus (fast mode, 400 kHz,
multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection
OEM Customization | Flash Update | based on AMI Aptio UEFI
Trusted Platform Module (TPM) | Hash and RSA algorithms | key lengths up to 2048 bits | real random number generator
ACPI 5.0 with battery support
Windows 64 bit OS
Microsoft
®
Windows Server 2016
Microsoft
®
Windows Server 2012 R2
Microsoft
®
Windows Server 2012
Microsoft
®
Windows Server 2008 R2 SP1
Microsoft
®
Windows 10 Enterprise
Microsoft
®
Windows 8.1 64b
Microsoft
®
Windows 7 64b
Open Source OS & Frameworks
RHEL 6.6 & 7.1
SuSE 11 SP4 & 12 SP1
Fedora 22
Ubuntu 14.10
CentOS 6.6 & 7.1
FreeBSD
Other
VMware
Hyper-V
Xen
ESXi
Power Consumption
Temperature
Humidity
Size
see user’s guide for full details | CMOS Battery Backup
Industrial:
Commercial :
Operating: -40 to +85°C
Operating: 0 to +60°C
Storage: -40 to +85°C
Storage: -40 to +85°C
Operating: 10 - 90% r. H. non cond.
95 x 125 mm (3.74” x 4.92”)
Storage: 5 - 95% r. H. non cond.
www.congatec.com

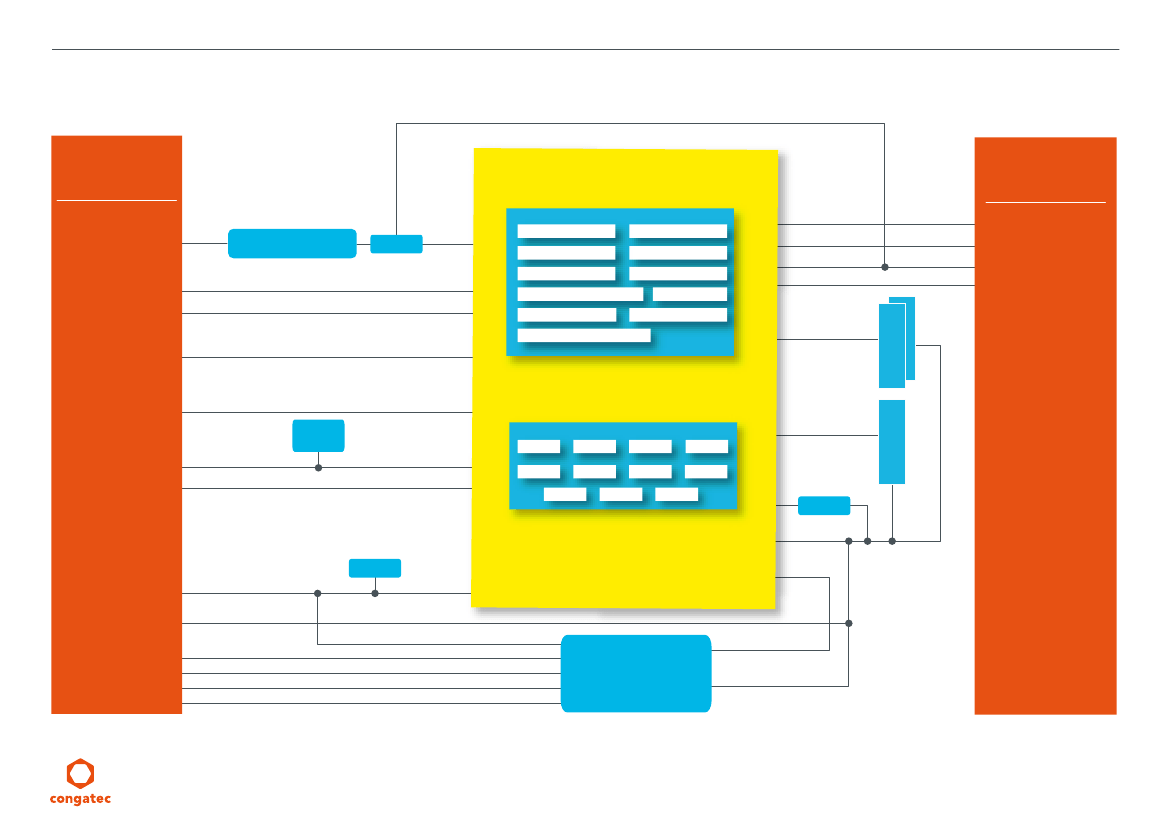

conga-B7XD
| Order Information
Article
conga-B7XD/X-D1577
PN
047500
Description
COM Express Type 7 Basic module with Intel
®
Xeon
®
D1577 processor with 16 Cores, 1.3GHz up to 2.1GHz core frequency, 24MB Cache
and 2133 MT/s dual channel DDR4 memory interface for up to 48GB. Features two 10GbE KR interface ports. 45W TDP, commercial
temperature range.
COM Express Type 7 Basic module with Intel
®
Xeon
®
D1567 processor with 12 Cores, 2.1GHz up to 2.7GHz core frequency, 18MB Cache
and 2133 MT/s dual channel DDR4 memory interface for up to 48GB. Features two 10GbE KR interface ports. 65W TDP, commercial
temperature range.
COM Express Type 7 Basic module with Intel
®
Xeon
®
D1548 processor with 8 Cores, 2.0GHz up to 2.6GHz core frequency, 12MB Cache
with and 2400 MT/s dual channel DDR4 memory interface for up to 48GB. Features two 10GbE KR interface ports. 45W TDP, commercial
temperature range.
COM Express Type 7 Basic module with Intel
®
Xeon
®
D1527 processor with 4 Cores, 2.2GHz up to 2.7GHz core frequency, 6MB Cache
with and 2133 MT/s dual channel DDR4 memory interface for up to 48GB. Features two 10GbE KR interface ports. 35W TDP, commercial
temperature range.
COM Express Type 7 Basic module with Intel
®
Pentium™ D1509 processor with 2 Cores, 1.5GHz core frequency, 3MB Cache and 1600
MT/s dual channel DDR4 memory interface for up to 48GB. 19W TDP, commercial temperature range.
COM Express Type 7 Basic module with Intel
®
Pentium™ D1508 processor with 2 Cores, 2.2GHz up to 2.6GHz core frequency, 3MB
Cache and 1866 MT/s dual channel DDR4 memory interface for up to 48GB. Features two 10GbE KR interface ports. 25W TDP,
commercial temperature range.
COM Express Type 7 Basic module with Intel
®
Xeon
®
D1559 processor with 12 Cores, 1.5GHz up to 2.1GHz core frequency, 18MB Cache
and 2133 MT/s dual channel DDR4 memory interface for up to 48GB. Features two 10GbE KR interface ports. 45W TDP, industrial
temperature range.
COM Express Type 7 Basic module with Intel
®
Xeon
®
D1539 processor with 8 Cores, 1.6GHz up to 2.2GHz core frequency, 12MB Cache
and 2133 MT/s dual channel DDR4 memory interface for up to 48GB. Features two 10GbE KR interface ports. 35W TDP, industrial
temperature range.
COM Express Type 7 Basic module with Intel
®
Xeon
®
D1529 processor with 4 Cores, 1.3GHz core frequency, 6MB Cache and 1600 MT/s
dual channel DDR4 memory interface for up to 48GB. 20W TDP, industrial temperature range.
COM Express Type 7 Basic module with Intel
®
Pentium™ D1519 processor with 4 Cores, 1.5GHz up to 2.1GHz core frequency, 6MB
Cache and 2133 MT/s dual channel DDR4 memory interface for up to 48GB. Features two 10GbE KR interface ports. 25W TDP, industrial
temperature range.
Standard active cooling solution for high performance COM Express Type 7 module conga-B7XD with integrated heat pipes, 70mm
radial 12V PWM fan and 30mm overall heat sink height. All standoffs are M2.5mm thread.
Standard active cooling solution for high performance COM Express Type 7 module conga-B7XD with integrated heat pipes, 70mm
radial 12V PWM fan and 30mm overall heat sink height. All standoffs are with 2.7mm bore hole.
Standard heatspreader for high performance COM Express Type 7 module conga-B7XD with integrated vapor chamber. All standoffs
are M2.5mm thread.
Standard heatspreader for high performance COM Express Type 7 module conga-B7XD with integrated vapor chamber. All standoffs
are with 2.7mm bore hole.
DDR4 SODIMM memory module with 2400 MT/s and 4GB RAM
DDR4 SODIMM memory module with 2400 MT/s and 8GB RAM
DDR4 SODIMM memory module with 2400 MT/s and 16GB RAM
conga-B7XD/X-D1567
047501
conga-B7XD/X-D1548
047502
conga-B7XD/X-D1527
047503
conga-B7XD/P-D1509
conga-B7XD/P-D1508
047504
047505
conga-B7XD/i-X-D1559
047520
conga-B7XD/i-X-D1539
047521
conga-B7XD/i-X-D1529
conga-B7XD/i-P-D1519
047522
047523
conga-B7XD/CSA-HP-T
conga-B7XD/CSA-HP-B
conga-B7XD/HSP-VC-T
conga-B7XD/HSP-VC-B
DDR4-SODIMM-2400 (4GB)
DDR4-SODIMM-2400 (8GB)
DDR4-SODIMM-2400 (16GB)
047530
047531
047532
047533
068790
068791
068792
Accessories
conga-X7/EVAL
COM Express Connector AB,
High Speed, Type 7
065420
41500615
Evaluation Carrier Board for COM Express Type 7 modules with up to four 10GbE SFP+ fiber/copper ports implemented via Intel Cortina
10GbE Phy’s. The carrier features an Aspeed AST2500 Board Management Controller (BMC).
COM Express Connector AB, High Speed (10Gbs), Type 7
© 2018 congatec AG. All rights reserved.
All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee
of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their
respective trademark holders. These trademark holders are not affiliated with congatec AG. Rev. April 26, 2018 MR
