RKF 30/13,5-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> RKF 30/13,5-01

RKF 30/13,5-01: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size1MB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RKF 30/13,5-01 Overview

Sensor Cables / Actuator Cables

RKF 30/13,5-01 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
RoHS	Details
Connector End A	7/8 in Circular
Connector End A Pin Count	3 Position
Connector End B	No Connector
Connector End B Pin Count	-
Gender	Female
Length	13.5 m
Current Rating	12 A
Voltage Rating	240 V
Number of Conductors	3 Conductor
Factory Pack Quantity	1

Preview

Download Datasheet

View All

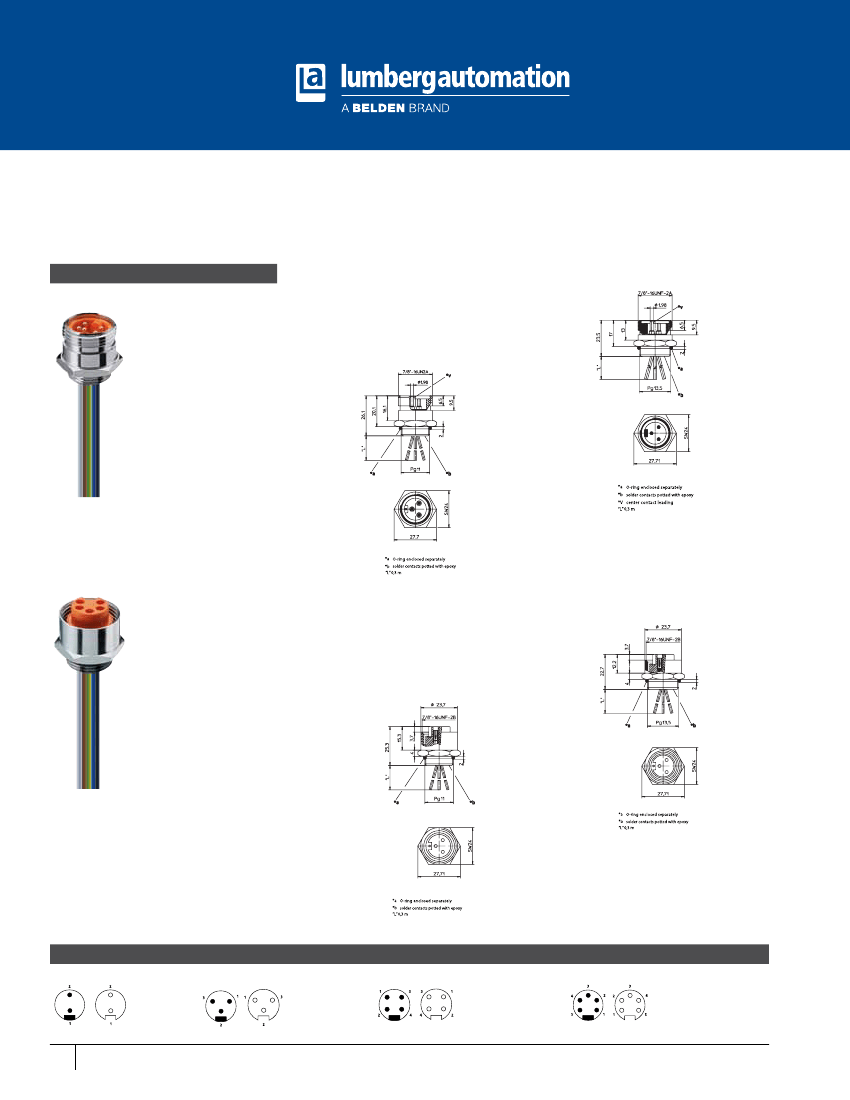

7/8” Mini-Receptacle Connectors, Front Mount, IEC Color Code

RSF.../11 | RSF.../13.5 | RKF..../11 | RKF.../13.5

Male, 2-, 3-, 4-, and 5-Pole

Receptacle connector, 7/8”-A body, male

2-, 3-, 4-, and 5-pole for front mounting,

assembled stranded wire, potted with epoxy,

chassis side thread PG11 or PG13.5, screw

connection (panel nut RSKF 11 or RSKF 13.5).

RSF.../11

RSF.../13.5

Female, 2-, 3-, 4-, and 5-Pole

Receptacle connector, 7/8”-A body, female

2-, 3-, 4-, and 5-pole for front mounting,

assembled stranded wire, potted with epoxy,

chassis side thread PG11 or PG13.5, screw

connection (panel nut RSKF 11 or RSKF 13.5).

RKF.../11

RKF.../13.5

Pin Assignments

Face Views, 7/8”-Male / Female

2 pole

brown

blue

3 pole

1 = brown

2 = green/yellow

(RSF...01)

black (RSF...05)

3 = blue

4 pole

brown

white

blue

black

5 pole

black

blue

green/yellow

brown

white

280

1-717-217-2299

www.lumberg-automationusa.com

RKF 30/13,5-01 Related Products

	RKF 30/13,5-01	RKF 50/11-04	RKF 40/11-02	RKF 30/11-05	RKF 50/13,5-04	RKF 30/11-01
Description	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
RoHS	Details	Details	Details	Details	Details	Details
Connector End A	7/8 in Circular	7/8 in Circular	7/8 in Circular	7/8 in Circular	7/8 in Circular	7/8 in Circular
Connector End A Pin Count	3 Position	5 Position	4 Position	3 Position	5 Position	3 Position
Connector End B	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector
Gender	Female	Female	Female	Female	Female	Female
Length	13.5 m	11 m	11 m	11 m	13.5 m	11 m
Current Rating	12 A	9 A	9 A	12 A	9 A	12 A
Voltage Rating	240 V	240 V	240 V	240 V	240 V	240 V
Number of Conductors	3 Conductor	5 Conductor	4 Conductor	3 Conductor	5 Conductor	3 Conductor
Factory Pack Quantity	1	1	-	1	1	1
