RKT/LED F 4-646/5M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> RKT/LED F 4-646/5M

Preview

RKT/LED F 4-646/5M: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size408KB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric Compare View All

RKT/LED F 4-646/5M Overview

Sensor Cables / Actuator Cables

RKT/LED F 4-646/5M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	M12
Connector End A Pin Count	4 Position
Connector End B	No Connector
Gender	Female
Length	5 m
Current Rating	4 A
Voltage Rating	10 VDC to 30 VDC
Color	Gray
Description/Function	Actuator / Sensor Cordset, Single-Ended, Female Straight Connector with LED Operation and Function Indicator with Self-Locking Thread and Molded Cable
Jacket Material	Polyvinyl Chloride (PVC)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

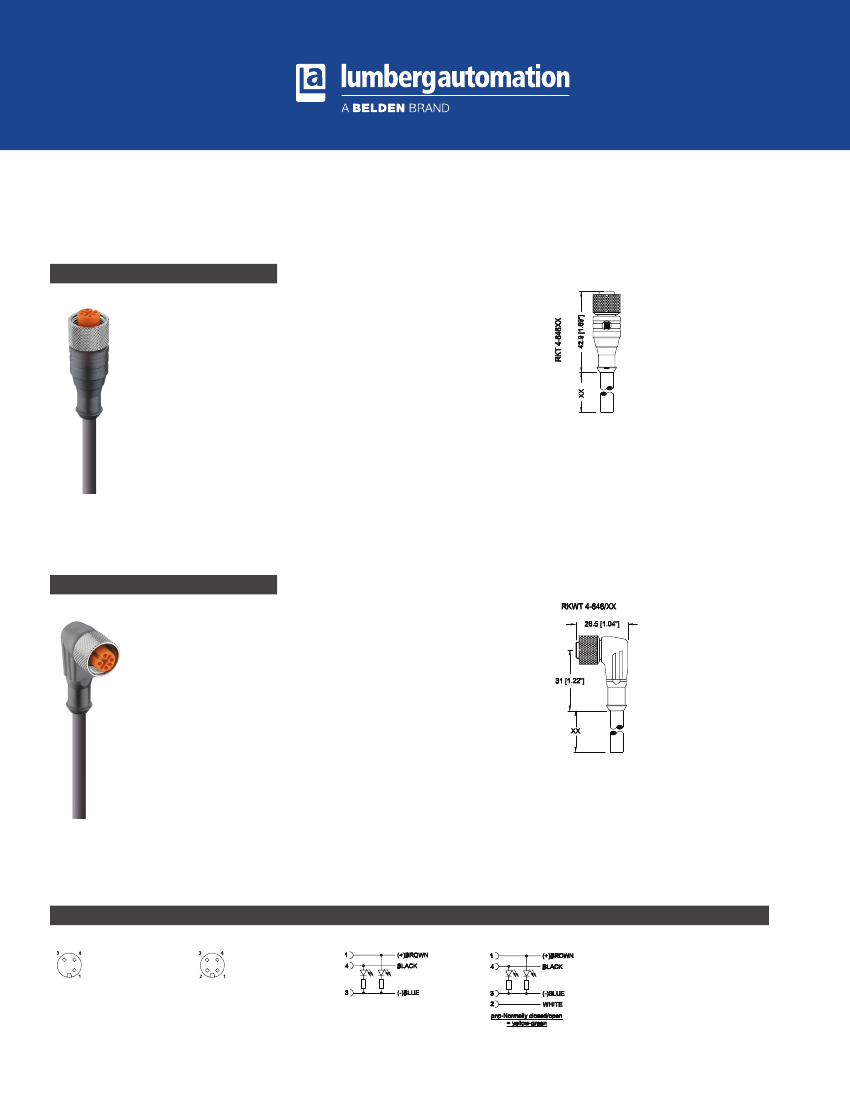

M12-Round-Plug Connector, Single-Ended Cordsets, with LED

RKT/LED

3- and 4-Poles

Actuator/sensor cordset, single-ended, M12,

3- and 4-poles, Female straight connector with

LED operation and function indicator with self-

locking thread and molded cable.

RKT/LED

RKWT/LED

Actuator/sensor cordset, single-ended, M12,

3- and 4-poles, female 90° connector with LED

operation and function indicator with self-

locking thread and molded cable.

RKWT/LED

Pin Assignments

M12 - Female

3 poles LED A

1=

3=

4=

brown

blue

black

Wiring Diagram

4 poles LED F

1=

2=

3=

4=

brown

white

blue

black

LED A

LED F

Data sheet | 08/03/16

Technical Support:

1-717-217-2289

www.lumberg-automationusa.com

RKT/LED F 4-646/5M Related Products

	RKT/LED F 4-646/5M	RKT/LED A 4-3-659/5M	RKT/LED F 4-646/2M	RKT/LED A 4-3-659/10M	RKT/LED F 4-646/10M	RKT/LED A 4-3-659/2M
Description	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Connector End A	M12	M12	M12	M12	M12	M12
Connector End A Pin Count	4 Position	3 Position	4 Position	3 Position	4 Position	3 Position
Connector End B	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector
Gender	Female	Female	Female	Female	Female	Female
Length	5 m	5 m	2 m	10 m	10 m	2 m
Current Rating	4 A	4 A	4 A	4 A	4 A	4 A
Voltage Rating	10 VDC to 30 VDC	10 VDC to 30 VDC	10 VDC to 30 VDC	10 VDC to 30 VDC	10 VDC to 30 VDC	10 VDC to 30 VDC
Color	Gray	Gray	Gray	Gray	Gray	Gray
Description/Function	Actuator / Sensor Cordset, Single-Ended, Female Straight Connector with LED Operation and Function Indicator with Self-Locking Thread and Molded Cable	Actuator / Sensor Cordset, Single-Ended, Female Straight Connector with LED Operation and Function Indicator with Self-Locking Thread and Molded Cable	Actuator / Sensor Cordset, Single-Ended, Female Straight Connector with LED Operation and Function Indicator with Self-Locking Thread and Molded Cable	Actuator / Sensor Cordset, Single-Ended, Female Straight Connector with LED Operation and Function Indicator with Self-Locking Thread and Molded Cable	Actuator / Sensor Cordset, Single-Ended, Female Straight Connector with LED Operation and Function Indicator with Self-Locking Thread and Molded Cable	Actuator / Sensor Cordset, Single-Ended, Female Straight Connector with LED Operation and Function Indicator with Self-Locking Thread and Molded Cable
Jacket Material	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)	Polyvinyl Chloride (PVC)
Factory Pack Quantity	1	1	1	1	1	1
