BB-LDVYCBL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> BB-LDVYCBL

BB-LDVYCBL: DescriptionSpecialized Cables Y CABLE FOR OBDII VEHICLES; CategoryWire/cable; File Size487KB，1 Pages; ManufacturerB+B SmartWorx; Environmental Compliance

Download Datasheet Parametric View All

BB-LDVYCBL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BB-LDVYCBL	-	-	View	Buy Now

BB-LDVYCBL Overview

Specialized Cables Y CABLE FOR OBDII VEHICLES

BB-LDVYCBL Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	B+B SmartWorx
Product Category	Specialized Cables
RoHS	Details
Product	Automotive Cables
Type	Automotive
Connector End A	Standard D-Sub
Connector End A Pin Count	16 Position
Connector End B	Standard D-Sub
Connector End B Pin Count	15 Position
Length	61 cm
Gender	Female / Male
Voltage Rating	300 V
Jacket Material	Polyvinyl Chloride (PVC)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

OBDII Y Cable

Model LDVYCBL

www.advantech-bb.com

FEATURES

OBDII vehicle Y cable

61cm (24 in) length

100% electrical tested

Voltage test: 300VDC, 10 ms

Connector resistance: 2 Ohm, maximum

RoHS compliant

CONNECTORS

Y Cable, OBDII/Vehicle

LENGTH

61 cm (24 in)

COLOR

Black

ORDERING INFORMATION

MODEL NO.

LDVYCBL

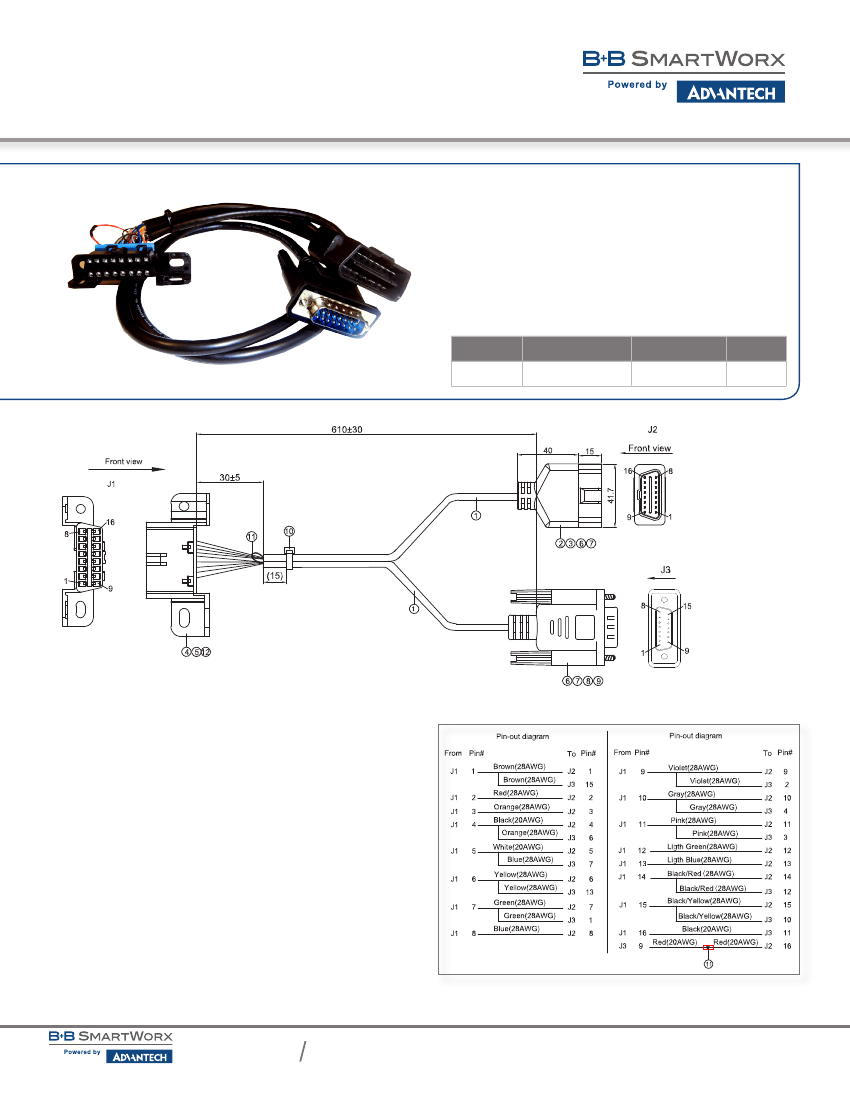

MECHANICAL DRAWING (above)

Units = mm

Cable - UL 2464, 20AWG(21.0.178TS)/3C(Red,Black,White),+28AWG(7

/0.127TS)/13C(Brown,Red,Orange,Yellow,Green,Blue,Violet,Gray,Pink,

LightGreen,LightBlue,Black/Red, BlackYellow)+Foil Jacket:Black.

OD: 6.8+/-0.25mm

Terminal - OBD male

Housing - OBD-16P female

Terminal - 6820603PS7

Housing - 3DA16FB-M

Pre-mold - transparent PE material

Over-mold - Shore A 90 black PVC

D-subminiature 15P male

Screw - 4-40#

Tie - 3*100 black tie

H/S/T - black heat shrink tube

Clip - 3DA16FB-C

Transparent PE Bag

All product specifications are subject to change without notice.

LDVYCBL_OBDII Cable_0118ds
