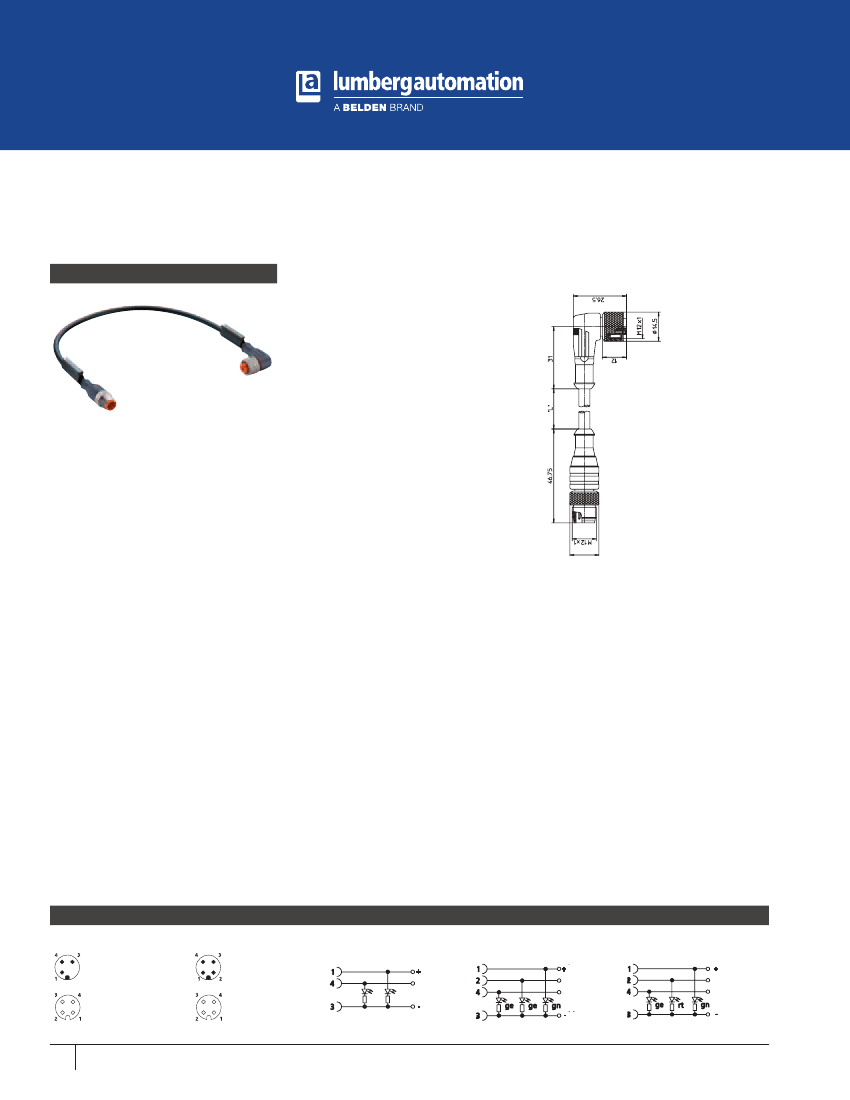

M12-Round-Plug Connector, Double-Ended Cordsets,
According to IEC 61076-2-101
RST-RKWT/LED
3- and 4-Poles
Actuator/sensor cordset, double-ended, M12,
3- and 4-poles, male straight to female 90°
connector with LED operation and function
indicator, self-locking thread and molded cable.
RST-RKWT/LED
Pin Assignments
M12 - Male
3 poles
1=
2=
3=
4=
brown
n.c.
blue
black
Wiring Diagrams / LED
4 poles
1=
2=
3=
4=
brown
white
blue
black
A
pnp Normally open yellow-green
braun/brown
schwarz/
black
blau/blue
P
pnp Normally closed/open
yellow-green
braun/brown
weiß/white
schwarz/
black
blau/blue
R
pnp Normally closed/open
yellow-red-green
braun/brown
weiß/white
schwarz/
black
blau/blue
156
1-717-217-2299
www.lumberg-automationusa.com
Cordsets
Double-Ended
Be Certain with Belden
M12-Round-Plug Connector, Double-Ended Cordsets, According to IEC 61076-2-101
RST-RKWT/LED
Technical Data
Environmental
Degree of protection
Operating temperature range
Mechanical
Housing / Molded body
Insert
Contact
Cable Specifications
IP 67 / NEMA 6P
-25°C (-13°F) / +80°C (+176°F)
TPU
TPU
RST: CuSn, pre-nickeled and
0.8 microns gold-plated
RKWT/LED: CuSn, pre-nickeled and
0.3 microns gold-plated
CuZn, nickel-plated
FKM (only RKWT/LED)
4A
10–30 V DC
32 V
> 10
9
Ω
3
Cable No. Outer Jacket
224
225
251
260
PUR,
halogen-free
PUR,
halogen-free
Conductor Size
3
x 0.34 mm
2
4
x 0.34 mm
2
Jacket Color
Black
Black
Orange
Orange
OD
.169” (4.3 mm)
.185” (4.7 mm)
.185” (4.7 mm)
.177” (4.5 mm)
PUR,
halogen-free
4
x 0.34 mm
2
welding spark proof
PUR,
halogen-free
3
x 0.34 mm
2
welding spark proof
Coupling nut
O-ring
Electrical
Nominal current at 40°C
Nominal voltage
Rated voltage
Insulation resistance
Pollution degree
Cordsets
Double-Ended
Part Number
RST 3-RKWT/LED A 4-3-224/...M
RST 3-RKWT/LED A 4-3-260/...M
RST 4-RKWT/LED P 4-225/...M
RST 4-RKWT/LED P 4-251/...M
RST 4-RKWT/LED R 4-251/...M
Pins
3
Outer Jacket
PUR, halogen-free
PUR, halogen-free
Standard Cable Lengths
0.3 M / 0.6 M / 1 M / 1.5 M / 2 M / 5 M
0.3 M / 0.6 M / 1 M / 1.5 M / 2 M / 5 M
0.3 M / 0.6 M / 1 M / 1.5 M / 2 M / 5 M
0.3 M / 0.6 M / 1 M / 1.5 M / 2 M / 5 M
0.3 M / 0.6 M / 1 M / 1.5 M / 2 M / 5 M
Characteristics
4
PUR, halogen-free,
weld spark proof
PUR, halogen-free
PUR, halogen-free,
weld spark proof
4
