RST 5-3-VAD 1A-1-3-241/1 M datasheet, PDF

Datasheet> All Categories > Wire/cable> RST 5-3-VAD 1A-1-3-241/1 M

RST 5-3-VAD 1A-1-3-241/1 M: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size170KB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com; Environmental Compliance

Download Datasheet Parametric View All

RST 5-3-VAD 1A-1-3-241/1 M Overview

Sensor Cables / Actuator Cables

RST 5-3-VAD 1A-1-3-241/1 M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
RoHS	Details
Connector End A	M12
Connector End A Pin Count	3 Position
Connector End B	No Connector
Gender	Male
Length	1 m
Current Rating	4 A
Voltage Rating	32 V
Coding	A Coded
Color	Orange
Description/Function	Double Ended Overmolded Cordset
Jacket Material	Polyurethane (PUR)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Actuator/Sensor Connectors

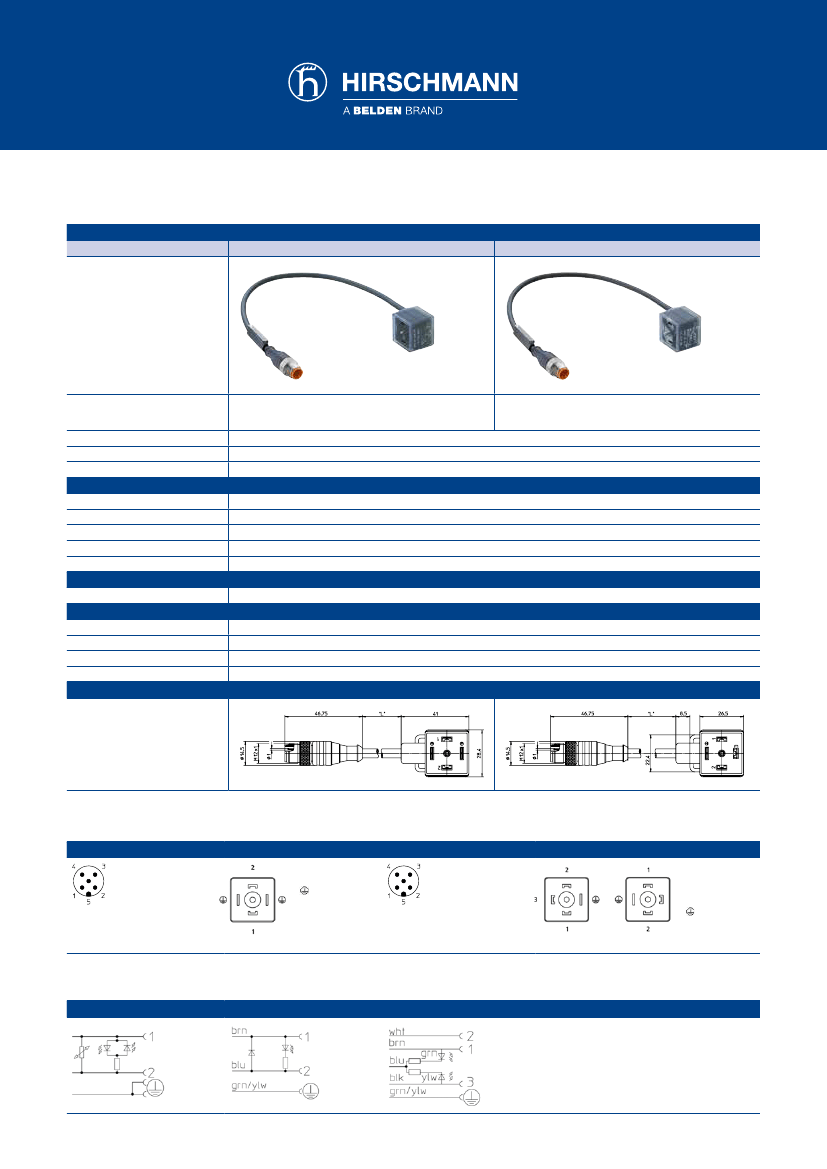

Double-ended Overmolded Cordset, M12 to Valve Connectors as per DIN EN 175301-803, Type A

Technical Information

Product Description

Order Designation

RST-VAD 1A | RST-VAD 1F

RST-VAD 3C-4-1 | RST-VAD 3C-4-2

Description

Actuator cordset, M12 male with self-locking screw coupling to valve Sensor cordset, M12 male with self-locking screw coupling to

connector as per DIN EN 175301-803, type A, 3-pin, protection circuit connector for pressure switch as per DIN EN 175301-803, type A,

5-pin, yellow LED and green operation indicator

using varistor (yellow LED), or recovery diode (VAD 1F)

Yes

IEC 61076-2-101 (M12), DIN EN 175301-803 (valve connector)

–

-25 °C to +80 °C (connectors), mind cable temperature range

TPU

RST: TPU, VAD: PBT

RST: CuZn, nickel underlay and gold-plated, VAD: CuZn, nickel-plated and tin-plated

CuZn, nickel-plated

IP67 (only when mated with Hirschmann/Lumberg counterparts)

≤

5 mΩ

32 V (varistor: 47 V at 0.1 mA)

RoHS-Compliant (2011/65/EU)

(Construction Type) Standard

Approvals

Technical Data

Ambient Temperature

Housing Material/Grip

Contact Holder Material

Contact Material/Surface Finish

Screw Coupling Material

Mechanical Data

Degree of Protection

Electrical Data

Contact Resistance

Rated Voltage

Rated Current

Pollution Degree

Technical Drawing

L = Standard length of cable

Pin Assignment

3-pin

1 = n.c.

2 = n.c.

3 = blue

4 = brown

5 = green/yellow

VAD 1A/VAD 1F

1 = brown

2 = blue

= green/yellow

5-pin

1 = brown

2 = white

3 = blue

4 = black

5 = green/yellow

VAD 3C-4-1/ VAD 3C-4-2

1 = brown

2 = white

3 = black

LED = blue

= green/yellow

Circuit Diagram

VAD 1A

VAD 1F

VAD 3C

Data sheet | 08/23/16

Technical Support:

1-717-217-2289

www.hirschmann.com
