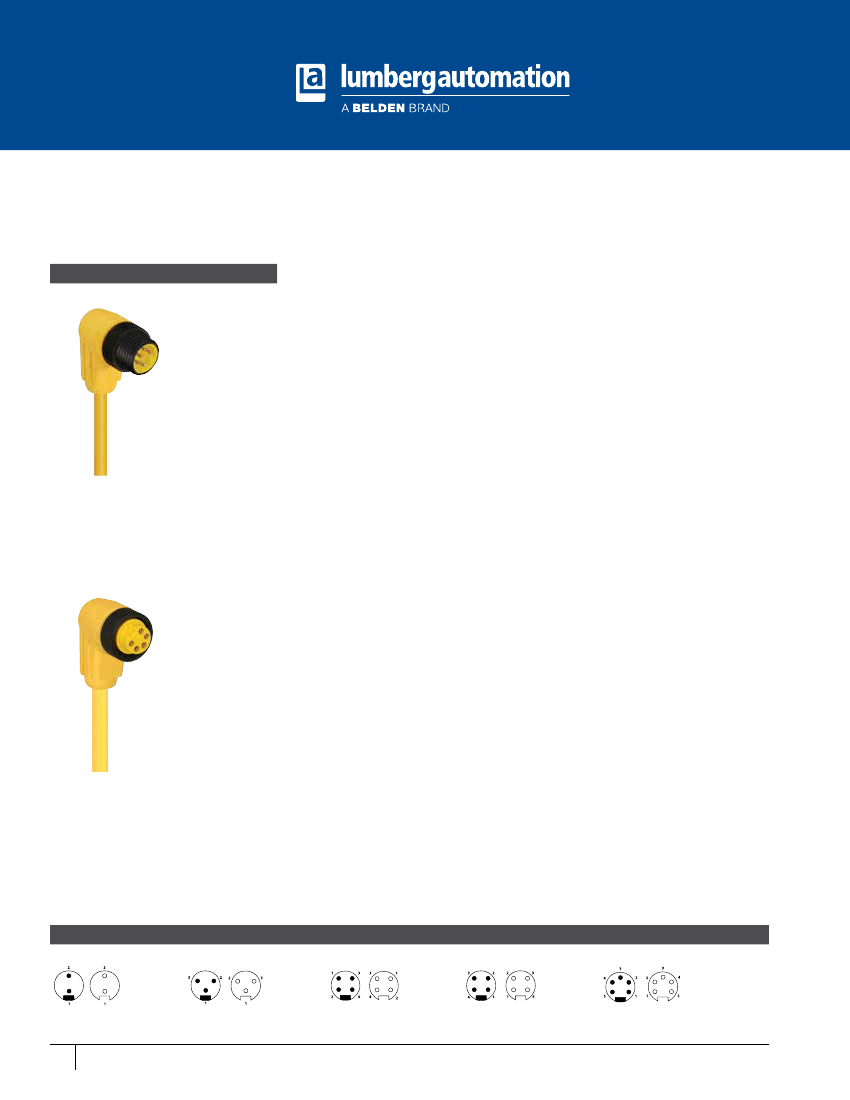

Mini, 7/8”-Round-Plug Connector, Single-Ended Cordsets,
IEC Color Code
RSW 20...50 | RKW 20...50
2-, 3-, 4-, and 5-Poles
Mini, 7/8” single-ended cordsets, male 90°,
2-, 3-, 4-, and 5-poles with external threads
and molded cable, IEC color code.
RSW
Mini, 7/8” single-ended cordsets, female 90°,
2-, 3-, 4-, and 5-poles with internal threads and
molded cable, IEC color code.
RKW
Pin Assignments
Mini, 7/8” - Male / Female
2 poles
1=
2=
brown
blue
3 poles
1=
2=
3=
black
brown
blue
4 poles
1=
2=
3=
4=
Euro standard wiring
for active I/O modules
brown
white
blue
black
Standard wiring for
general US market
1=
2=
3=
4=
black
blue
brown
white
5 poles
1=
2=
3=
4=
5=
black
blue
yellow w/green tr.
brown
white
144
Technical Support:
1-717-217-2289
www.lumberg-automationusa.com
Cordsets
Single-Ended
Be Certain with Belden
Mini, 7/8”-Round-Plug Connector, Single-Ended Cordsets, IEC Color Code
RSW 20...50 | RKW 20...50
Technical Data
Environmental
Degree of protection
Operating temperature range
Mechanical
Housing / Molded body
Insert
Contact
Coupling nut
Electrical
Current rating
Voltage rating
IP 67 / NEMA 6P
-40°C (-40°F) / +90°C (194°F)
Cordsets
Single-Ended
TPU, yellow
TPU, yellow
CuZn, gold over silver plated
Aluminum, anodized black
2-3 pole: 8 A
4-5 pole: 5.6 A
300 V
Cable Specifications - IEC Color Code
Cable No.
603
731
645
637
602
794
Outer Jacket
PVC
TPE
PUR
TPE
PUR
TPE
Gauge
18AWG
18AWG
18AWG
18AWG
18AWG
18AWG
Jacket
Color
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
OD
.290” (7.4 mm)
.284” (7.2 mm)
.220” (5.6 mm)
.280” (7.1 mm)
.230” (5.8 mm)
.304” (7.7 mm)
Temperature Rating
-40°C (-40°F) to +105°C (221°F)
-50°C (-58°F) to +90°C (194°F)
-40°C (-40°F) to +80°C (176°F)
-25°C (-40°F) to +105°C (221°F)
-40°C (-40°F) to +80°C (176°F)
-50°C (-58°F) to +90°C (194°F)
Agency Approvals
UL: AWM 2661 / CSA: AWM I/II A/B
UL: PLTC / CSA: AWM I/II A/B
UL: AWM 20233 / CSA: AWM I/II A/B
UL: PLTC / CSA: AWM I/II A/B
UL: AWM 20233 / CSA: AWM I/II A/B
UL: PLTC / CSA: AWM I/II A/B
Continuous flex rating and suitable for general C-track usage. 1 million cycles at minimum bend radius 10X cable diameter.
Part Number
RSW 20-603/...M
RSW 30-731/...F
RSW 30-645/...M
RSW 40-637/...F
RSW 40-602/...M
RSW 50-794/...F
RKW 20-603/...M
RKW 30-731/...F
RKW 30-645/...M
RKW 40-637/...F
RKW 40-602/...M
RKW 50-794/...F
Pins
2
3
Outer Jacket Standard Cable Lengths
PVC
TPE
PUR
2 M / 5 M / 10 M
6 F / 12 F / 15 F / 20 F / 30 F
2 M / 5 M / 10 M
6 F / 12 F / 15 F / 20 F / 30 F
2 M / 5 M / 10 M
6 F / 12 F / 15 F / 20 F / 30 F
Characteristics
4
TPE
PUR
5
TPE
www.lumberg-automationusa.com
Technical Support:
1-717-217-2289
145
