RKT 8-282/15 M Overview

Sensor Cables / Actuator Cables

RKT 8-282/15 M Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerLumberg Automation
Product CategorySensor Cables / Actuator Cables
RoHSDetails
Connector End AM12
Connector End A Pin Count8 Position
Connector End BNo Connector
GenderFemale
Length15 m
Current Rating2 A
Voltage Rating36 V
ColorBlack
Description/FunctionActuator / Sensor Cordset, Single-Ended, Female Straight Connector with Self-Locking Thread and Molded Cable
Jacket MaterialPolyurethane (PUR)
Factory Pack Quantity1

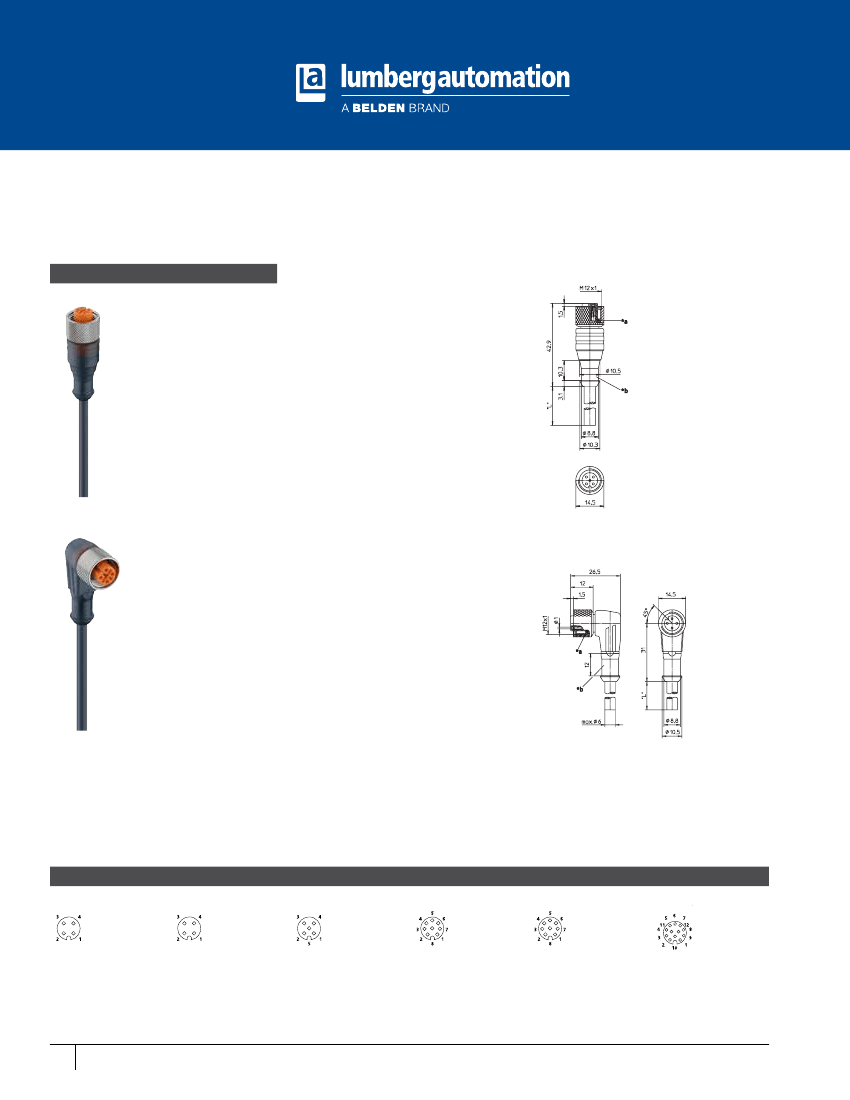

M12-Round-Plug Connector, Single-Ended Cordsets,
According to IEC 61076-2-101
RKT | RKWT
3-, 4-, 5-, 8-, and 12-Poles
Actuator/sensor cordset, single-ended, M12,
3-, 4-, 5-, 8-, and 12-poles, female straight
connector with self-locking thread and
molded cable.
RKT
*a O-ring
* b Hose mounting
Actuator/sensor cordset, single-ended, M12,
3-, 4-, 5-, 8-, and 12-poles, female 90°
connector with self-locking thread and
molded cable.
RKWT
*a O-ring
* b Hose mounting
Pin Assignments
M12 - Male
3 poles
1=
2=
3=
4=
brown
N.C.
blue
black
4 poles
1=
2=
3=
4=
brown
white
blue
black
5 poles
1 = brown
2 = white
3 = blue
4 = black
5 = green/yellow
(RST 5-56/...M = grey
6 poles
1=
2=
3=
4=
5=
6=
7=
8=
white
green
yellow
grey
brown
n.c.
blue
n.c.
8 poles
1=
2=
3=
4=
5=
6=
7=
8=
white
brown
green
yellow
grey
pink
blue
shield
12 poles
1=
2=
3=
4=
5=
6=
7=
8=
9=
10 =
11 =
12 =
brown
blue
white
green
pink
yellow
black
grey
red
violet
grey/pink
red/blue
88
1-717-217-2299
www.lumberg-automationusa.com
