RST 4 U-RKT 4 U-689/15F datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> RST 4 U-RKT 4 U-689/15F

Preview

RST 4 U-RKT 4 U-689/15F: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size2MB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric View All

RST 4 U-RKT 4 U-689/15F Overview

Sensor Cables / Actuator Cables

RST 4 U-RKT 4 U-689/15F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	1/2 in-20
Connector End A Pin Count	4 Position
Connector End B	1/2 in-20
Connector End B Pin Count	4 Position
Gender	Male / Female
Length	15 ft
Current Rating	4 A
Voltage Rating	250 V
Color	Yellow
Description/Function	Actuator / Sensor Cordsets, Double-Ended, Male to Female Straight Connector, Dual Keyway, Automotive Color Code
Jacket Material	Polyvinyl Chloride (PVC)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

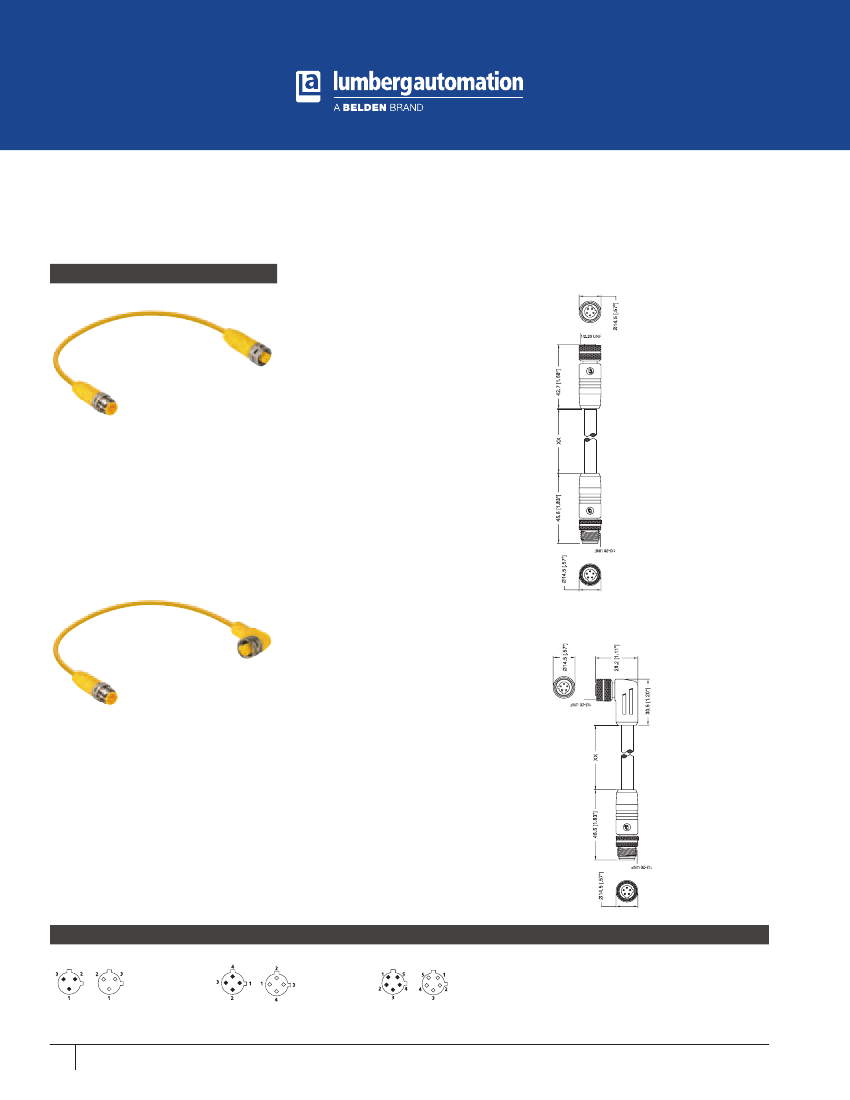

1/2”-20-Round-Plug Connector, Double-Ended Cordsets,

Automotive Color Code

RST...U-RKT ...U | RST..U-RKWT...U

3, 4-, and 5-Poles

1/2”-20 actuator/sensor cordsets, double-ended,

3-, 4- and 5-Poles, male to female straight

connector, dual keyway, 18 and 22 gauge,

Automotive color code.

RST...U-RKT...U

1/2”-20 actuator/sensor cordsets, double-ended,

3-, 4- and 5-Poles, male to female 90°

connector, dual keyway, 18 and 22 gauge,

Automotive color code.

RST...U-RKWT...U

Pin Assignments

1/2”-20 - Male / Female

3 poles

1=

2=

3=

green

red/black

red/white

4 poles

1=

2=

3=

4=

red/black

red/white

red

green

5 poles

1=

2=

3=

4=

5=

red/white tr.

red

green

red/yel tr.

red/blk tr.

162

1-717-217-2299

www.lumberg-automationusa.com
