REV.
5
ECN NO.
6
DATE
SIGN
7
DESCRIPTION
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
E
4.2
QC
L(mm)
20.7
T
A
L
W
CONFIDENTIAL
2014-01-09
R&D DEPT.
Cable
2
8AP-02AFFM-SR7000
Color: Black
1
QC
D
21.2
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
8AP-02AFFM-SR7AXX
11.0
C
XX: 01~99Meters
01: 01Meter
02: 02Meter
:
:
99: 99Meters
Cable Length(L): 01~99Meters
Conn.
B
1
2
Pin Assignments
Front View
2
1
Conn.
TITLE
Red 紅
Black 黑
Wire Color
Pin Out

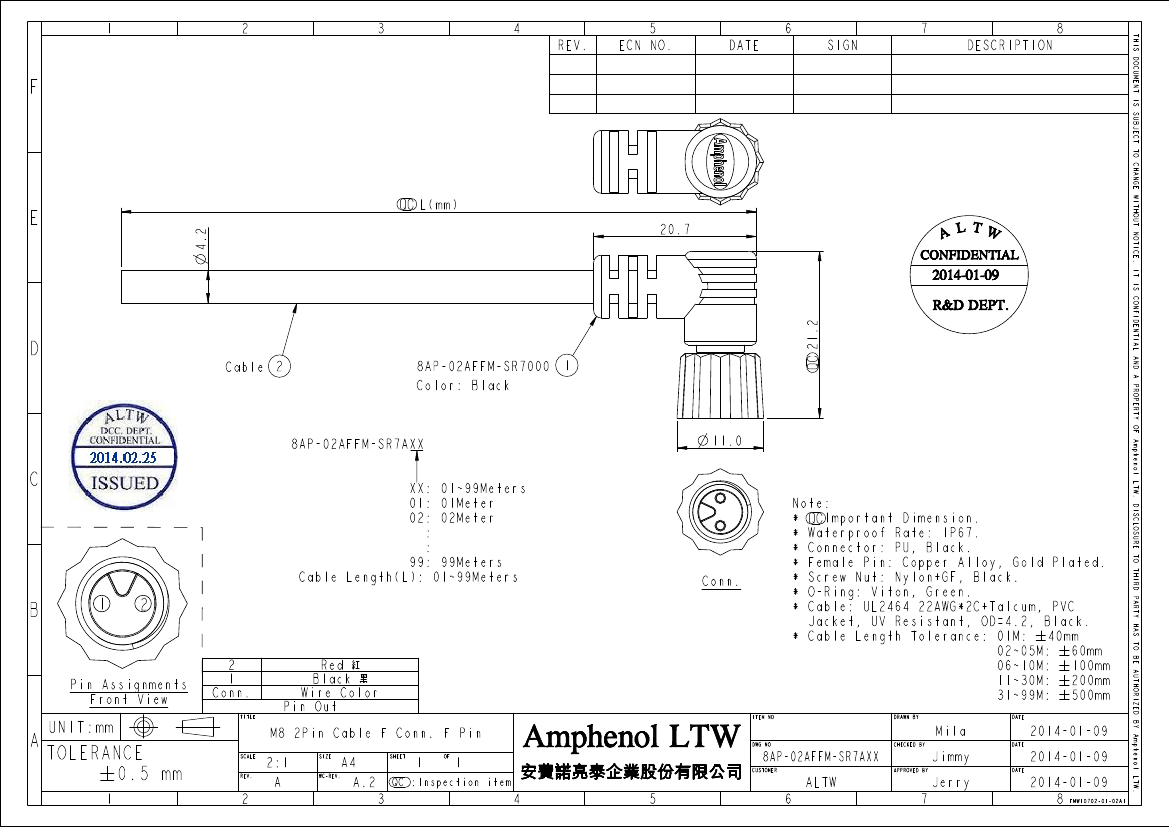

M8 2Pin Cable F Conn. F Pin
Note:
* Important Dimension.
QC
* Waterproof Rate: IP67.
* Connector: PU, Black.
* Female Pin: Copper Alloy, Gold Plated.
* Screw Nut: Nylon+GF, Black.
* O-Ring: Viton, Green.
* Cable: UL2464 22AWG*2C+Talcum, PVC
Jacket, UV Resistant, OD=4.2, Black.
* Cable Length Tolerance: 01M: # 40mm
02~05M: # 60mm
06~10M: # 100mm
11~30M: # 200mm
31~99M: # 500mm
ITEM NO
DRAWN BY
DATE
A
UNIT:mm
TOLERANCE
# 0.5 mm
1
SCALE
2:1
A
SIZE
A4
A.2
3
SHEET
1
OF
Amphenol LTW
4
5
Mila
DWG NO
CHECKED BY
DATE
2014-01-09
2014-01-09
DATE
Amphenol LTW.
1
8AP-02AFFM-SR7AXX
CUSTOMER
APPROVED BY
Jimmy
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
2
2014-01-09
8
FMW10702-01-02A1
