OK204-25-OY-V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> OK204-25-OY-V

OK204-25-OY-V: DescriptionOLED Displays & Accessories OLED 20 X 4 YELLOW WIDE VOLTAGE POWER; CategoryLED optoelectronic/LED; File Size3MB，45 Pages; ManufacturerMatrix Orbital; Websitehttps://www.matrixorbital.com; Environmental Compliance

Download Datasheet Parametric View All

OK204-25-OY-V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	OK204-25-OY-V	-	-	View	Buy Now

OK204-25-OY-V Overview

OLED Displays & Accessories OLED 20 X 4 YELLOW WIDE VOLTAGE POWER

OK204-25-OY-V Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Matrix Orbital
Product Category	OLED Displays & Accessories
RoHS	Details
Character Count x Line	20 x 4
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

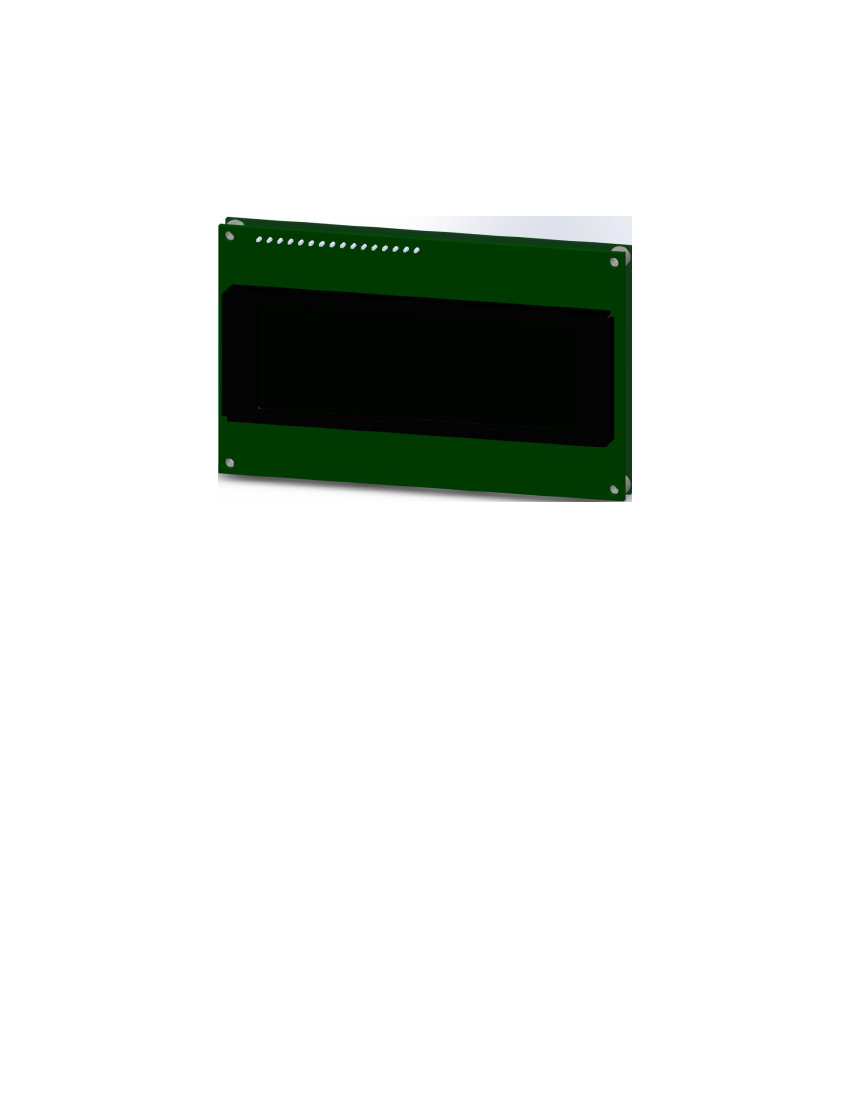

OK204-25

Including OK204-25-422, OK204-25-USB.

Technical Manual

Revision 1.2

PCB Revision: 3.0 or Higher

Firmware Revision: 7.3 or Higher

Contents

Revision History ............................................................................................................................................ 1

Contents ........................................................................................................................................................ 2

Introduction .................................................................................................................................................. 4

Quick Connect Guide .................................................................................................................................... 5

Standard Module ...................................................................................................................................... 5

Recommended Parts ............................................................................................................................. 5

Serial Connections................................................................................................................................. 6

C Connections ..................................................................................................................................... 7

USB Module .............................................................................................................................................. 8

Recommended Parts ............................................................................................................................. 8

USB Connections ................................................................................................................................... 9

RS422 Module ......................................................................................................................................... 10

RS422 Connections ............................................................................................................................. 10

Software ...................................................................................................................................................... 11

Hyperterminal ......................................................................................................................................... 11

uProject ................................................................................................................................................... 12

Application Notes.................................................................................................................................... 12

Hardware .................................................................................................................................................... 13

Standard Model ...................................................................................................................................... 13

Communication/Power Header .......................................................................................................... 13

Serial DB9 Connector .......................................................................................................................... 13

Power Through DB9 Jumper ............................................................................................................... 14

Protocol Select Jumpers ...................................................................................................................... 14

USB Model .............................................................................................................................................. 15

Mini USB Connector ............................................................................................................................ 15

Alternate USB Header ......................................................................................................................... 15

Alternate Power Connector ................................................................................................................ 15

RS422 Model ........................................................................................................................................... 16

RS422 Header ...................................................................................................................................... 16

Alternate Power Connector ................................................................................................................ 16

Common Features................................................................................................................................... 17

General Purpose Outputs ................................................................................................................... 17

Dallas One-Wire Connector ................................................................................................................ 17

Keypad Header .................................................................................................................................... 18

Power ...................................................................................................................................................... 19

Display ..................................................................................................................................................... 19

OLED Burn-In ........................................................................................................................................... 19

Communication ....................................................................................................................................... 20

Manual Override ..................................................................................................................................... 20

Commands .................................................................................................................................................. 21

Communications ............................................................................................................................. 21

Text ................................................................................................................................................. 22

Special Characters ........................................................................................................................... 24

General Purpose Output ................................................................................................................. 27

Dallas One-Wire .............................................................................................................................. 28

Keypad............................................................................................................................................. 29

Display Functions ............................................................................................................................ 31

Data Security ................................................................................................................................... 31

Miscellaneous ................................................................................................................................. 32

Appendix ..................................................................................................................................................... 34

Command Summary ............................................................................................................................... 34

Character Sets ......................................................................................................................................... 36

Block Diagram ......................................................................................................................................... 37

Environmental Specifications.................................................................................................................. 37

Electrical Tolerances ............................................................................................................................... 37

Dimensional Drawings ............................................................................................................................ 38

Optical Characteristics ............................................................................................................................ 41

Ordering ...................................................................................................................................................... 41

Part Numbering Scheme ......................................................................................................................... 41

Options .................................................................................................................................................... 41

Accessories .............................................................................................................................................. 42

Definitions ................................................................................................................................................... 44

Contact ........................................................................................................................................................ 44
