20-9170-068-009-002: DescriptionPCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

20-9170-068-009-002 Overview

PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

20-9170-068-009-002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1937243037
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	4.48
Other features	SSSR 0.0MM OFFSET,TAPE & REEL
body width	0.13 inch
subject depth	0.472 inch
body length	2.126 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Terminal pitch	0.64 mm
Termination type	SURFACE MOUNT
Total number of contacts	68

Preview

Download Datasheet

View All

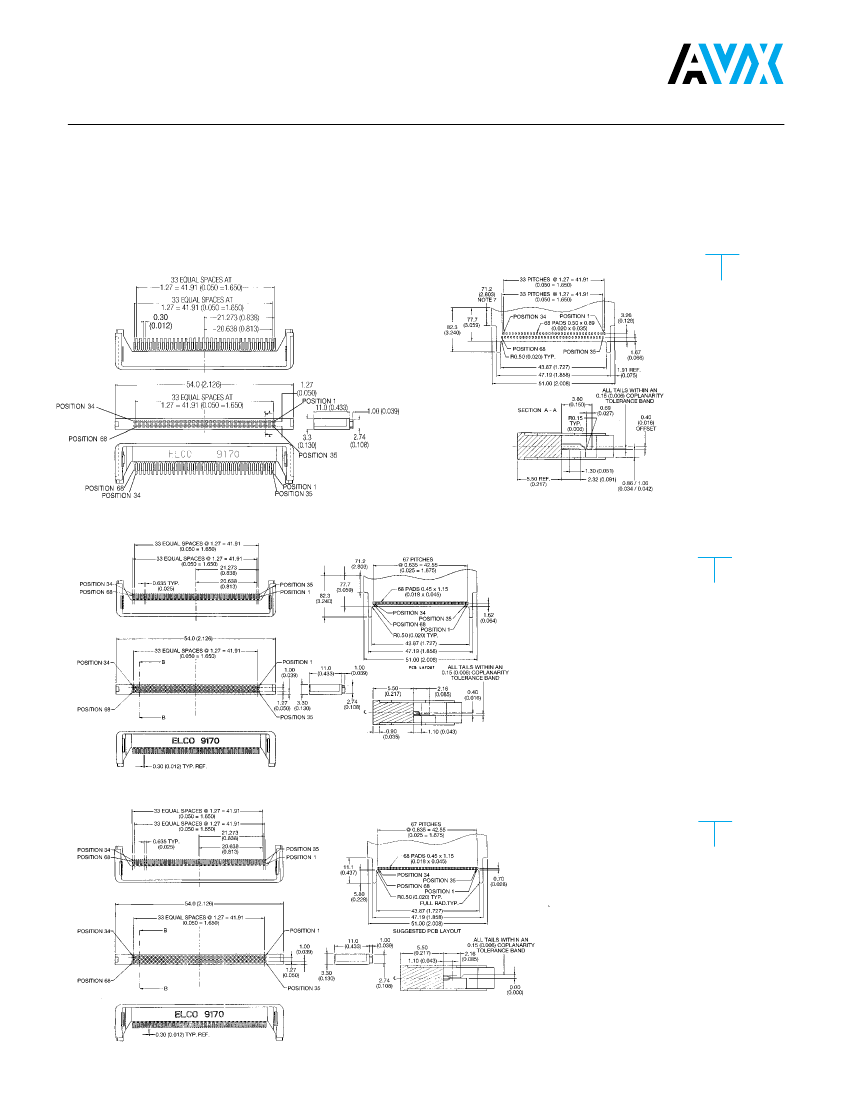

PCMCIA PC Memory Card Connectors

Series 9170 PCMCIA Type II Frameless Card Kit

68 Position Receptacle

FEATURES

•

Design to fit Frameless Kit Cover Type II

Connector held in card by cover location clip

High temperature materials meet solder reflow requirements

Palladium nickel plating provides maximum contact wear

•

Incorporates 5v keying features

3.3v keying features can be offered

68 POSITION RECEPTACLE CONNECTOR

SSDR 0.40mm Offset 5.0 Volt

HOW TO ORDER

20

9170

068

001

XXX

001=Tray - 576

002=Tape & Reel - 576

003=Tube - 144

SSSR 0.40mm Offset 5.0 Volt

HOW TO ORDER

20

9170

068

004

XXX

001=Tray - 576

002=Tape & Reel - 576

003=Tube - 144

SSSR 0.00mm Offset 5.0 Volt

HOW TO ORDER

20

9170

068

009

XXX

001=Tray - 576

002=Tape & Reel - 576

003=Tube - 144

22

ELCO

20-9170-068-009-002 Related Products

	20-9170-068-009-002	20-9170-068-001-002	20-9170-068-001-003	20-9170-068-004-001	20-9170-068-004-002	20-9170-068-009-001	20-9170-068-009-003	20-9170-068-001-001	20-9170-068-004-003
