L-1002: Description1.1x3.4mm RECTANGULAR SOLID LAMPS; File Size134KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com

Download Datasheet Compare View All

L-1002 Overview

1.1x3.4mm RECTANGULAR SOLID LAMPS

Preview

Download Datasheet

View All

1.1x3.4mm RECTANGULAR SOLID LAMPS

L-1002HD BRIGHT RED

L-1002ID HIGH EFFICIENCY RED

L-1002GD GREEN

L-1002YD YELLOW

Features

LOW

Description

The Bright Red source color devices are made with

Gallium Phosphide Red Light Emitting Diode.

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

AND RUGGED.

UNIFORMITY OF LIGHT OUTPUT.

FOR LEVEL INDICATOR.

POWER CONSUMPTION.

RELIABLE

EXCELLENT

SUITABLE

LONG

LIFE-SOLID STATE RELIABILITY.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: KDA0279

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: SEP/14/2001

DRAWN: J.X.FU

PAGE: 1 OF 5

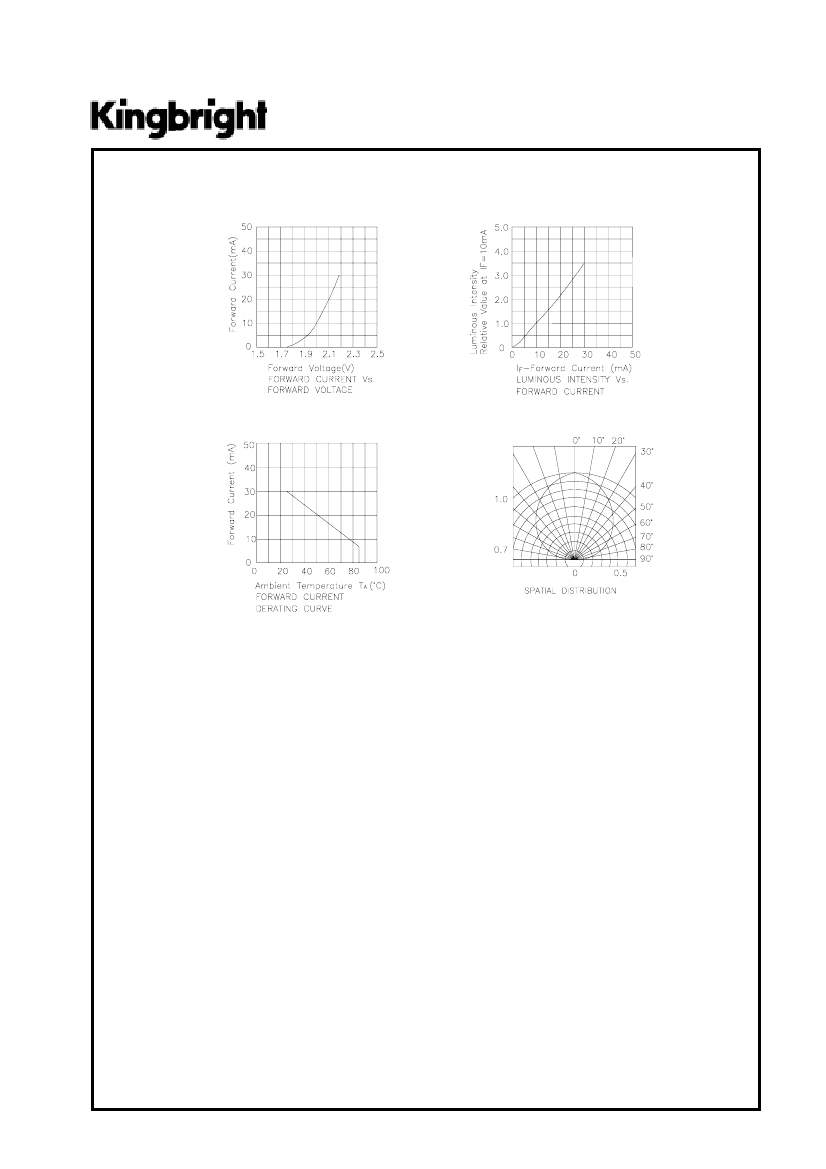

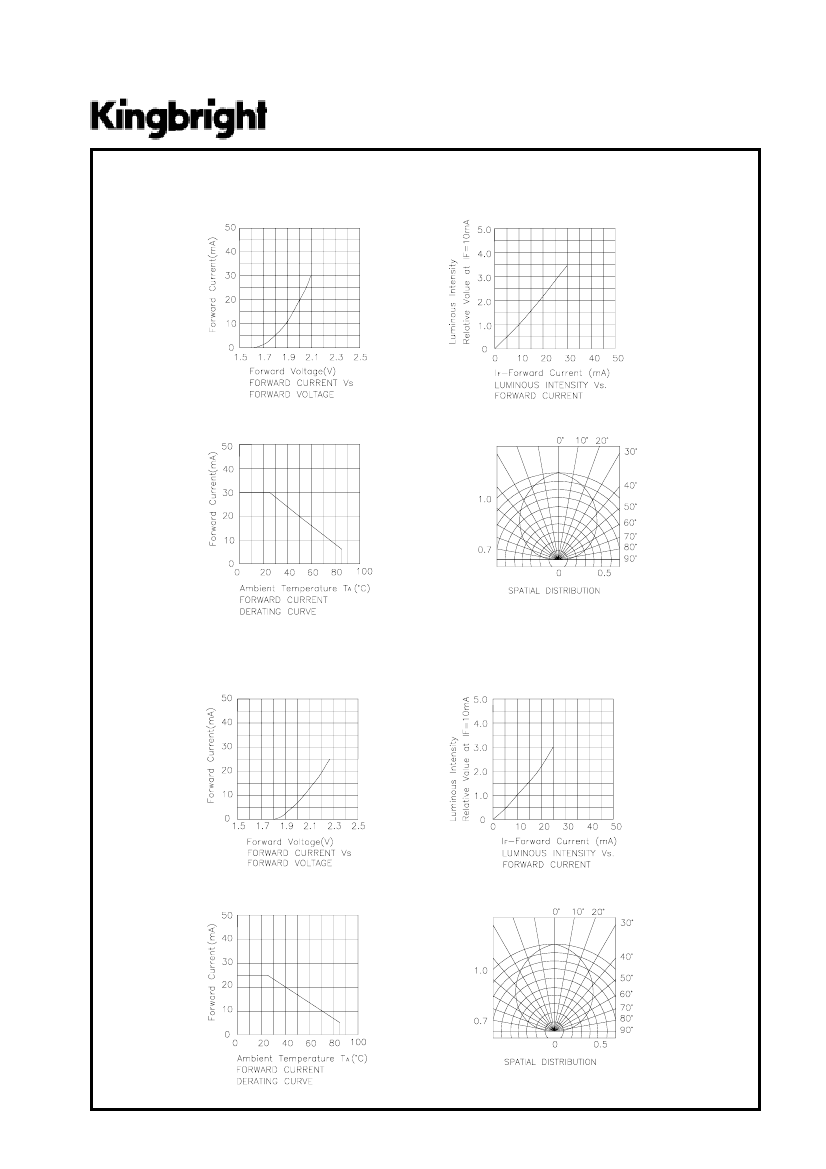

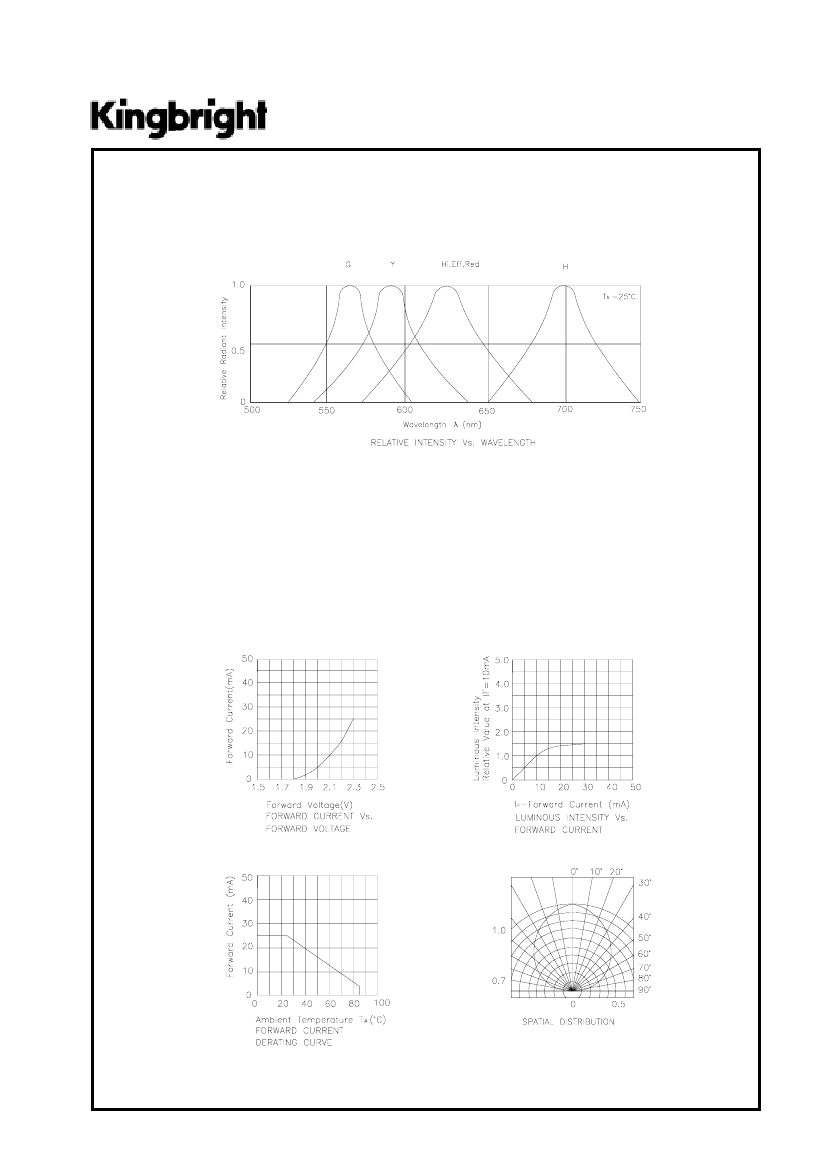

L-1002 Related Products

	L-1002	L-1002HD	L-1002ID	L-1002GD	L-1002YD
Description	1.1x3.4mm RECTANGULAR SOLID LAMPS	1.1x3.4mm RECTANGULAR SOLID LAMPS	1.1x3.4mm RECTANGULAR SOLID LAMPS	1.1x3.4mm RECTANGULAR SOLID LAMPS	1.1x3.4mm RECTANGULAR SOLID LAMPS
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Reach Compliance Code	-	compli	compli	compli	compli
ECCN code	-	EAR99	EAR99	EAR99	EAR99
Other features	-	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	-	BRIGHT RED	HIGH EFFICIENCY RED	GREEN	YELLOW
color@wavelength	-	Red	Red	Gree	Yellow
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	-	0.025 A	0.03 A	0.025 A	0.03 A
Maximum forward voltage	-	2.8 V	2.8 V	2.8 V	2.8 V
Lens type	-	DIFFUSED RED	DIFFUSED RED	DIFFUSED	DIFFUSED
minimum luminous intensity	-	100 cd	100 cd	100 cd	100 cd
Nominal luminous intensity	-	0.7 mcd	3.0 mcd	2.5 mcd	2.5 mcd
Installation features	-	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	-	1	1	1	1
Number of terminals	-	2	2	2	2
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	-	3.5 mm	3.5 mm	3.5 mm	3.5 mm
method of packing	-	BULK	BULK	BULK	BULK
peak wavelength	-	700 nm	627 nm	565 nm	590 nm
shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	-	3.4 mm	3.4 mm	3.4 mm	3.4 mm
surface mount	-	NO	NO	NO	NO
Terminal pitch	-	2.3 mm	2.3 mm	2.3 mm	2.3 mm
perspective	-	110 deg	110 deg	110 deg	110 deg
Maker	-	-	Kingbright	Kingbright	Kingbright
