ASB-R 8/LED 5-4-331/5 M datasheet, PDF

Datasheet> All Categories > Wire/cable> ASB-R 8/LED 5-4-331/5 M

ASB-R 8/LED 5-4-331/5 M: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size638KB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric Compare View All

ASB-R 8/LED 5-4-331/5 M Overview

Sensor Cables / Actuator Cables

ASB-R 8/LED 5-4-331/5 M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	M12
Connector End A Pin Count	5 Position
Connector End B	No Connector
Connector End B Pin Count	-
Gender	Female
Length	5 m
Current Rating	8 A
Voltage Rating	30 V
Number of Conductors	11 Conductor
Jacket Material	Polyurethane (PUR)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

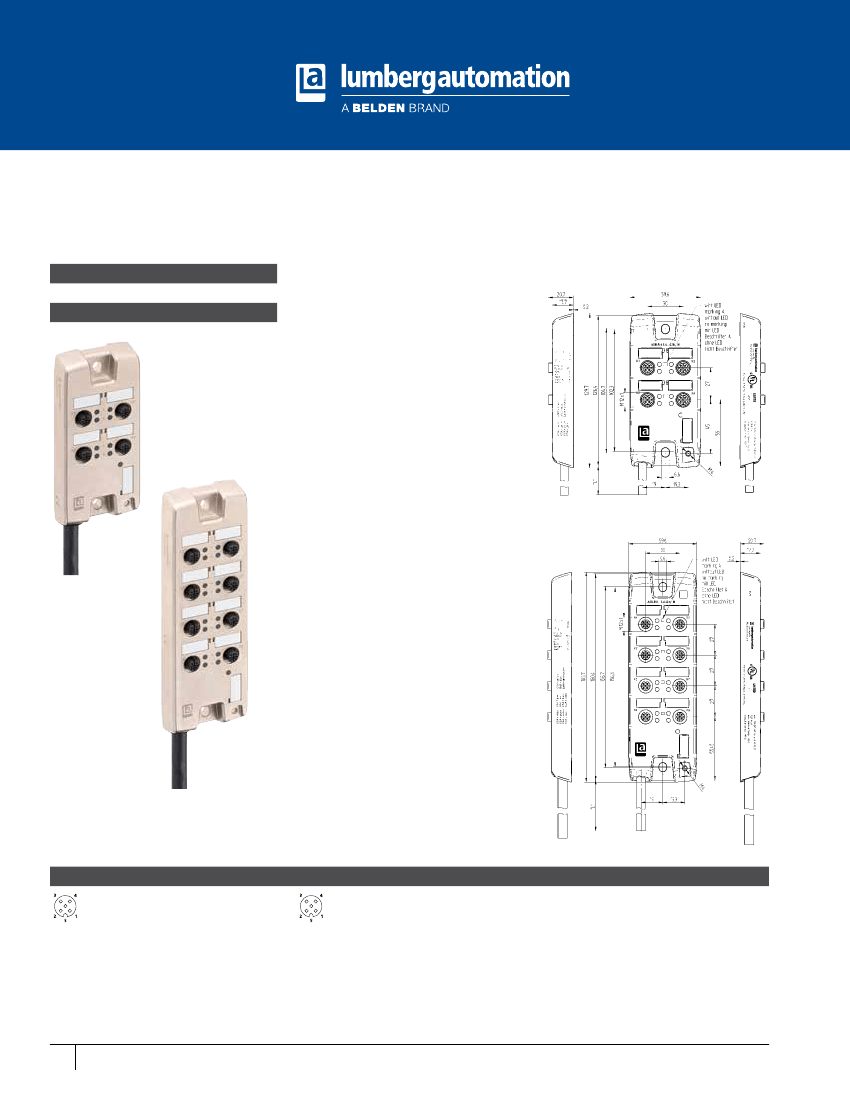

M12 Rugged Distribution Boxes, One Signal Per Socket,

with or without LED

ASB-R 4 5-4-328 | ASB-R 8 5-4-331

4- and 8-Ports

ASB-R wired actuator/sensor distributor, 4 or

8 x M12 ports, 4-poles, with or without LED

operating and function display, one signal per

socket, ground connection, with integrated

control cable, PUR jacket, halogenfree, black

4-Ports

ASB-R 4/LED 5-4-328 | ASB-R 8/LED 5-4-331

8-Ports

Pin Assignments

M12

Wiring Diagrams

4-Ports

brown (+)

n.a.

blue (-)

white (1)

green (2)

yellow (3)

grey (4)

5 = green/yellow (PE)

8-Ports

1 = brown (+)

2 = n.a.

3 = blue (-)

4 = white (1)

green (2)

yellow (3)

grey (4)

pink (5)

red (6)

black (7)

violet (8)

5 = green/yellow (PE)

Technical Support:

1-717-217-2289

www.lumberg-automationusa.com

ASB-R 8/LED 5-4-331/5 M Related Products

	ASB-R 8/LED 5-4-331/5 M	ASB-R 4 5-4-328/10 M	ASB-R 8/LED 5-4-331/15 M	ASB-R 8 5-4-331/5 M	ASB-R 8 5-4-331/10 M	ASB-R 8/LED 5-4-331/10 M	ASB-R 4/LED 5-4-328/5 M	ASB-R 4/LED 5-4-328/10 M	ASB-R 4 5-4-328/5 M
Description	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables	Sensor Cables / Actuator Cables
Connector End A	M12	M12	M12	M12	M12	M12	M12	M12	M12
Connector End A Pin Count	5 Position	5 Position	5 Position	5 Position	5 Position	5 Position	5 Position	5 Position	5 Position
Connector End B	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector	No Connector
Gender	Female	Female	Female	Female	Female	Female	Female	Female	Female
Length	5 m	10 m	15 m	5 m	10 m	10 m	5 m	10 m	5 m
Current Rating	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Voltage Rating	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Number of Conductors	11 Conductor	7 Conductor	11 Conductor	11 Conductor	11 Conductor	11 Conductor	7 Conductor	7 Conductor	7 Conductor
Jacket Material	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)	Polyurethane (PUR)
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
