095-820-109-15Z datasheet, PDF

Datasheet> All Categories > Wire/cable> 095-820-109-15Z

095-820-109-15Z: DescriptionRF Cable Assemblies FKRA(M)-AMC(M)1.37MM 5.91 Str Blkhd Plug; CategoryWire/cable; File Size301KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

095-820-109-15Z Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	095-820-109-15Z	-	-	View	Buy Now

095-820-109-15Z Overview

RF Cable Assemblies FKRA(M)-AMC(M)1.37MM 5.91 Str Blkhd Plug

095-820-109-15Z Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	RF Cable Assemblies
RoHS	Details
Connector A Series	FAKRA
Connector A Gender	Plug
Connector A Body Style	Straight
Connector B Series	AMC
Connector B Gender	Plug
Connector B Body Style	Right Angle
Length	15 mm
Impedance	50 Ohms
Frequency Range	6 GHz
Cable Type	1.37 mm Coax
Contact Plating	Gold
Contact Material	Phosphor Bronze
Connector A Polarity	Normal
Connector B Polarity	Normal
Factory Pack Quantity	100

Preview

Download Datasheet

View All

NOTES:

1. MATERIALS AND FINISHES:

FAKRA SMB PLUG: BODY - ZINC ALLOY, NICKEL PLATING

CENTER CONTACT - BERYLLIUM COPPER, GOLD PLATING

AMC PLUG:

BODY - PHOSPHOR BRONZE, SILVER PLATING

CENTER CONTACT - PHOSPHOR BRONZE, GOLD PLATING

CABLE:

1.37MM MICRO-COAX

2. ELECTRICAL :

A. IMPEDANCE: 50 OHM

3. MECHANICAL:

A. RECOMMENDED LOCKWASHER TORQUE: 1.13 N-M [10 IN-LBS]

4. PACKAGING:

A. QUANTITY: SINGLE PACK

B. MARKING: BAG TO BE MARKED

"AMPHENOL RF, 95-820-109-XXX , AND DATE CODE"

5.70

THIRD ANGLE PROJ.

REV

FAKRA KEY TABLE ADDED

RELEASE TO MFG.

DESCRIPTION

REVISIONS

12-FEB-18

23-Aug-18

DATE

06921

08941

ECN

APPR

BMG

6.50

RECOMMENDED MOUNTING

HOLE DIMENSIONS

LENGTH "L" (SEE TABLE)

HEAT SHRINK TUBE

SCALE

1.000

INTERFACE:

FAKRA SMB PLUG

12.70 REF

8MM HEX NUT

GASKET

LOCK

WASHER

KEY

CODE

PART NUMBER TABLE

PART NUMBER

95-820-109-05Y

95-820-109-10Y

95-820-109-15Y

95-820-109-20Y

95-820-109-25Y

LENGTH "L"

MM [IN]

INTERFACE:

AMC R/A PLUG

FAKRA KEY TABLE

95-820-109-XXA

95-820-109-XXB

95-820-109-XXC

95-820-109-XXD

95-820-109-XXE

95-820-109-XXF

95-820-109-XXG

95-820-109-XXH

95-820-109-XXI

95-820-109-XXK

95-820-109-XXL

95-820-109-XXN

95-820-109-XXM

95-820-109-XXZ

ASSEMBLY

PART #

COLOR

JET BLACK

CREAM

SIGNAL BLUE

LEAF GREEN

NUT BROWN

BLUE GREY

BEIGE

CURRY

RAL NO.

9005

9001

5005

4004

6002

8011

7031

4003

1001

1027

3002

3003

6019

5021

50.00 # 5.00 [1.97 # .20]

100.00 # 5.00[3.94 # .20]

150.00 # 5.00[5.91 # .20]

200.00 # 5.00[7.87 # .20]

250.00 # 5.00[9.84 # .20]

CLARET VIOLET

95-820-109-30Y 300.00 # 5.00[11.81 # .20]

HEATHER VIOLET

DESIGN REQUIREMENTS:

FREQUENCY: DC TO 6 GHz

VSWR : 1.30 MAX @ 2 GHz

1.50 MAX @ 6 GHz

INS. LOSS _____ dB MAX

CONTINUITY

HI-POT :200 VRMS

OTHER

MATERIAL

SEE NOTES

REFERENCE

EAR# 8550

REF: TRUE

CONFIGURATION LEVEL: In Work

ADDITIONAL LENGTHS AND FAKRA KEY CODES AVAILABLE BY

CHANGING XXX TO DESIRED LENGTH IN MM AND FAKRA KEY CODE.

CONTACT AMPHENOL RF MARKETING FOR QUOTE.

EXAMPLE: -09B IS 90MM WITH FAKRA KEY CODE "B"

CARMINE RED

PASTEL ORANGE

PASTEL GREEN

WATER BLUE

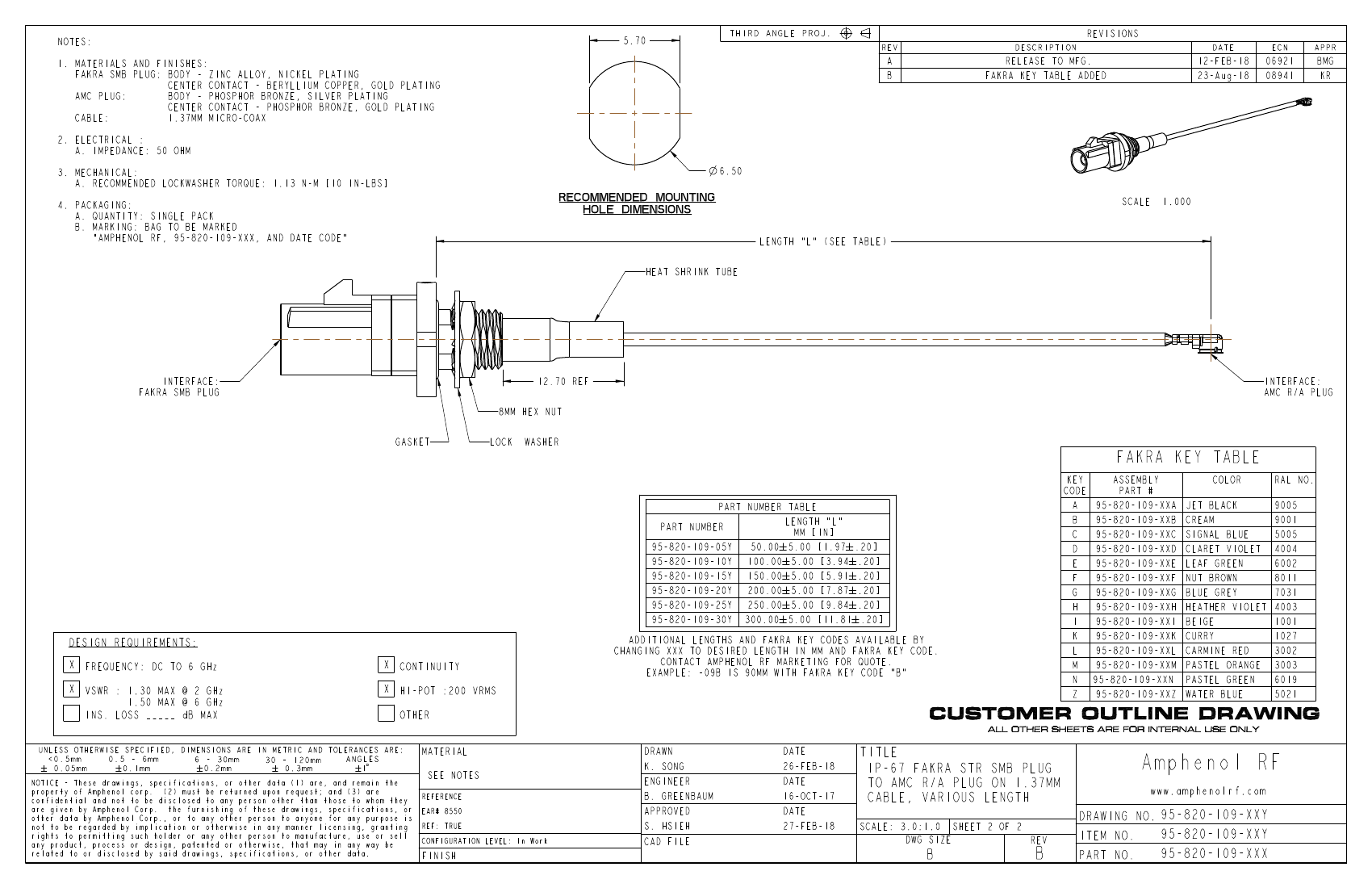

CUSTOMER OUTLINE DRAWING

ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY

DRAWN

K. SONG

DATE

ENGINEER

APPROVED

S. HSIEH

CAD FILE

26-FEB-18

16-OCT-17

27-FEB-18

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:

<0.5mm

0.5 - 6mm

ANGLES

6 - 30mm

30 - 120mm

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon request; and (3) are

confidential and not to be disclosed to any person other than those to whom they

are given by Amphenol Corp. the furnishing of these drawings, specifications,

other data by Amphenol Corp., or to any other person to anyone for any purpose

not to be regarded by implication or otherwise in any manner licensing, granting

rights to permitting such holder or any other person to manufacture, use or sell

any product, process or design, patented or otherwise, that may in any way be

related to or disclosed by said drawings, specifications, or other data.

B. GREENBAUM

TITLE

IP-67 FAKRA STR SMB PLUG

TO AMC R/A PLUG ON 1.37MM

CABLE, VARIOUS LENGTH

SCALE: 3.0:1.0 SHEET 2 OF 2

DWG SIZE

REV

Amphenol RF

www.amphenolrf.com

DRAWING NO.

95-820-109-XXY

ITEM NO.

PART NO.

FINISH

95-820-109-XXY

95-820-109-XXX
