RSRK 40-839/23M: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size329KB，1 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric View All

RSRK 40-839/23M Overview

Sensor Cables / Actuator Cables

RSRK 40-839/23M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	7/8 in Circular
Connector End A Pin Count	4 Position
Connector End B	7/8 in Circular
Connector End B Pin Count	4 Position
Gender	Male / Female
Length	23 m
Current Rating	8 A
Voltage Rating	600 V
Color	Yellow
Description/Function	Mini Double-Ended Cordsets
Jacket Material	Polyurethane (PUR)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

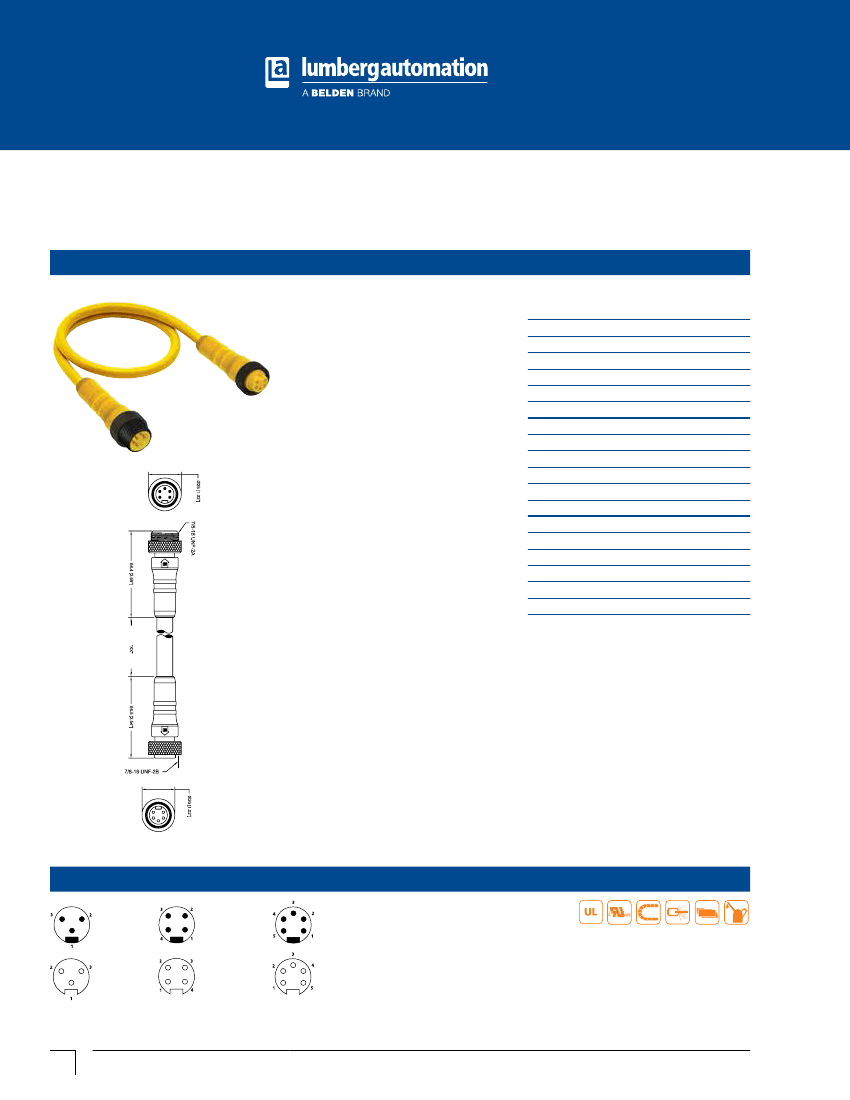

Mini Double-Ended Cordsets

RSRK 30-838 | RSRK 40-839 | RSRK 50-877

Description

MINI, Double-Ended Cordset, Straight, Male

(external threads) to Female (internal threads),

3-, 4- and 5-Pole, 16 AWG, Yellow TPE (TC-ER)

Cable, U.S. Color Code, IP 68 and NEMA 6P

Rated.

Technical Data

Material

Molded body

Coupling nut

Contacts

Insert

Electrical

Current rating

Voltage rating

Mechanical

Temperature

Protection

Cable

Jacket

Gauge

UL Approval

Outside diameter

PUR, yellow

Aluminum, e-coated or

anodized black

Brass, gold over nickel plated

PUR, yellow

Part Number

RSRK 30-838/1M

RSRK 30-838/2M

RSRK 30-838/3M

RSRK 30-838/5M

RSRK 30-838/10M

RSRK 30-838/20M

RSRK 40-839/1M

RSRK 40-839/2M

RSRK 40-839/3M

RSRK 40-839/5M

RSRK 40-839/10M

RSRK 40-839/20M

RSRK 50-877/1M

8A

600 V

RSRK 50-877/2M

RSRK 50-877/3M

RSRK 50-877/5M

-30°C to + 90°C

IP 68, NEMA 6P

RSRK 50-877/10M

RSRK 50-877/20M

Yellow, TPE

16 AWG stranded copper

TC-ER

838: .315”

839: .342”

877: .371”

Pin Assignments

Face View 7/8”

1 = green

2 = black

3 = white

1 = black

2 = white

3 = red

4 = green

1 = white

2 = red

3 = green

4 = orange

5 = black

20

FCA NAFTA Project Book

Revison 12, July 1, 2015

Phone: 1-800-BELDEN1

www.lumberg-automationusa.com
