130010-0863: DescriptionSensor Cables / Actuator Cables MiniChange A-Size DE Crdst 4P MA/FE .50M; CategoryWire/cable; File Size22KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

130010-0863 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	130010-0863	-	-	View	Buy Now

130010-0863 Overview

Sensor Cables / Actuator Cables MiniChange A-Size DE Crdst 4P MA/FE .50M

130010-0863 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Sensor Cables / Actuator Cables
RoHS	Details
Connector End A	Mini-Change
Connector End A Pin Count	4 Position
Connector End B	Mini-Change
Connector End B Pin Count	4 Position
Gender	Male / Female
Length	500 mm
Current Rating	10 A
Voltage Rating	600 V
Number of Conductors	4 Conductor
Wire Gauge - AWG	16 AWG
Color	Yellow
Description/Function	Double-ended cordset
Jacket Material	Thermoplastic Elastomer (TPE)
Factory Pack Quantity	1
Unit Weight	6.097845 oz

Preview

Download Datasheet

View All

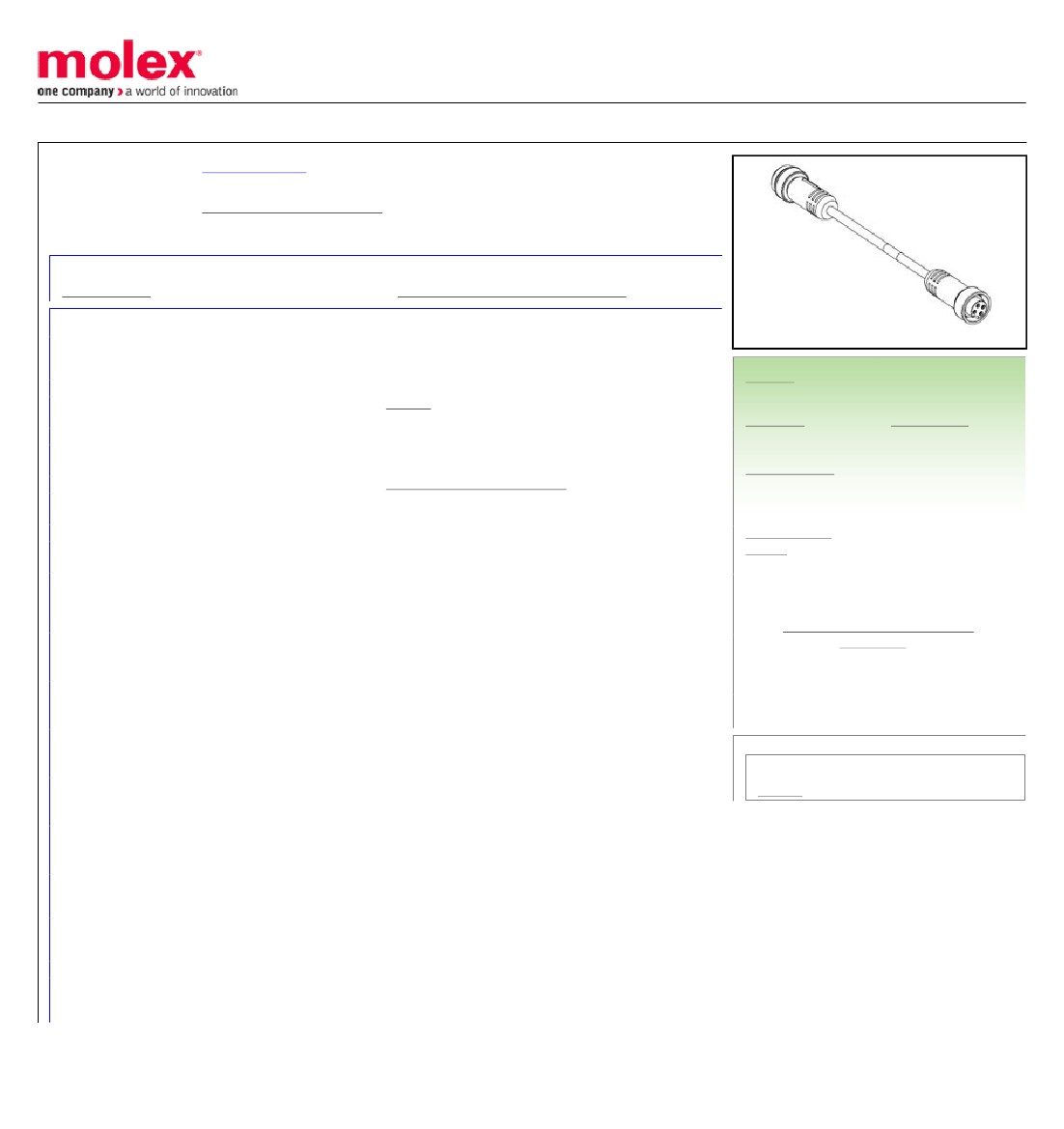

This document was generated on 02/12/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1300100863

Active

Brad Mini-Change Connectors

Mini-Change A-Size Double-Ended Cordset, 4 Poles, Male (Straight) to Female

(Straight), 16 AWG, TPE Cable, 0.50m (1.64') Length

Documents:

Drawing (PDF)

Agency Certification

General

Product Family

Series

Connector End A

Connector End B

IP Rating

Material - Contact

Overview

Product Name

Protocol

Region

Type

UPC

Physical

Cable Diameter

Cable Length

Color - Cable Jacket

Coupling Style

Gender

Keyway

LED Indicator

Material - Cable Jacket

Material - Connector Body

Material - Coupling Nut

Material - Plating Mating

Net Weight

Orientation

Poles

Temperature Range - Operating

Wire Size AWG

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Engineering Number

Reference - Drawing Numbers

Sales Drawing

RoHS Certificate of Compliance (PDF)

E152210

Industrial Cordsets

130010

Mini-Change

IP67

Copper Alloy

Brad Mini-Change Connectors

Mini-Change

DeviceNet

America

Double Ended

78678802291

10.67mm (.420")

0.50m (1.64')

Yellow

Threaded

Female-Male

Single

TPE

Black Epoxy Coated Zinc

Gold over Nickel

172.871/g

Straight to Straight

-20°C to +105°C

TC-ER

10.0A

600V

114030K12M005

SD-130010-016

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant with

Exemption 6(c)

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

50 Image

Not Relevant

Not Contained

Search Parts in this Series

130010 Series

This document was generated on 02/12/2018
