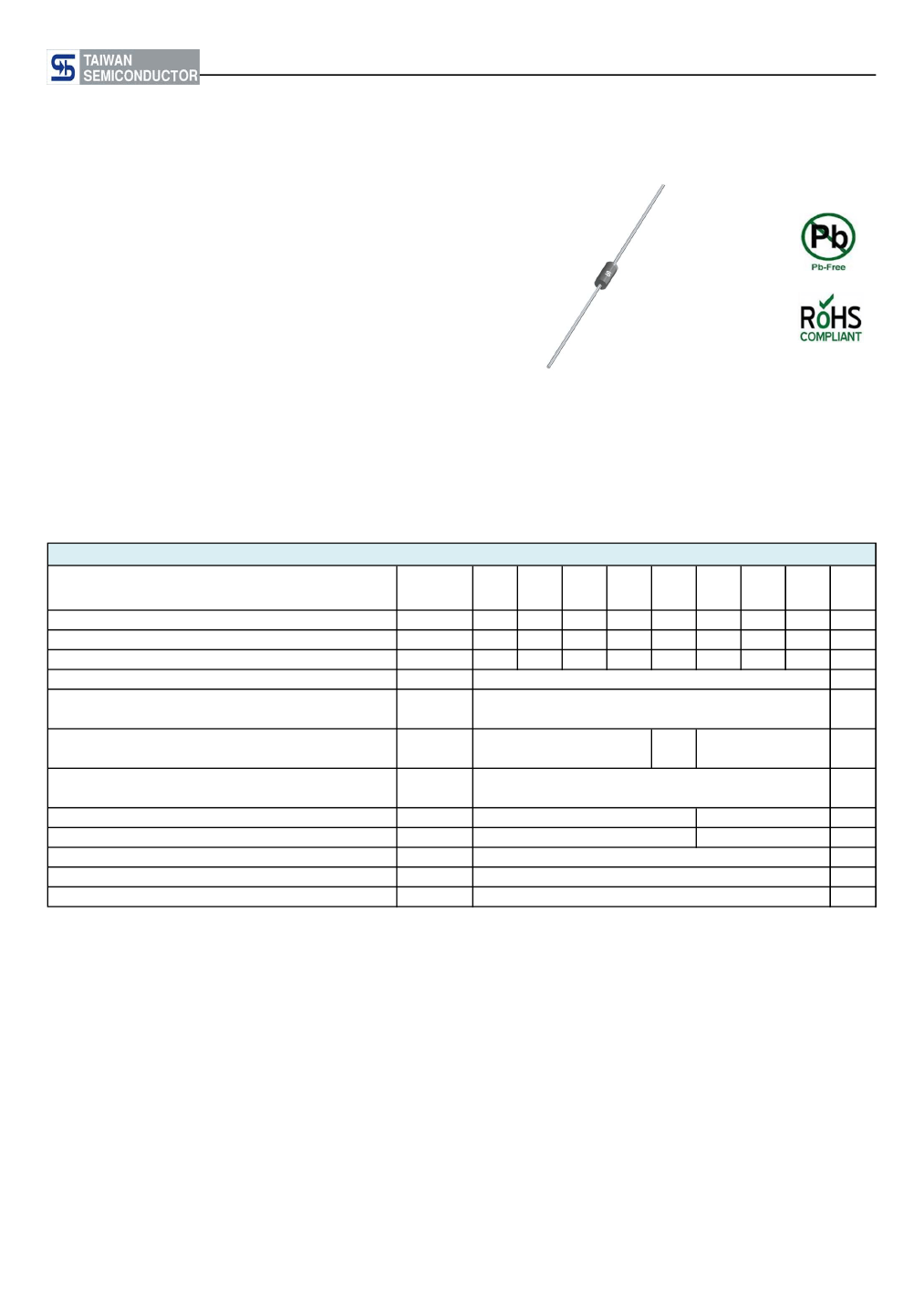

HER151G - HER158G
CREAT BY ART
1.5A, 50V - 1000V Glass Passivated High Efficient Rectifiers
FEATURES
- Glass passivated chip junction
- High efficiency, Low VF
- High current capability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
MECHANICAL DATA
Case:
DO-204AC (DO-15)
Molding compound, UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Pure tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Weight:
0.4g (approximately)
DO-204AC (DO-15)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 1.5 A
Maximum reverse current @ rated VR
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300
μs,
1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJA
T
J
T
STG
50
35
60
- 55 to +150
- 55 to +150
1.0
5
150
75
20
HER
50
35
50
HER
100
70
100
HER
200
140
200
HER
300
210
300
1.5
50
1.3
1.7
HER
400
280
400
HER
600
420
600
HER
800
560
800
HER
1000
700
1000
151G 152G 153G 154G 155G 156G 157G 158G
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Document Number: DS_D0000069
Version: H15
HER151G - HER158G
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
HER15xG
(Note 1)
A0
H
R0
B0
G
PACKING CODE
PACKING CODE
SUFFIX
(*)
PACKAGE
DO-15
DO-15
DO-15
PACKING
1,500 / Ammo box
3,500 / 13" Paper reel
1,000 / Bulk packing
Note 1: "x" defines voltage from 50V (HER151G) to 1000V (HER158G)
*: Optional available
EXAMPLE
PREFERRED
PART NO.
HER157GHA0G
PART NO.
HER157G
PART NO.
SUFFIX
H
PACKING CODE
A0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

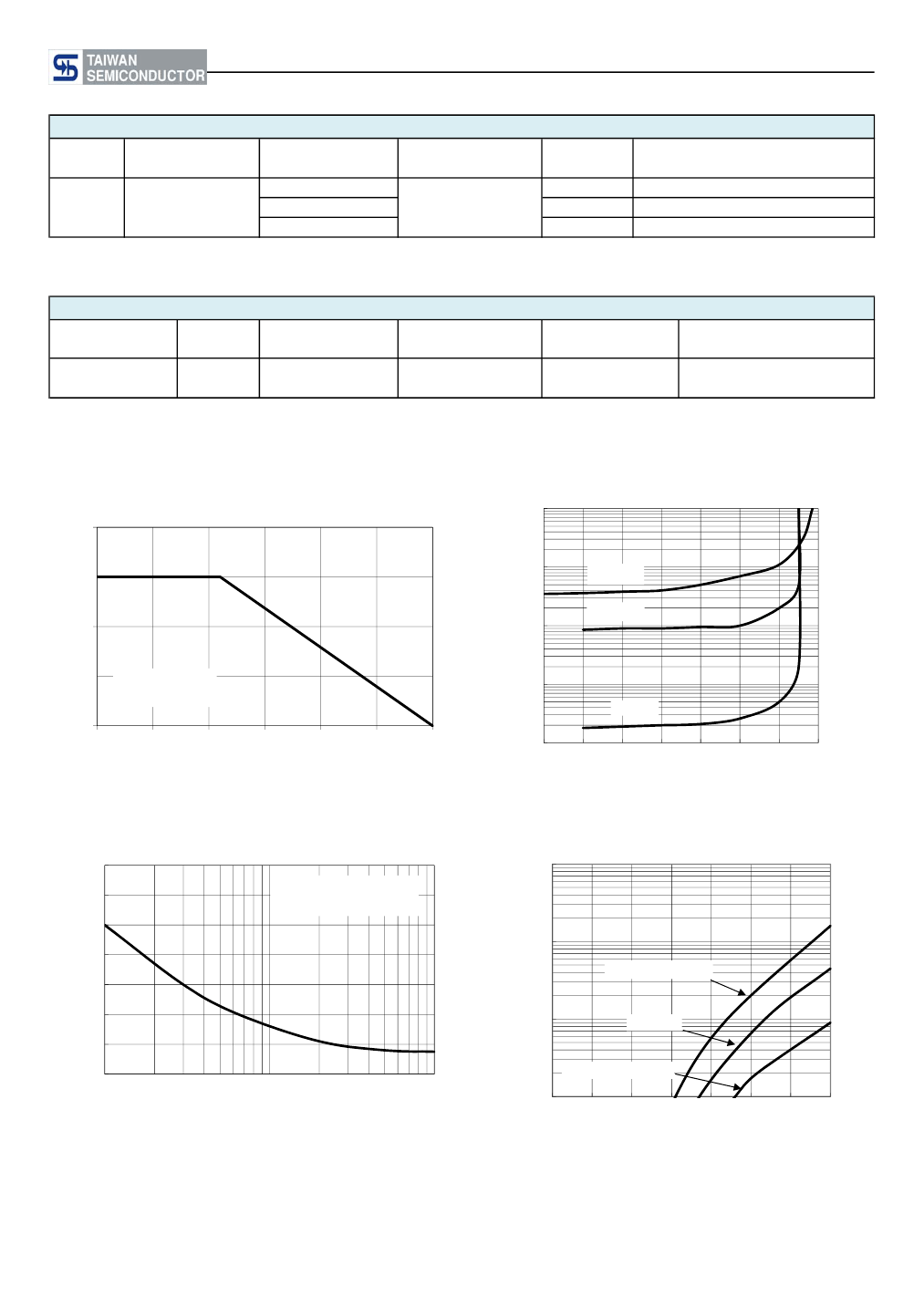

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT DERATING
CURVE
2
INSTANTANEOUS REVERSE CURRENT (μA)
AVERAGE FORWARD CURRENT (A)
100
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
1000
T
J
=125°C
T
J
=75°C
1
10
RESISTIVE OR
INDUCTIVE LOAD
1
T
J
=25°C
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE (
°
C)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
PEAK FORWARD SURGE CURRENT(A)
INSTANTANEOUS FORWARD CURRENT (A)
70
60
50
40
30
20
10
0
1
10
100
8.3mS Single Half Sine Wave
100
FIG. 4 TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
10
HER151G-HER154G
1
HER155G
HER156G-HER158G
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
NUMBER OF CYCLES AT 60 Hz
Document Number: DS_D0000069
Version: H15
HER151G - HER158G
Taiwan Semiconductor
CREAT BY ART

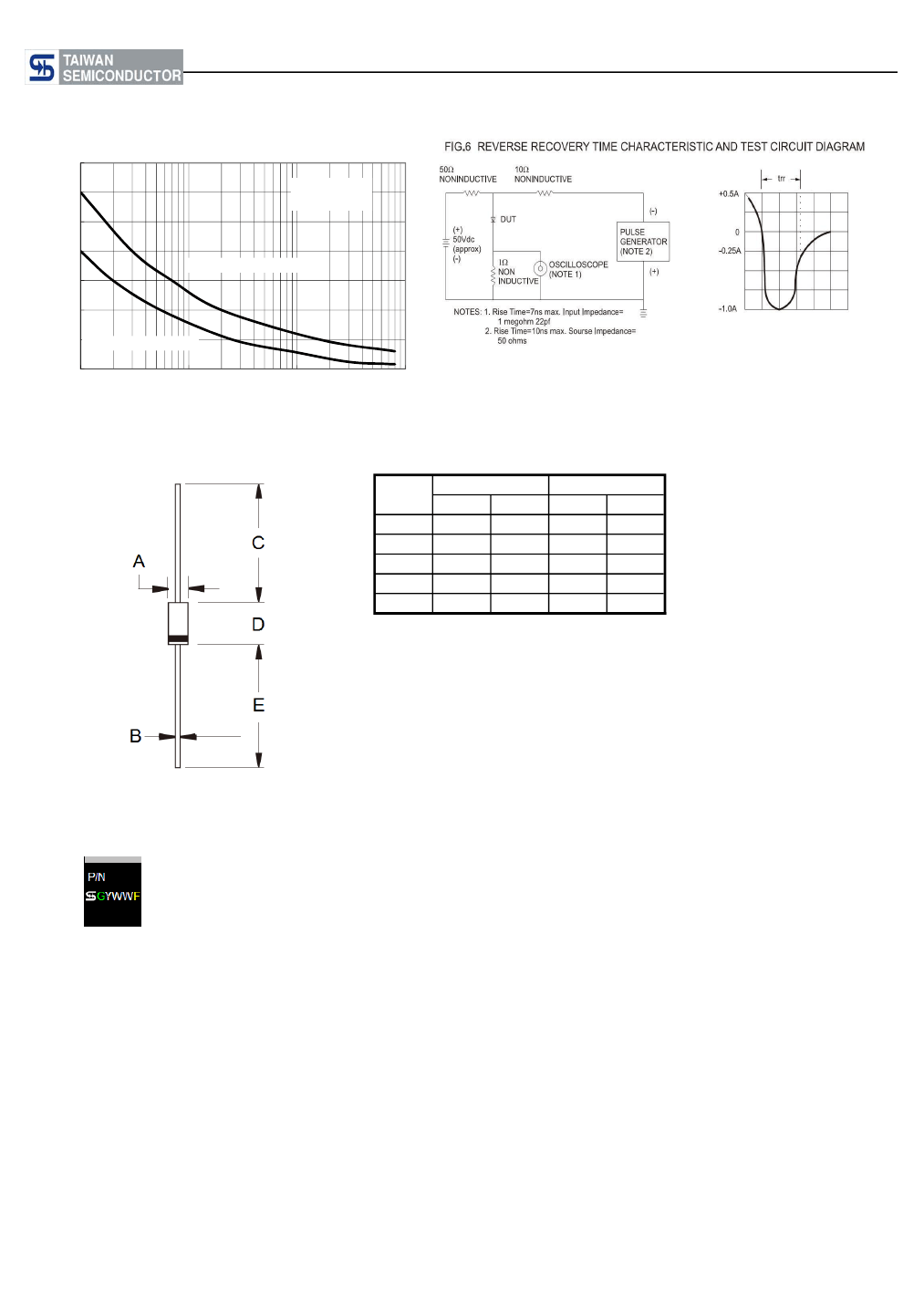

FIG. 5 TYPICAL JUNCTION CAPACITANCE
f=1.0MHz
Vsig=50mVp-p
175
150
JUNCTION CAPACITANCE (pF)
125
100
HER151G-HER155G
75
50
25
0
0.1
1
10
REVERSE VOLTAGE (V)
100
HER156G-HER158G
PACKAGE OUTLINE DIMENSIONS
DO-204AC (DO-15)
DIM.
A
B
C
D
E
Unit (mm)
Min
2.60
0.70
25.40
5.80
25.40
Max
3.60
0.90
-
7.60
-
Unit (inch)
Min
0.102
0.028
1.000
0.228
1.000
Max
0.142
0.035
-
0.299
-
MARKING DIAGRAM
P/N =
G=
YWW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D0000069
Version: H15
HER151G - HER158G
Taiwan Semiconductor
CREAT BY ART
