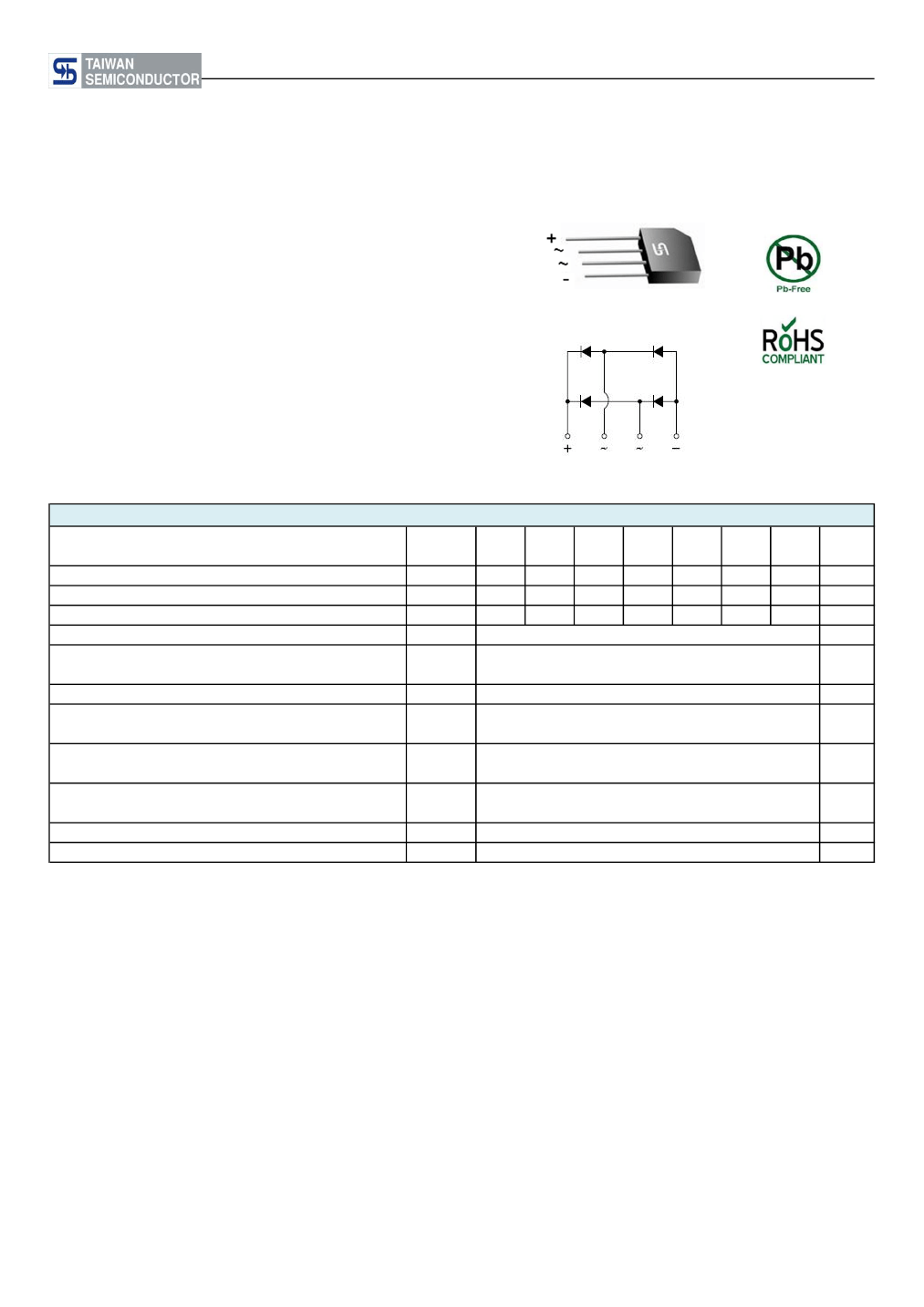

KBP151G thru KBP157G
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Ideal for printed circuit board
- Reliable low cost construction utilizing molded plastic technique
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Glass Passivated Bridge Rectifiers
KBP
MECHANICAL DATA
Case:
KBP
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
Polarity as marked on the body
Weight:
1.5 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3mS)
Maximum instantaneous forward voltage (Note 1)
I
F
= 1.5 A
Maximum DC reverse current
at rated DC blocking voltage
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse Test with PW=300μs,1% Duty Cycle
T
J
=25
℃
T
J
=125℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
R
θjL
R
θjA
T
J
T
STG
KBP
151G
50
35
50
KBP
152G
100
70
100
KBP
153G
200
140
200
KBP
154G
400
280
400
1.5
50
10.3
1.1
10
500
13
40
- 55 to +150
- 55 to +150
O
KBP
155G
600
420
600
KBP
156G
800
560
800
KBP
157G
1000
700
1000
UNIT
V
V
V
A
A
A
2
s
V
μA
C/W
O
O
C
C
Document Number: DS_D1311018
Version: D13
KBP151G thru KBP157G
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
KBP15xG
(Note 1)
PACKING CODE
GREEN COMPOUND
CODE
C2
Suffix "G"
KBP
25 / TUBE
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (KBP151G) to 1000V (KBP157G)
EXAMPLE
PREFERRED P/N
KBP157G C2
KBP157G C2G
PART NO.
KBP157G
KBP157G
PACKING CODE
C2
C2
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

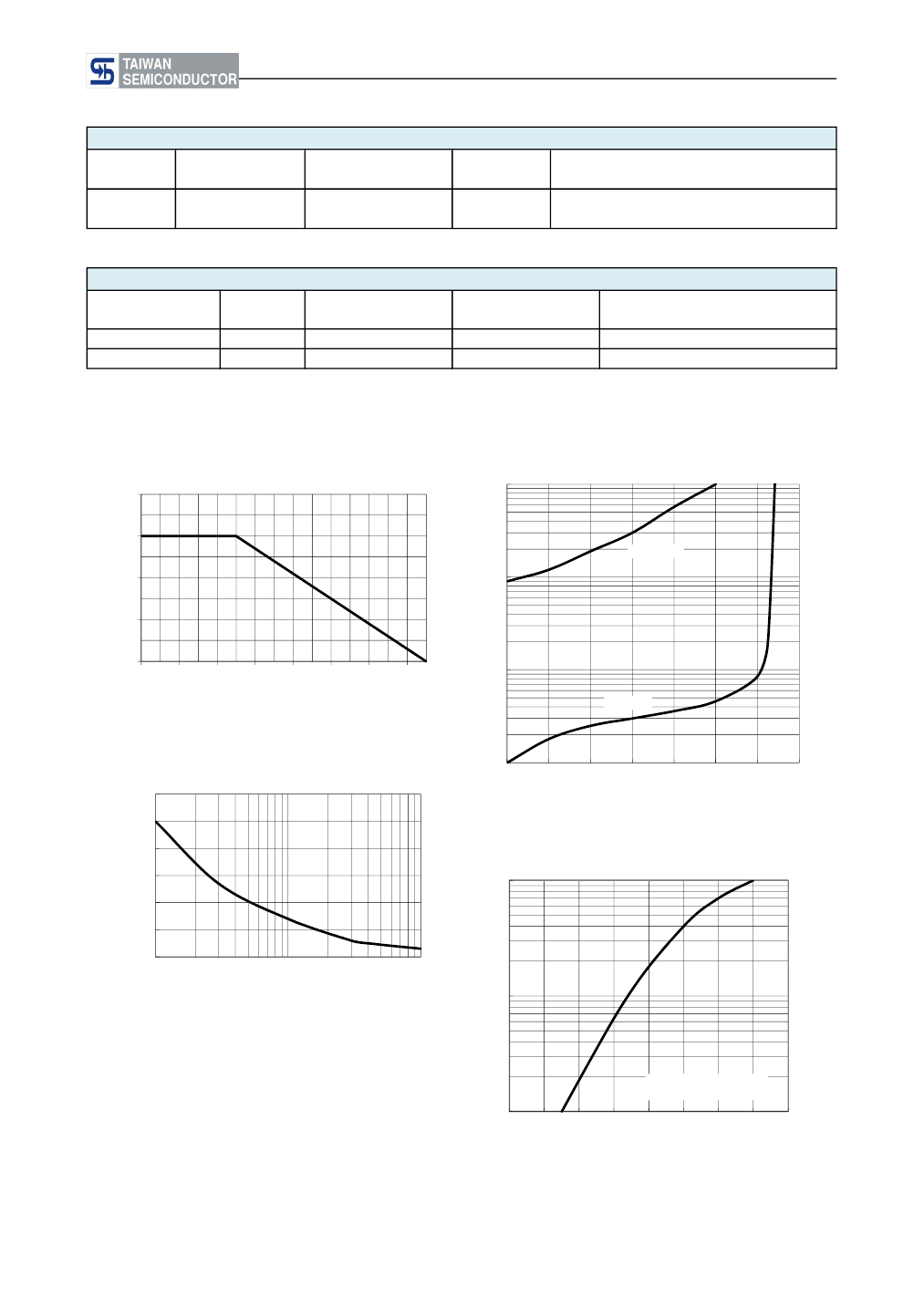

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
2
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
100
AVERAGE FORWARD
A
CURRENT (A)
INSTANTANEOUS REVERSE CURRENT (uA)
1.5
TJ=125℃
10
1
0.5
0
0
20
40
60
80
100
120
140
AMBIENT TEMPERATURE (
o
C)
1
TJ=25℃
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
60
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT (A)
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 4- TYPICAL FORWARD CHARACTERISTICS
10
1
PULSE WIDTH-300μs
1% DUTY CYCLE
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
INSTANTANEOUS FORWARD VOLTAGE (V)
Document Number: DS_D1311018
Version: D13
KBP151G thru KBP157G
Taiwan Semiconductor
FIG. 5- TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE (pF)
A
100
f=1.0MHz
Vsig=50mVp-p
10
0.1
1
10
100
1000
REVERSE VOLTAGE (V)

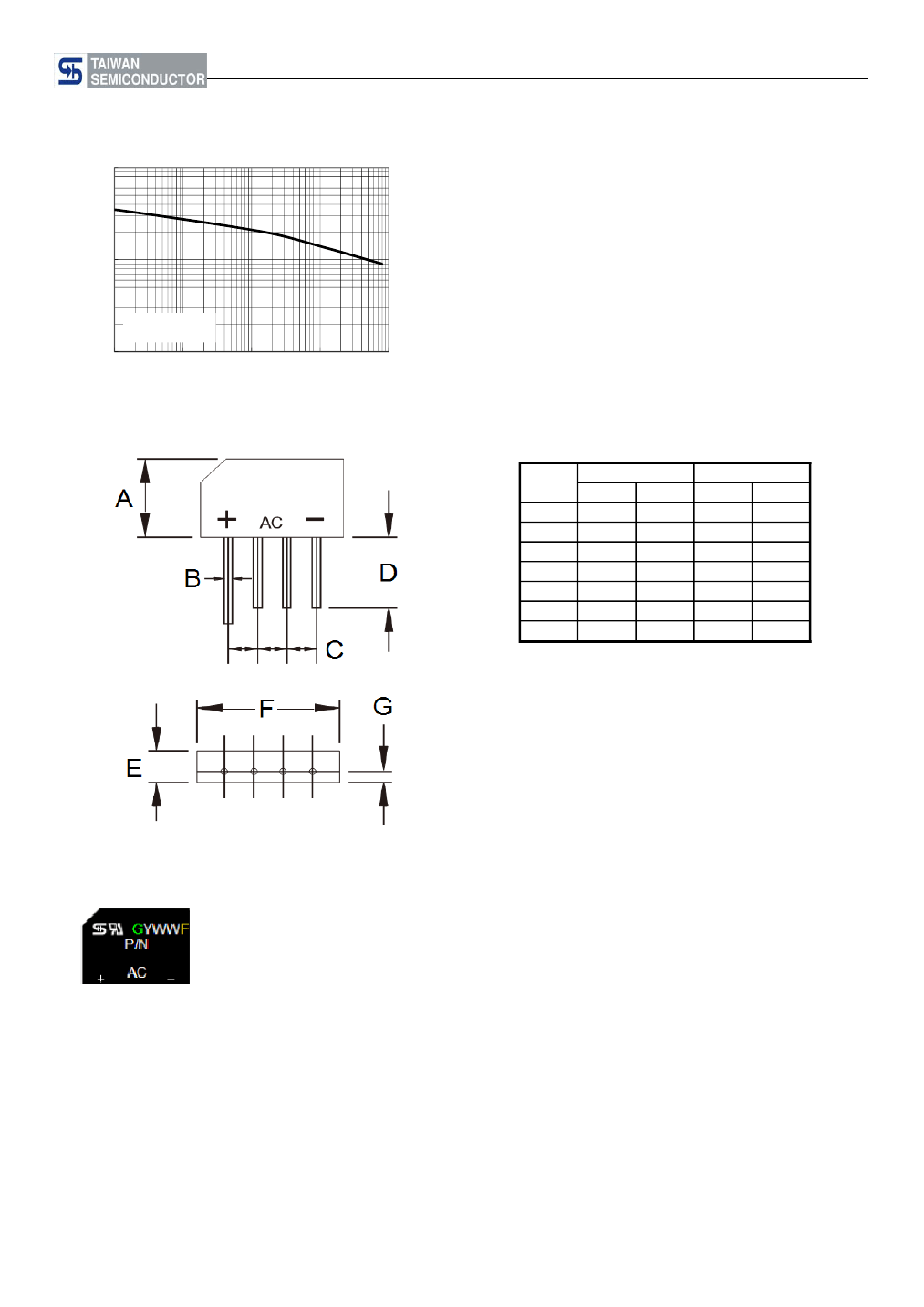

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
10.60
0.70
3.60
12.70
3.70
14.22
1.27
Max
11.68
0.90
4.10
-
3.90
15.24
-
Unit (inch)
Min
0.417
0.028
0.142
0.500
0.146
0.560
0.050
Max
0.460
0.035
0.161
-
0.154
0.600
-
DIM.
A
B
C
D
E
F
G
MARKING DIAGRAM
P/N
G
YW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1311018
Version: D13
KBP151G thru KBP157G
Taiwan Semiconductor
CREAT BY ART
