BT860-SA-T/R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> BT860-SA-T/R

BT860-SA-T/R: DescriptionBluetooth / 802.15.1 Modules BTv4.2 Dual Mode UAR T HCI Module (Integr; CategoryModule/solution; File Size2MB，34 Pages; ManufacturerLaird; Environmental Compliance

Download Datasheet Parametric Compare View All

BT860-SA-T/R Overview

Bluetooth / 802.15.1 Modules BTv4.2 Dual Mode UAR T HCI Module (Integr

BT860-SA-T/R Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Laird
Product Category	Bluetooth / 802.15.1 Modules
RoHS	Details
Class	Class 1
Protocol	Bluetooth 4.2
Data Rate	4 Mb/s
Operating Supply Voltage	3 V to 3.6 V
Output Power	8 dBm
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 85 C
Sensitivity	- 94 dBm
Interface Type	GCI, I2S, PCM, UART
Packaging	Reel
Antenna	External w/FFC/FPC Connector
Frequency	2.4 GHz
Frequency Range	2.402 GHz to 2.48 GHz
Height	2.2 mm
Length	12.85 mm
Product	Bluetooth Modules
Width	8.5 mm
Antenna Connector Type	FFC/FPC Connector
Factory Pack Quantity	2500
Supply Current Transmitting	55 mA
Version	Bluetooth 4.2

Preview

Download Datasheet

View All

Datasheet

BT860-Sx

Bluetooth v4.2 Dual-Mode UART HCI Module

Version 1.0

BT860-Sx

Datasheet

ONTENTS

8.1.

8.2.

8.3.

8.4.

11.1.

12.1.

12.2.

12.3.

13.1.

17.1.

Scope ...............................................................................................................................................................4

Operational Description ..................................................................................................................................4

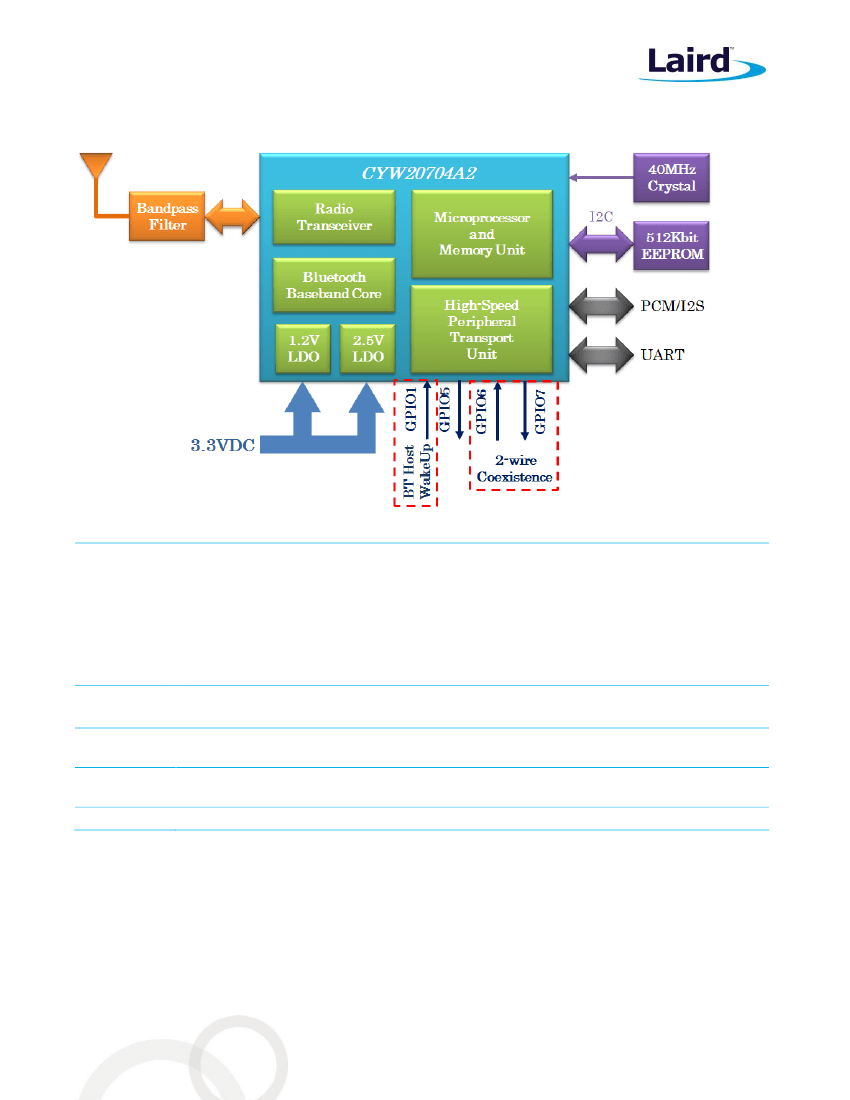

Block Diagram and Descriptions .....................................................................................................................5

Specifications ..................................................................................................................................................6

Pin Definitions ................................................................................................................................................6

DC Electrical Characteristics ...........................................................................................................................8

RF Characteristics ...........................................................................................................................................9

Interface ...................................................................................................................................................... 10

Global Coexistence Interface ................................................................................................................. 10

UART Interface....................................................................................................................................... 10

PCM Interface ........................................................................................................................................ 11

S Interface ........................................................................................................................................... 18

Antenna Performance ................................................................................................................................. 20

Mechanical Dimensions and Land Pattern .................................................................................................. 22

Implementation Note .................................................................................................................................. 23

PCB Layout on Host PCB ........................................................................................................................ 23

Application Note for Surface Mount Modules ............................................................................................ 24

Introduction ........................................................................................................................................... 24

Shipping ................................................................................................................................................. 24

Reflow Parameters ................................................................................................................................ 26

Japan (MIC) Regulatory ............................................................................................................................... 27

Antenna Information ............................................................................................................................. 27

FCC Regulatory ............................................................................................................................................ 27

Industry Canada Regulatory ........................................................................................................................ 29

European Union Regulatory ........................................................................................................................ 31

Ordering Information .................................................................................................................................. 32

General Comments ................................................................................................................................ 32

Bluetooth SIG Approvals.............................................................................................................................. 32

Additional Assistance................................................................................................................................... 34

Embedded Wireless Solutions Support Center:

http://ews-support.lairdtech.com

www.lairdtech.com/bluetooth

Americas: +1-800-492-2320

Europe: +44-1628-858-940

Hong Kong: +852 2923 0610

BT860-SA-T/R Related Products

	BT860-SA-T/R	BT860-ST	BT860-ST-T/R
Description	Bluetooth / 802.15.1 Modules BTv4.2 Dual Mode UAR T HCI Module (Integr	Bluetooth / 802.15.1 Modules BTv4.2 Dual Mode UAR T HCI Module (Ext An	Bluetooth / 802.15.1 Modules BTv4.2 Dual Mode UAR T HCI Module (Ext. A
Product Attribute	Attribute Value	-	Attribute Value
Manufacturer	Laird	-	Laird
Product Category	Bluetooth / 802.15.1 Modules	-	Bluetooth / 802.15.1 Modules
RoHS	Details	-	Details
Class	Class 1	-	Class 1
Protocol	Bluetooth 4.2	-	Bluetooth 4.2
Data Rate	4 Mb/s	-	4 Mb/s
Operating Supply Voltage	3 V to 3.6 V	-	3 V to 3.6 V
Output Power	8 dBm	-	8 dBm
Minimum Operating Temperature	- 30 C	-	- 30 C
Maximum Operating Temperature	+ 85 C	-	+ 85 C
Sensitivity	- 94 dBm	-	- 94 dBm
Interface Type	GCI, I2S, PCM, UART	-	GCI, I2S, PCM, UART
Packaging	Reel	-	Reel
Antenna	External w/FFC/FPC Connector	-	External w/FFC/FPC Connector
Frequency	2.4 GHz	-	2.4 GHz
Frequency Range	2.402 GHz to 2.48 GHz	-	2.402 GHz to 2.48 GHz
Height	2.2 mm	-	1.9 mm
Length	12.85 mm	-	12.85 mm
Product	Bluetooth Modules	-	Bluetooth Modules
Width	8.5 mm	-	8.5 mm
Antenna Connector Type	FFC/FPC Connector	-	FFC/FPC Connector
Factory Pack Quantity	2500	-	2500
Supply Current Transmitting	55 mA	-	55 mA
Version	Bluetooth 4.2	-	Bluetooth 4.2
