Internal phase locked loop will allow spread spec-
trum modulation on reference clock to pass to out-
puts.
Zero input - output delay.
Less than 700 ps device - device skew.
Less than 250 ps skew between outputs.
Less than 100 ps cycle - cycle jitter.
2.5V or 3.3V power supply operation.
Available in 8-Pin SOIC or MSOP package.
PIN CONFIGURATION
REFIN
GND
CLK1
CLK2
1
8
CLKOUT
DNC
DNC
VDD
PLL102-10
2
3
4
7
6
5
DESCRIPTION
The PLL102-10 is a high performance, low skew, low
jitter zero delay buffer designed to distribute high
speed clocks and is available in 8-pin SOIC or MSOP
package. It has two outputs that are synchronized with
the input. The synchronization is established via
CLKOUT feed back to the input of the PLL. Since the
skew between the input and output is less than
±350
ps, the device acts as a zero delay buffer.
BLOCK DIAGRAM
REFIN
PLL
CLKOUT
CLK1
CLK2
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 03/22/05 Page 1
PLL102-10
Low Skew Output Buffer
PIN DESCRIPTIONS
Name
REFIN
GND
CLK1
CLK2
VDD
DNC
CLKOUT2
Number
1
2
3
4
5
6&7
8
Type
I
P
O
O
P
-
O
Description
Input reference frequency. Spread spectrum modulation on this signal will be
passed to the output (up to 100kHz SST modulation).
Ground Connection.
Buffered clock output.
Buffered clock output.
2.5V or 3.3V Power Supply connection.
Do Not Connect
Buffered clock output. Internal feed back on this pin.
ELECTRICAL SPECIFICATIONS
1. Absolute Maximum Ratings
PARAMETERS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
SYMBOL
V
DD
V
I
V
O
T
S
T
A
T
J
MIN.
-0.5
-0.5
-65
-40
MAX.
4.6
V
DD
+0.5
V
DD
+0.5
150
85
125
260
UNITS
V
V
V
°C
°C
°C
°C
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the
device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other con-
ditions above the operational limits noted in this specification is not implied.
*
Note:
Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.
2. Electrical Characteristics
PARAMETERS
Supply Voltage
Input Low Voltage
Input High Voltage
Output Low Voltage
Output High Voltage
Supply Current
SYMBOL
V
DD
V
IL
V
IH
V
OL
V
OH
I
DD
CONDITIONS
MIN.
2.25
2.0
TYP.
MAX.
3.63
0.8
0.4
UNITS
V
V
V
V
V
mA
I
OL
= 24mA
I
OH
= 24mA
Unloaded outputs at 100MHz,
VDD=3.3V.
2.4
22
30
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 03/17/05 Page 2
PLL102-10
Low Skew Output Buffer
3. Switching Characteristics
PARAMETERS
Output Frequency
Duty Cycle
Rise Time
Fall Time
Output to Output Skew
Delay, REF Rising Edge to
CLKOUT Rising Edge
Device to Device Skew
Cycle to Cycle Jitter
PLL Lock Time
Jitter; Absolute Jitter
Jitter; 1-sigma
SYMBOL
t1
DC
T
r
T
f
T
skew
T
delay
T
dsk-dsk
T
cyc-cyc
T
lock
T
jabs
T
j1-s
DESCRIPTION
Measured at VDD/2,
C
L
=15pF, F
out
= 100MHz
Measured between 10%
and 90%VDD, C
L
=15pF
Measured between 90%
and 10%, C
L
=15pF
All outputs equally loaded,
C
L
=15pF
Measured at VDD/2
Measured at V
DD
/2 on the
CLKOUT pins of devices
Measured at 100MHz
Stable power supply, valid
clock presented on REF pin
At 10,000 cycles, low jitter
input signal
At 10,000 cycles, low jitter
input signal
MIN.
50
45
TYP.
50
1.2
1.2
MAX.
120
55
1.5
1.5
250
UNITS
MHz
%
ns
ns
ps
ps
ps
ps peak
ms
ps
ps
0
0
±350
700
60
1.0
20
9
50
15

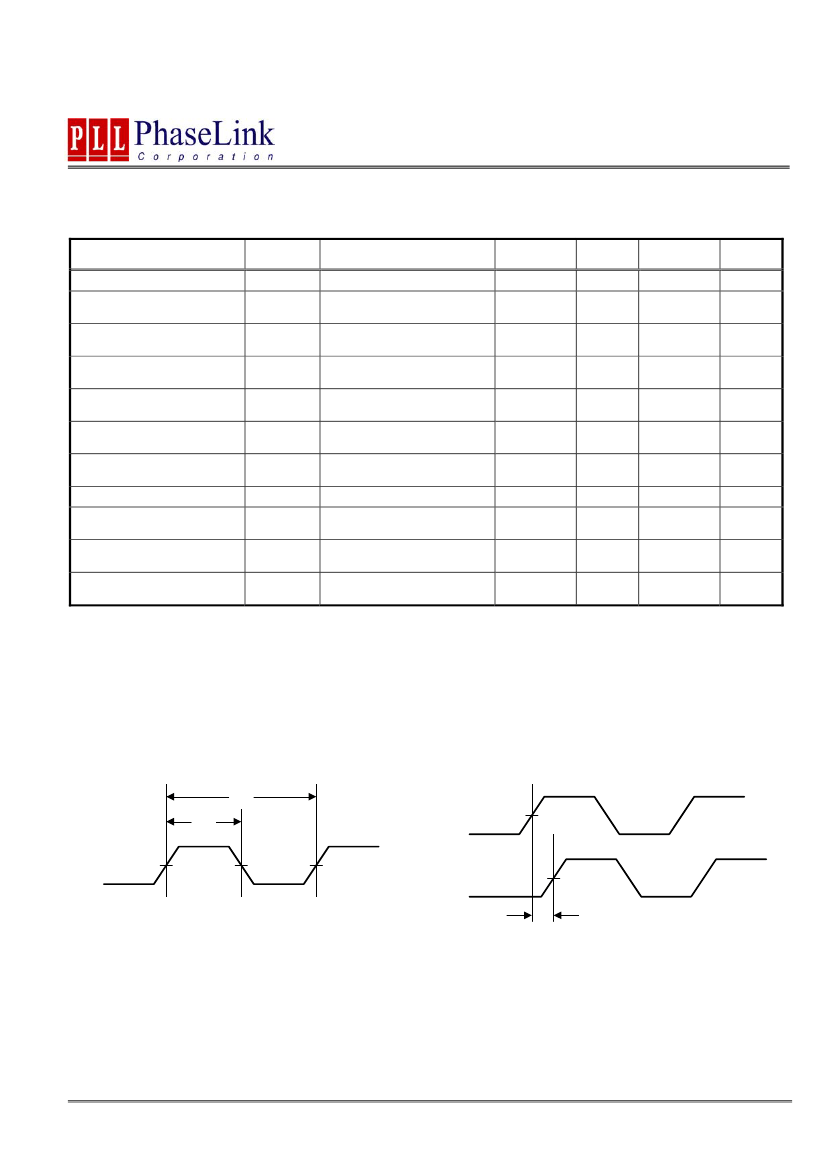

SWITCHING WAVEFORMS
Duty Cycle Timing
t1
t2
VDD/2
VDD/2
VDD/2
VDD/2
Output - Output Skew
Output
VDD/2
Output
T
SKEW
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 03/17/05 Page 3
PLL102-10
Low Skew Output Buffer

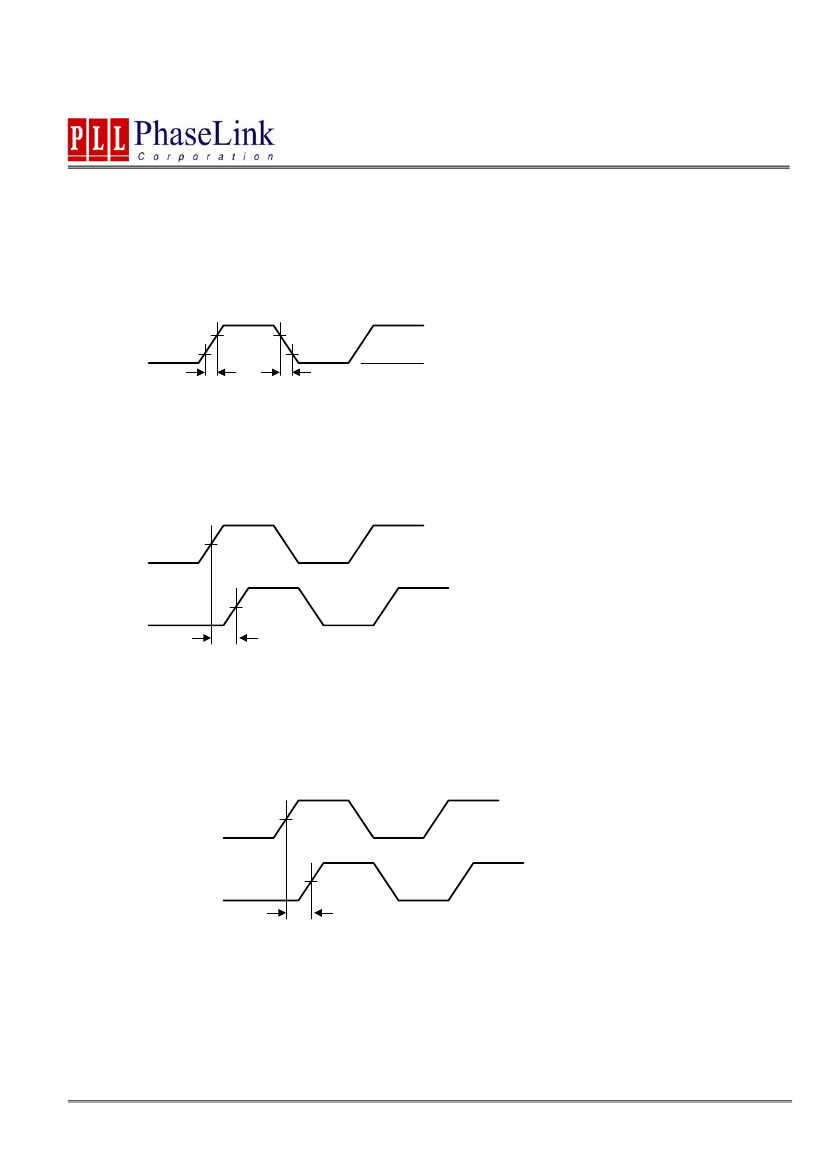

SWITCHING WAVE FORMS
All Outputs Rise/Fall Time
2.0V
2.0V
0.8V
t
r
t
f
3.3V
0V
Output
0.8V
Input to Output Propagation Delay
VDD/2
Input
VDD/2
Output
T
delay
Device to Device Skew
VDD/2
Device1 CLKOUT
VDD/2
Device2 CLKOUT
T
dsk - dsk
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 03/17/05 Page 4
PLL102-10
Low Skew Output Buffer

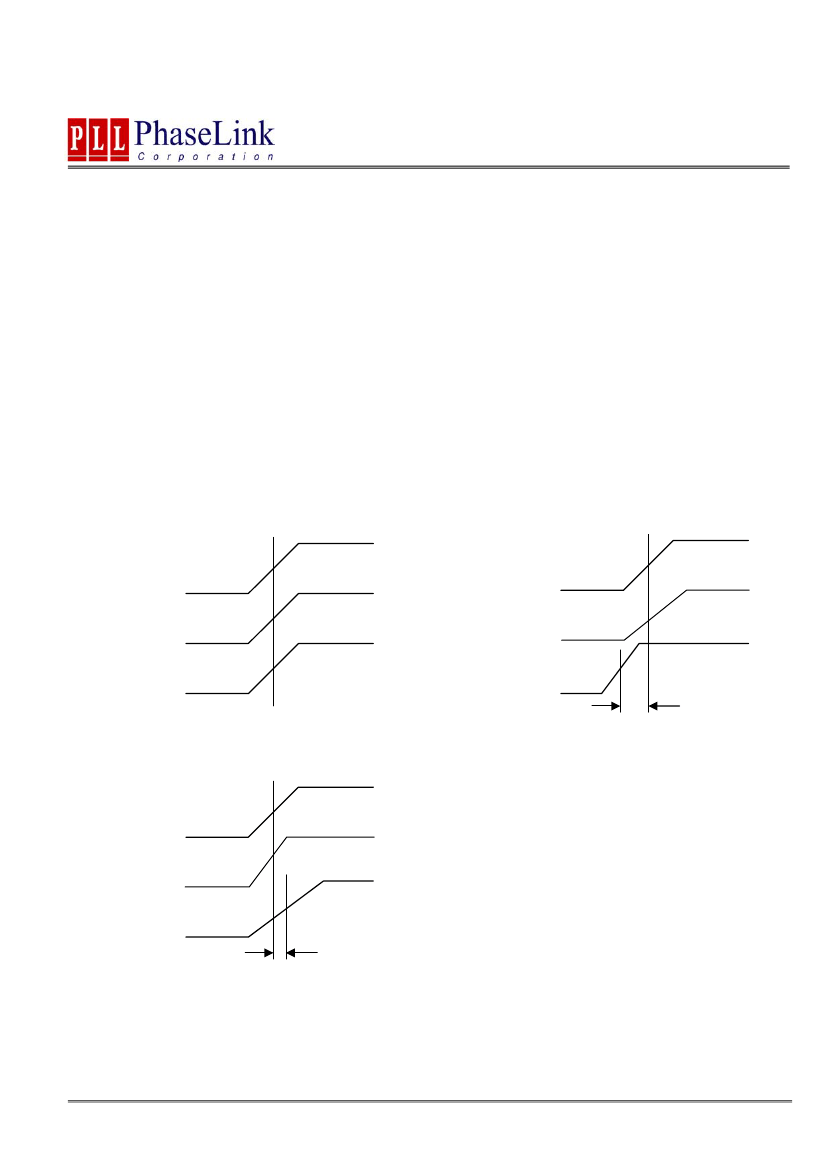

Output-Output Skew
The skew between CLKOUT and the CLK(1-2) outputs is not dynamically adjusted by the
PLL. Since CLKOUT is one of the inputs to the PLL, zero phase difference is maintained
from REF to CLKOUT. If all outputs are equally loaded, zero phase difference will be
maintained from REF to all outputs.
If applications requiring zero output-output skew, all the outputs must be equally loaded.
If the CLK(1-2) outputs are less loaded than CLKOUT, CLK(1-2) outputs will lead it; if the
CLK(1-2) is more loaded than CLKOUT, CLK(1-2) will lag the CLKOUT.
Since the CLKOUT and the CLK(1-2) outputs are identical, they all start at the same time,
but difference loads cause them to have different rise times and different times crossing
the measurement thresholds.
REF
CLKOUT
CLK(1-2)
Zero Delay
REF input and all outputs are equally loaded
REF
CLKOUT
CLK(1-2)
REF input and CLK(1-2) outputs are equally loaded,
with CLK(1-2) less loaded than CLKOUT.
Advanced
REF
CLKOUT
CLK(1-2)
Delayed
REF input and CLK(1-2) outputs loaded equally,
withCLK(1-2) more loaded then CLKOUT.
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
