Board Connector, 6 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug

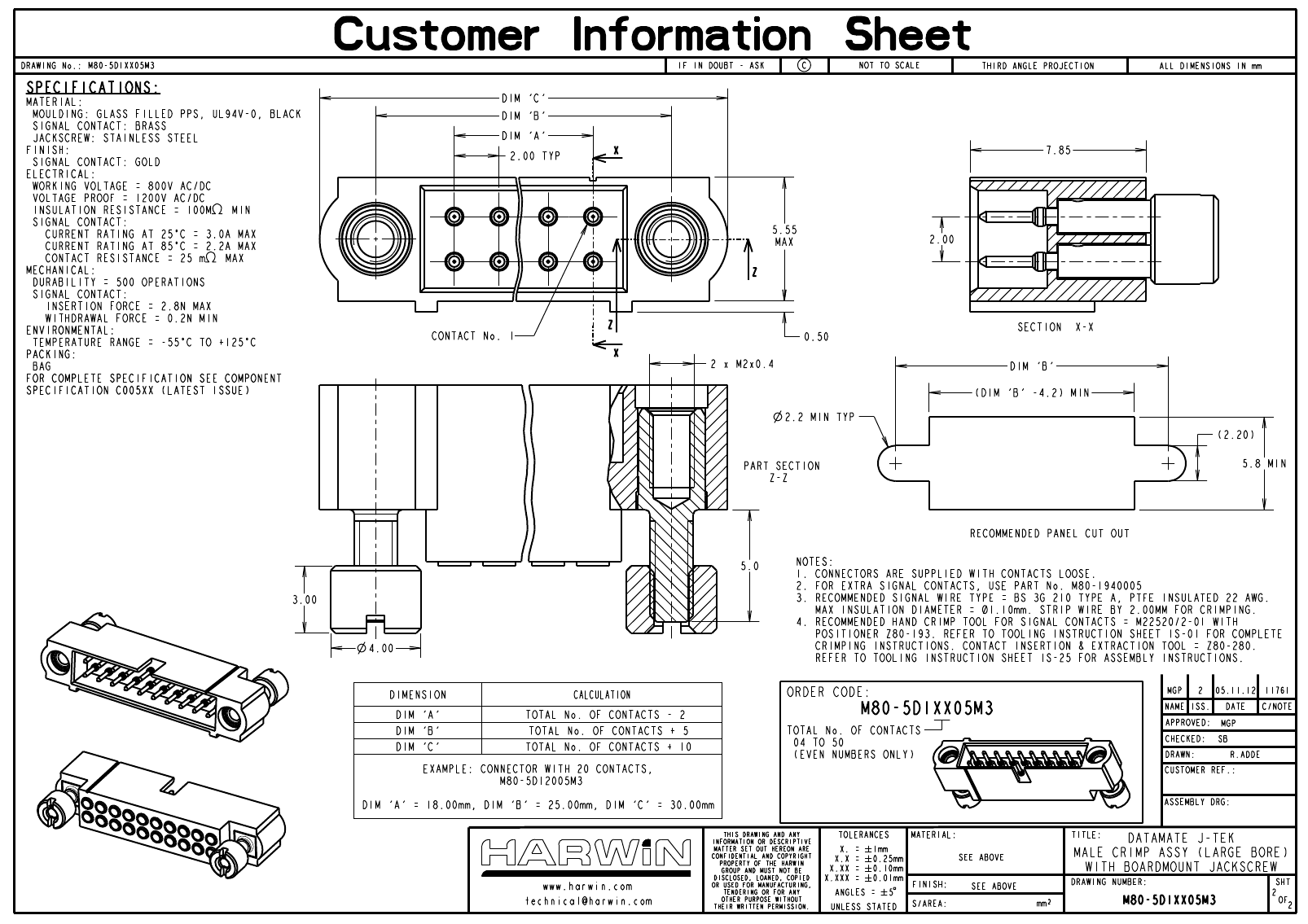

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 1326780154 |
| Reach Compliance Code | compliant |
| Country Of Origin | UK |
| ECCN code | EAR99 |
| Samacsys Description | Datamate J-Tek DIL Male Large Bore (22AWG) Crimp Connector, gold, with jackscrews + Vertical 5mm board mount, 3+3 contacts |
| Samacsys Manufacturer | Harwin |
| Samacsys Modified On | 2020-07-23 05:43:34 |
| YTEOL | 8 |
| body width | 0.236 inch |
| subject depth | 0.309 inch |
| body length | 0.63 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contactor design | LOOSE |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Gold (Au) |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 25 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 500VAC V |
| Durability | 500 Cycles |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULFIDE |
| JESD-609 code | e4 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation option 2 | JACKSCREW |
| Installation type | CABLE |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Termination type | CRIMP |
| Total number of contacts | 6 |
| Maximum wire diameter | 22 AWG |
| M80-5D10605M3 | M80-5D12605M3 | M80-5D10405M3 | |
|---|---|---|---|
| Description | Board Connector, 6 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug | Board Connector, 26 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug | Board Connector, 4 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Black Insulator, Plug |
| Is it Rohs certified? | conform to | conform to | conform to |
| Objectid | 1326780154 | 1326780174 | 1326780152 |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| body width | 0.236 inch | 0.236 inch | 0.236 inch |
| subject depth | 0.309 inch | 0.309 inch | 0.309 inch |
| body length | 0.63 inch | 1.417 inch | 0.551 inch |
| Body/casing type | PLUG | PLUG | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contactor design | LOOSE | LOOSE | LOOSE |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT APPLICABLE |
| Contact point gender | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT APPLICABLE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 25 mΩ | 25 mΩ | 25 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULFIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULFIDE |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING |
| Installation option 2 | JACKSCREW | JACKSCREW | JACKSCREW |
| Installation type | CABLE | CABLE | CABLE |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 3 A | 3 A | 3 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Termination type | CRIMP | CRIMP | CRIMP |
| Total number of contacts | 6 | 26 | 4 |
| Maximum wire diameter | 22 AWG | 22 AWG | 22 AWG |
| Contact completed and terminated | Gold (Au) | Gold (Au) | - |
| JESD-609 code | e4 | e4 | - |
