33_SMA-N-50-51/1--_NE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size123KB，2 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

33_SMA-N-50-51/1--_NE Overview

RF Adapters - Between Series

33_SMA-N-50-51/1--_NE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	SMA-N
Other features	STANDARDS: IEC 60169-15; MIL-STD-348A/405
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE/PPH
MIL compliance	YES
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

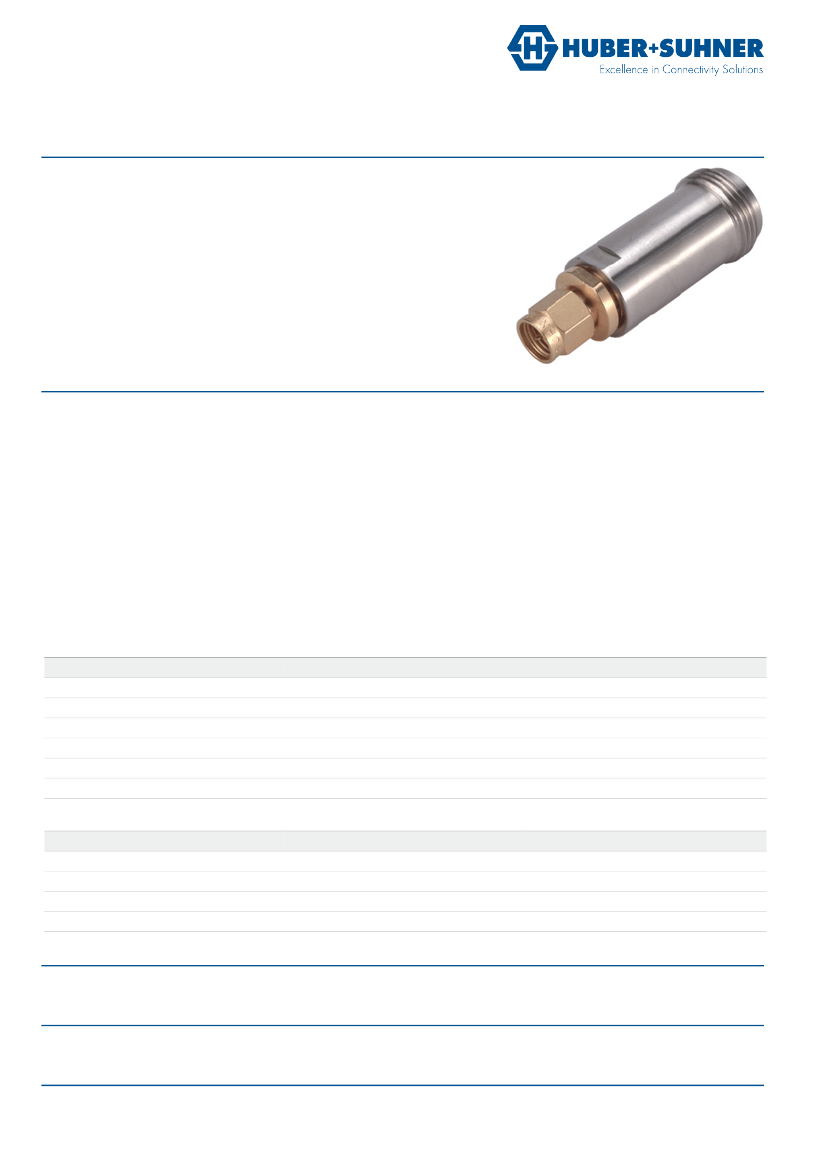

Data Sheet

Between Series Adaptor

33_SMA-N-50-51/1--_N

Description

Adaptor plug/jack

SMA-precision plug (male) / N-precision jack (female)

Precision adaptor

For Test & Measurement applications

Interface standards

Series SMA-precision - IEC 60169-15_MIL-STD-348A/405_CECC 22110

Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

Electrical length

50 Ω

18 GHz

DC - 18 GHz

≤ 1.025 + 0.007 f (GHz)

35.01 mm

Mechanical Data

Number of matings

Weight

500

0.0351 kg

Environmental Data

Operating temperature

2011/65/EC (RoHS)

-55 °C to 70 °C

compliant

Material Data

Interface - SMA-precision plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Copper Beryllium Alloy

PFA / PTFE

Bronze

VMQ (Silicone rubber)

Gold Plating (Nickel underplated)

Surface Plating

Gold Plating (Nickel underplated)

Interface - N-precision jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Stainless Steel

Air Dielectric - Bead - PPH

Surface Plating

Gold Plating (Nickel underplated)

Passivated (Plating)
