TECHNICAL DATA SHEET
N 50
PANEL JACK
53K401-117N5

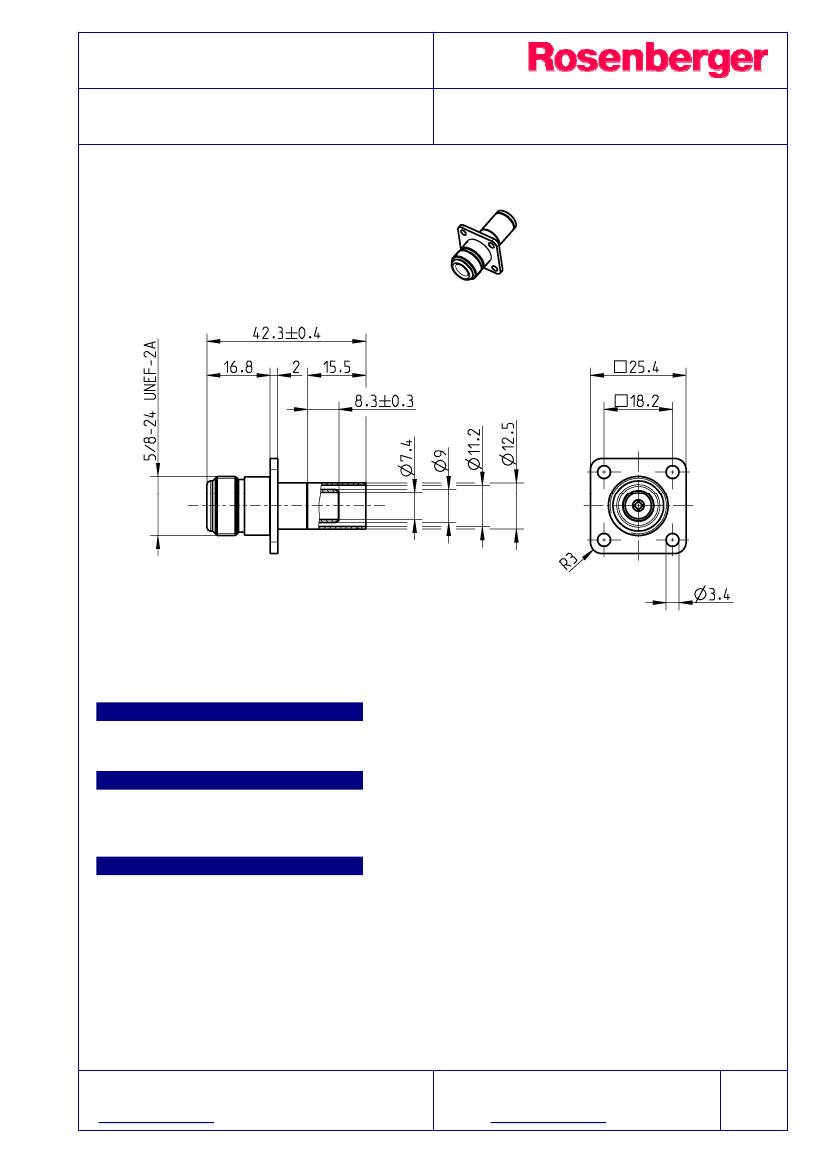

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
Assembly instruction
Panel piercing
53 O3
B 12
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Crimping ferrule
Material
CuBe
Brass
Brass
PTFE
Copper
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
N 50
Electrical data
Impedance
Frequency
Return loss
PANEL JACK
50
DC to 11 GHz
35 dB, DC to 1 GHz
25 dB, 1 to 2 GHz
20 dB, 2 to 6 GHz
0.05 dB, DC to 6 GHz
5 x10
3
M
1 m
0.25 m
500 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
128 dB up to 1 GHz
53K401-117N5
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Coupling test torque
Recommended torque
min. 500
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-55°C to +155°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
I
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-215
Suitable cables
RG 214 /U, RG 393 /U
Weight
Weight
37.2 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
22/06/04
Approved
J_Gramsamer
Date
15.04.15
Rev.
f00
Engineering change number
15-0397
Name
J_Krautenb.
Date
15.04.15
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
2/2
