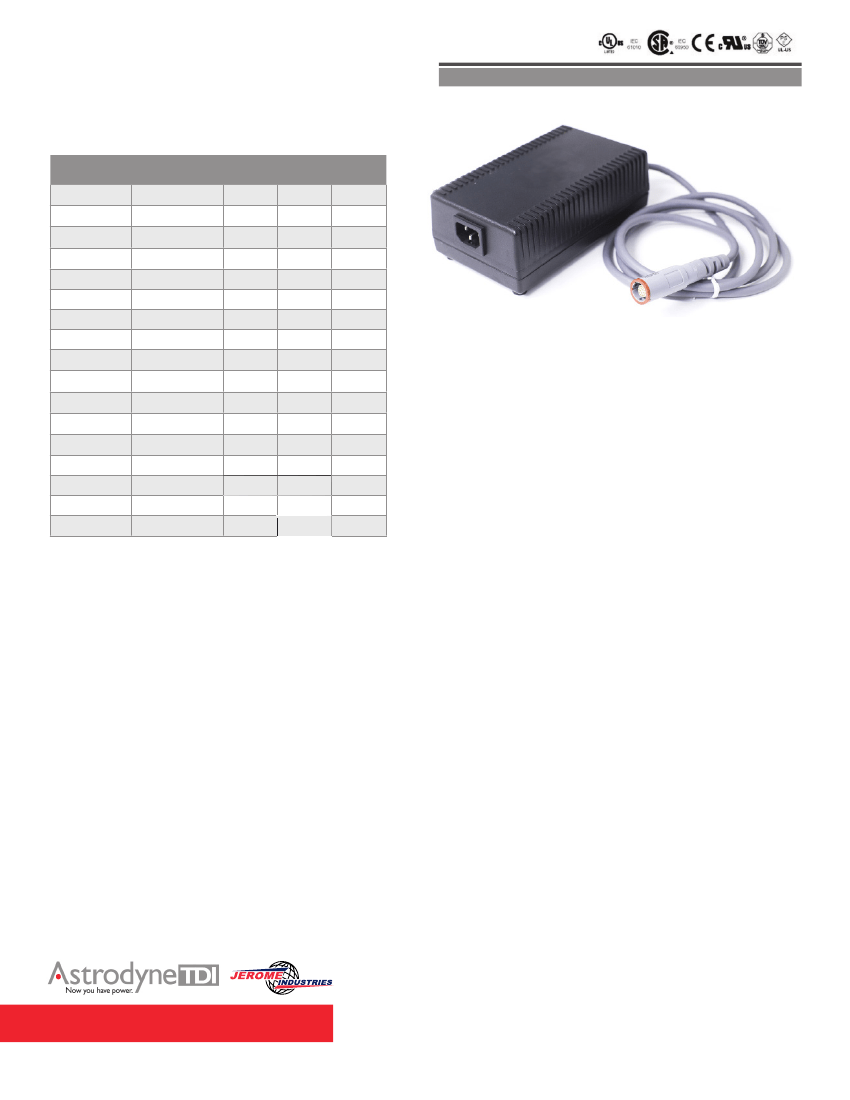

WSZ 800 SERIES, 135 WATTS
CF Option in UL File 3
rd
Edition
MODEL NUMBER
CF LOW LEAKAGE
(Y = YES)
VDC
AMPS
WATTS
HIGH EFFICIENCY, COMPACT DESIGN SWITCHMODE TECHNOLOGY
WSZ812
WSZ813
WSZ814
WSZ815
WSZ816
WSZ818
WSZ820
WSZ822
WSZ824
WSZ826
WSZ828
WSZ830
WSZ8632
WSZ836
WSZ840
WSZ844
WSZ848
Y
Y
Y
Y
Y
Y
Y
Y
12
13
14
15
16
18
20
22
24
26
28
30
32
36
40
44
48
11.2
10.4
9.6
9
8.4
7.5
6.75
6.1
5.6
5.2
4.8
4.5
4.2
3.75
3.4
3.1
2.8
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
135
Z-CASE
UL, cUL, TUV Certified CE marked for European Compliance
Standard Specifications
• Universal Input Voltage: 90-264Vac 47-63Hz Class I or II
• Output Voltage Tolerance: +/-2.5% Typical, +/-5% Max, from
Full Load to No Load.
• Operating Temperature: 0 - 40°C
• Maximum Output Ripple:
• 5 - 6V: 50mVp-p
• 6.1 - 24V: 100mVp-p
• 24.1 - 36V: 150mVp-p
• 36.1 - 48V 200mVp-p
• Designed for Continuous Duty
• Hold-Up Time : 20mS Minimum @ 120 Vin
• Short Circuit and Over Load Protection
• SELV Output
• MTBF Calculated > 100,000 Hours @ 40°C
• 2 Hour Minimum Loaded Burn-in at 40°C Ambient for
standard output cord configurations
• Leakage current compliant to IEC60601-1 Category B and BF
• 5 Year Warranty
*Add a suffix, “M” for Medical or leave it blank for non-medical.
Regulatory Compliance
Designed for use with medical, information technology, and gen-
eral purpose equipment to the following standards: All models are
approved to:
•
•
•
•
•
UL 60601-1 / 60950-1
CSA 22.2 601-1 / 60950-1
TUV EN 60601-1 / 60950-1
CE LVD directive
*cUL Mark
Available Features
•
•
•
•
•
•
•
•
•
•
•
Precision Output Voltage setting
Expanded Operating Temperatures
Power On/Off Switch
400 Hz Input Rating
DC Input Rating
Additional Noise and/or Surge Protection
LED Power On Indicator
Fixed-in-place Input Cord
Output Cord Sets and Connector Configurations
Case Colors, Markings & Logos
16 Hour Burn-in
EMC: All models meet European EMC directive and FCC requirements.
Meets all EMC requirements from EN60601-1-2.
Emissions: Level B requirements of FCC CFR 47 part 15 and CISPR11
(EN55011) and CISPR22 (EN55022), EN61000-6-3 (light industrial)
and line harmonic emissions EN61000-3-2.
Immunity: CISPR24 (EN55024), EN61326 and EN61000-3-2.
Certification records are available upon project request.
All specifications are typical at nominal input, full load, and 25°C unless
otherwise noted
www.AstrodyneTDI.com
PH: 908-353-5700 | FAX: 908-353-1021
© Copyright 2015, Astrodyne, Inc
This document is believed to be correct at time of publication and Astrodyne, Inc
accepts no responsibility for consequences from printing errors or inaccuracies.
Specifications are subject to change without notice
WSZ 800 SERIES, 135 WATTS

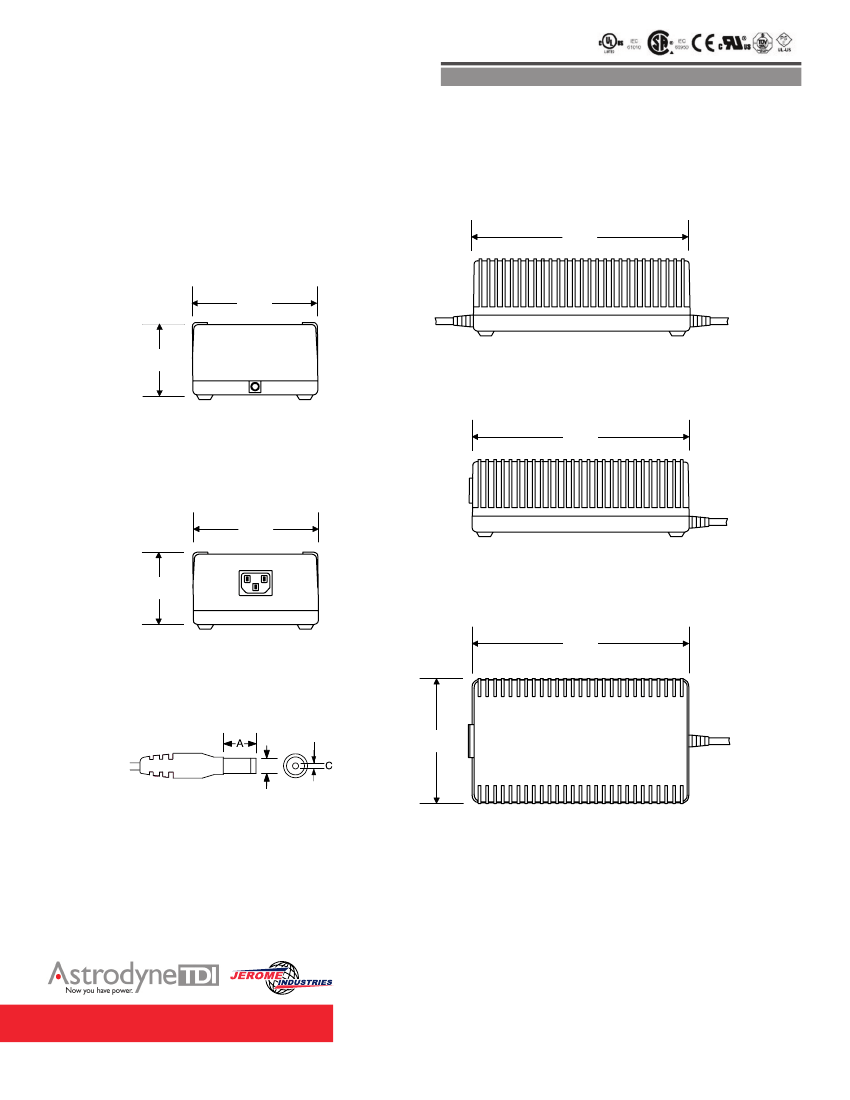

Z CASE ENCLOSURE
HIGH EFFICIENCY, COMPACT DESIGN SWITCHMODE TECHNOLOGY
6.50
3.75
2.17
B. INPUT CORD OPTION
IEC 320 OPTION
USED FOR MOST
INTERNATIONAL APPLICATIONS
6.50
3.75
2.17
VARIOUS INPUT AND OUTPUT CORD
OPTIONS AVAILABLE
C. IEC 320 OPTION
6.50
3.75
TOP SURFACE MARKING
AREA = 6.15 X 2.42
www.AstrodyneTDI.com
PH: 908-353-5700 | FAX: 908-353-1021
© Copyright 2015, Astrodyne, Inc
This document is believed to be correct at time of publication and Astrodyne, Inc
accepts no responsibility for consequences from printing errors or inaccuracies.
Specifications are subject to change without notice
