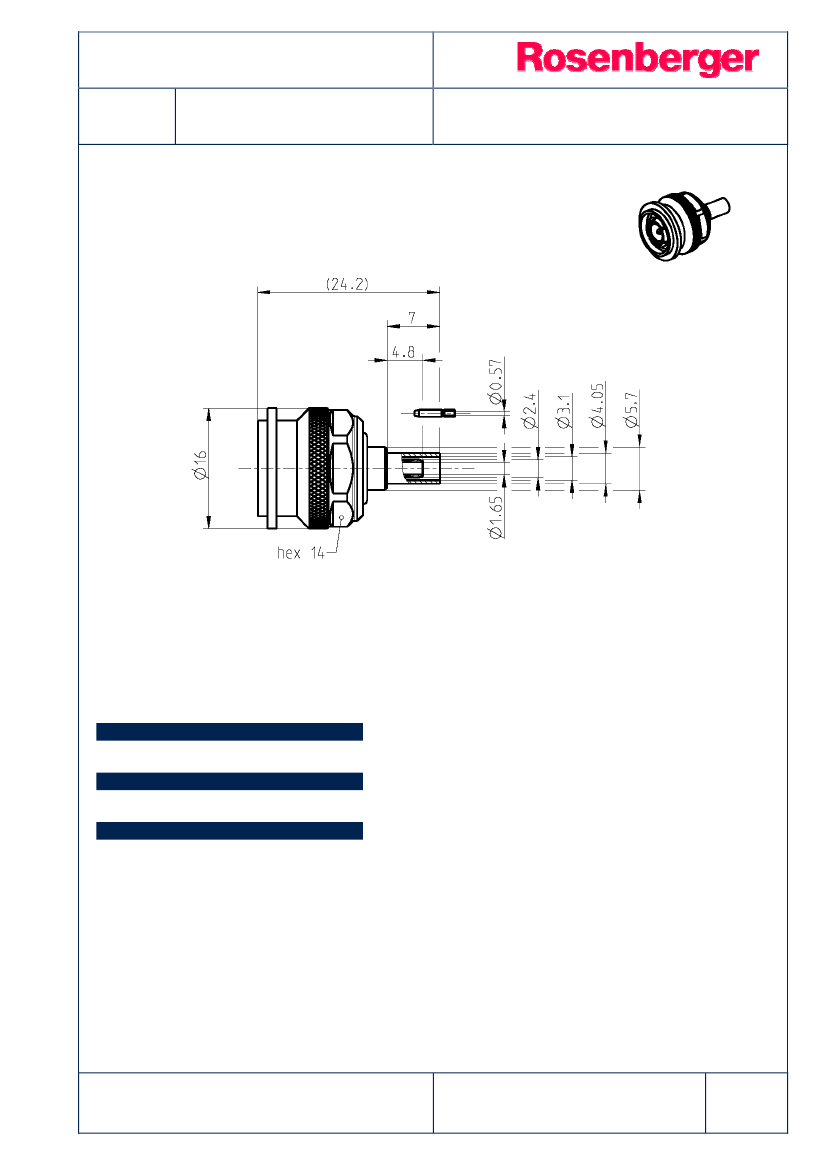

Technical Data Sheet
TNC 50
STRAIGHT PLUG
56S107-802N5
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-17, MIL-PRF-39012, DIN EN 122200
51 T
Documents
Assembly instruction
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Crimping ferrule
Material
Plating
Spring bronze
AuroDur®, gold plated
Brass
Flash white bronze over silver(e.g. Optargen®)
Brass
Flash white bronze over silver(e.g. Optargen®)
PTFE
NeopreneCR 50C6
Copper
Flash white bronze over silver(e.g. Optargen®)
RF_35/08.13/6.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
TNC 50
STRAIGHT PLUG
56S107-802N5
50
DC to 10 GHz
28 dB, DC to 1 GHz
25 dB, 1 to 2 GHz
20 dB, 2 to 10 GHz
0.05 x
f [GHz]
dB
5 G
1.5 m
1 m
1500 V rms
500 V rms
80 W @ 2 GHz
Electrical data
Impedance
Frequency
Return loss
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
500
15 N
1.7 Nm
0.46 Nm to 0.69 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-45 °C to +85 °C
MIL-STD-202, Method 107, Condition B
MIL-STD-202, Method 101, Condition B
MIL-STD-202, Method 204, Condition B
MIL-STD-202, Method 213, Condition G
MIL-STD-202, Method 106
compliant
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-402
Suitable cables
RG 316 /U, RG 174 A/U, RG 188 A/U
Weight
Weight
12.9 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
Date
10.08.04
Approved
Sa. Krautenbacher
Date
20.03.14
Rev.
d00
Engineering change number
14-0352
Name
T. Krojer
Date
20.03.14
RF_35/08.13/6.1
Inge Mühlauer
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
2/2
