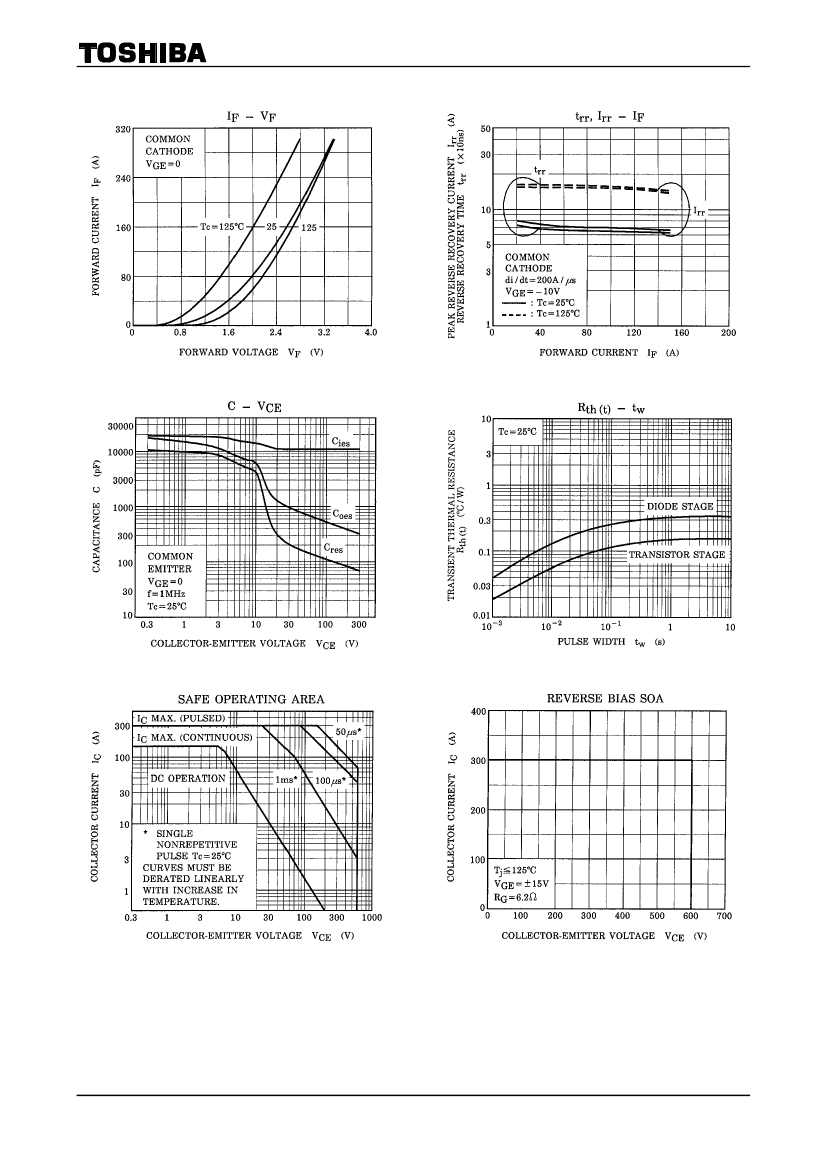

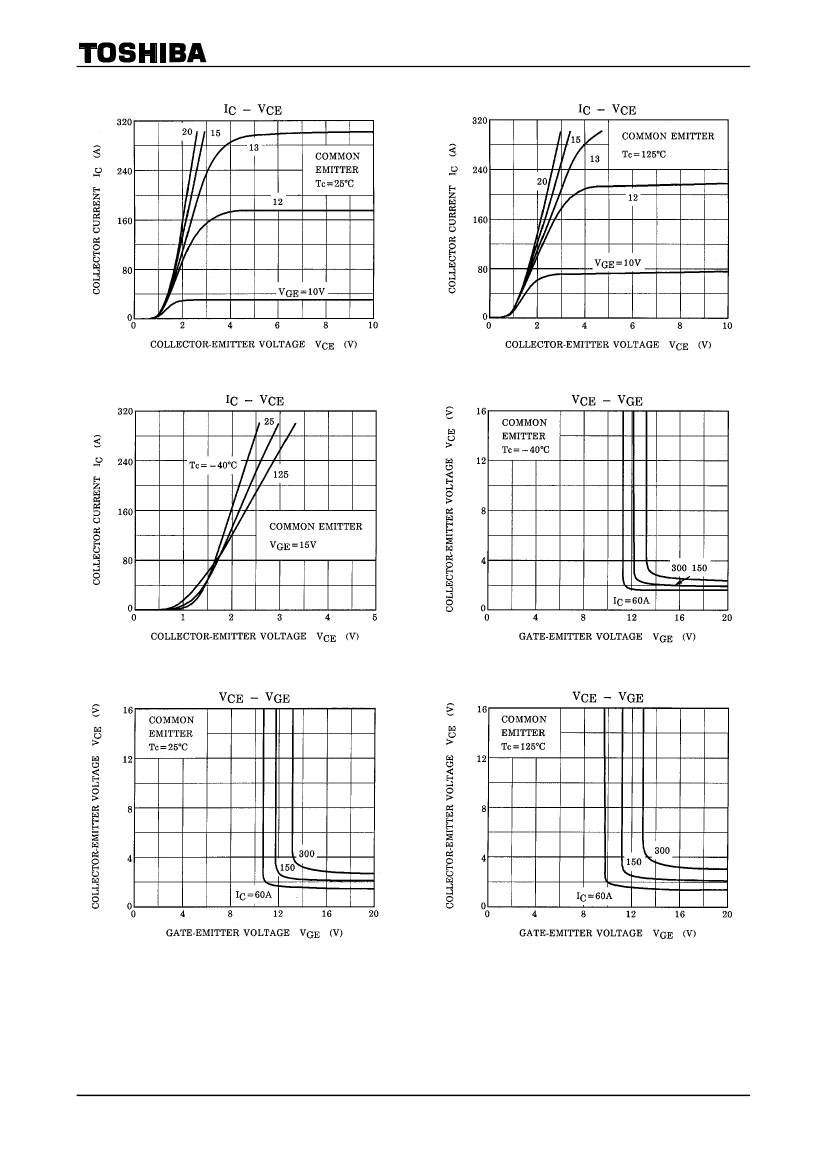

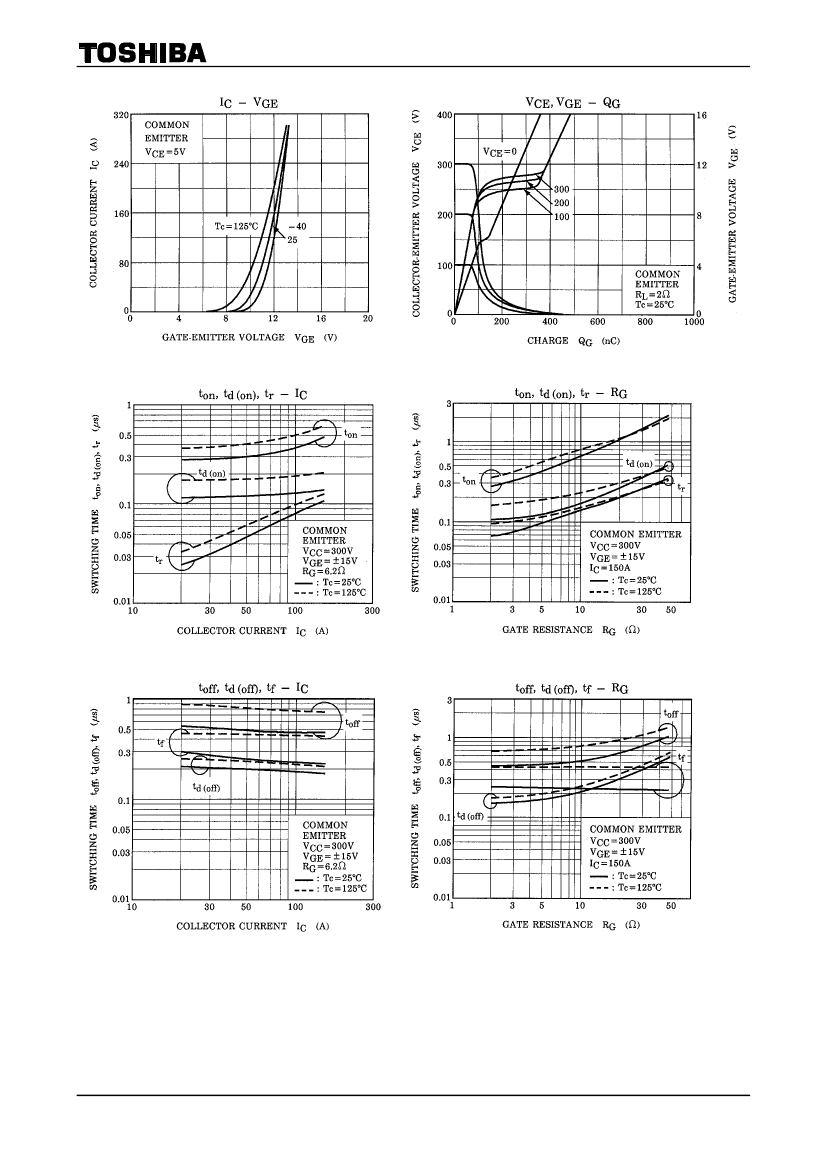

High Power Switching Applications Motor Control Applications

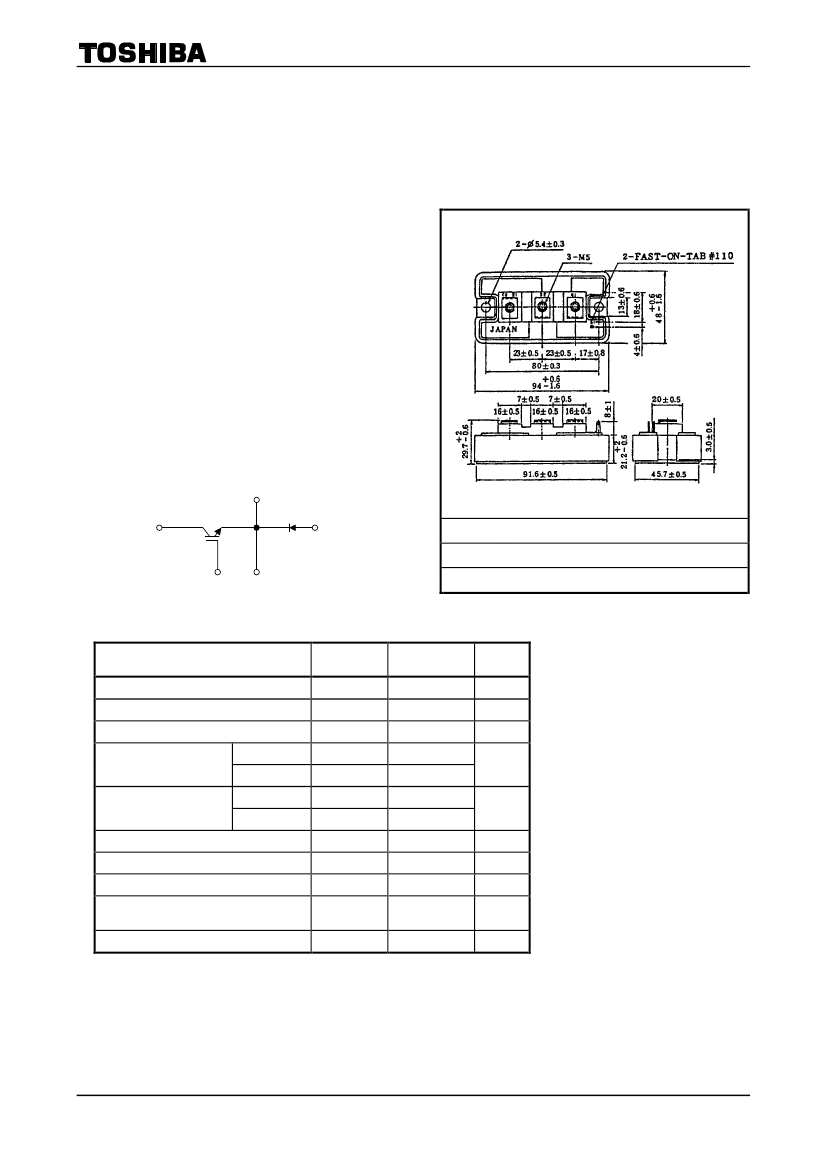

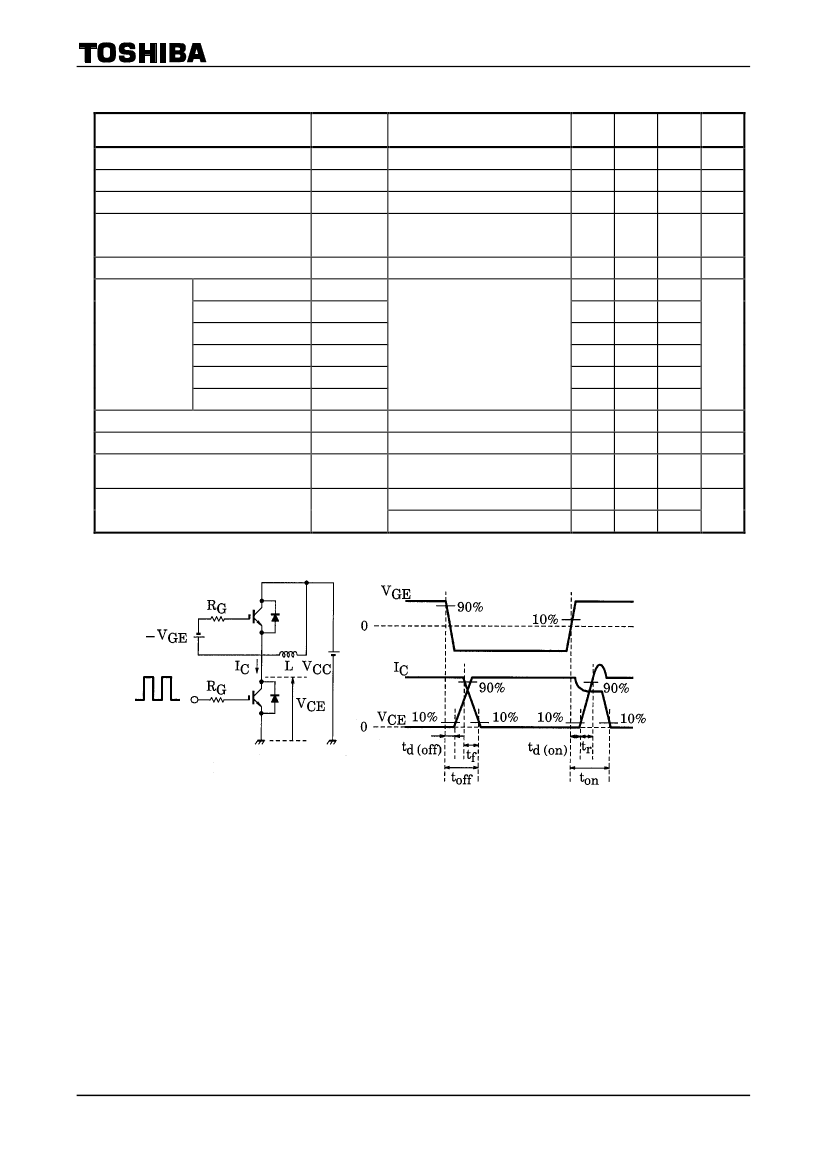

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Toshiba Semiconductor |
| package instruction | FLANGE MOUNT, R-XUFM-X5 |
| Contacts | 5 |
| Reach Compliance Code | unknow |
| Other features | HIGH SPEED |
| Shell connection | ISOLATED |
| Maximum collector current (IC) | 150 A |
| Collector-emitter maximum voltage | 600 V |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Maximum landing time (tf) | 300 ns |
| Gate emitter threshold voltage maximum | 8 V |
| Gate-emitter maximum voltage | 20 V |
| JESD-30 code | R-XUFM-X5 |
| Number of components | 1 |
| Number of terminals | 5 |
| Maximum operating temperature | 150 °C |
| Package body material | UNSPECIFIED |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | 240 |
| Polarity/channel type | N-CHANNEL |
| Maximum power consumption environment | 780 W |
| Maximum power dissipation(Abs) | 780 W |
| Certification status | Not Qualified |
| Maximum rise time (tr) | 300 ns |
| surface mount | NO |
| Terminal form | UNSPECIFIED |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | MOTOR CONTROL |
| Transistor component materials | SILICON |
| Nominal off time (toff) | 500 ns |
| Nominal on time (ton) | 500 ns |
| VCEsat-Max | 2.7 V |
