TECHNICAL DATA SHEET
FAKRA - HF
STRAIGHT JACK
59K17H-109A4-Y

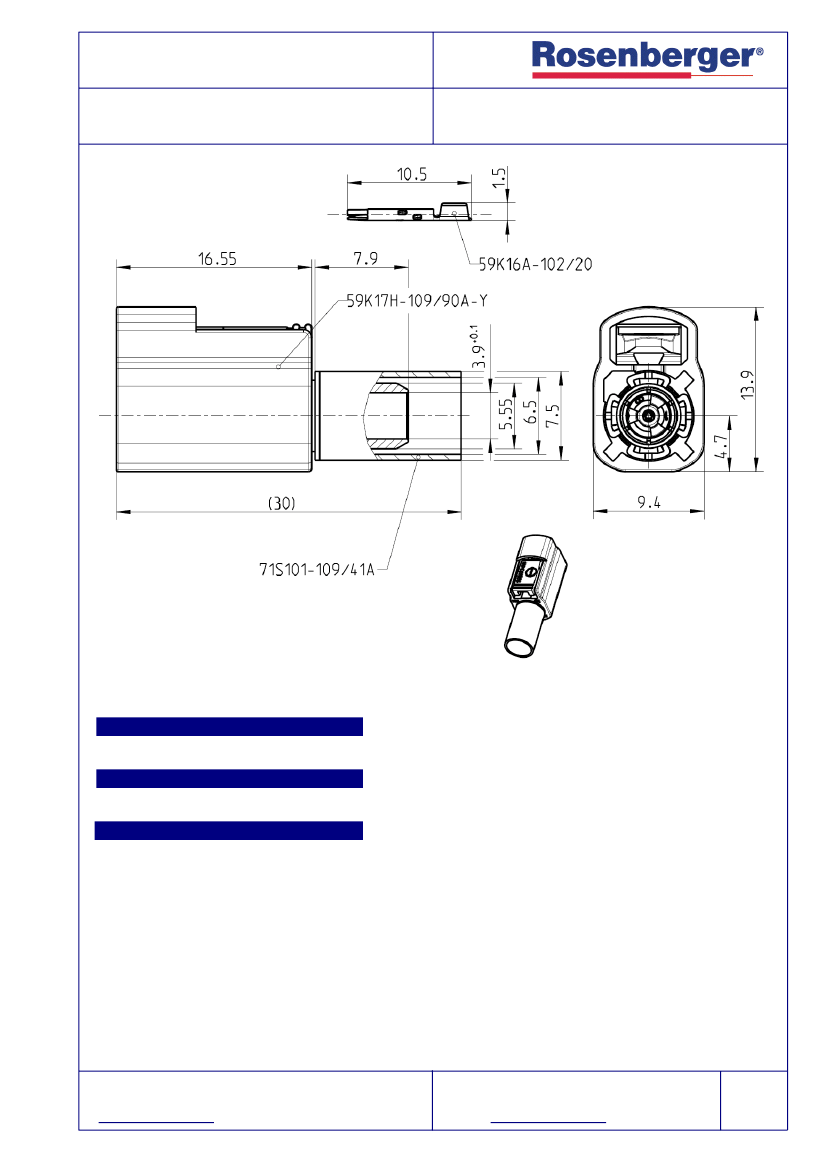

All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification
Interface
According to
DIN 72594-1, USCAR 17
Documents
Assembly instruction
MA_59V056
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Crimping ferrule
Lock washer
Housing
Material
Spring bronze
Brass
PA 12
Copper
Steel
PBT
Plating
Gold, min. 0.8 µm, over chemical nickel
Nickel, 3-6 µm
Nickel, 2.5-5 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
FAKRA - HF
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power current
RF-leakage
50
Ω
*
DC to 1 GHz
≥
N/A
≤
0.1 x
f(GHz)
dB
≥
1x10
3
MΩ
≤
5 mΩ
≤
5 mΩ
750 V rms
335 V rms
≤
1 A DC
≥
65 dB up to 1 GHz
STRAIGHT JACK
59K17H-109A4-Y
- Limitations are possible due to the used cable type - * Interface only
Mechanical data
Mating cycles
Engagement force
Disengagement force
Retention force latch
Retention force primary lock
Coding efficiency
≥
≤
≥
≥
≥
≥
25
25 N
2N
110 N
110 N
40 N
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
2002/95/EC (RoHS)
-40°C to +105°C
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
compliant
6.2
6.3
6.1
6.4
- Limitations are possible due the used cable type -
Tooling
Crimping tool
Crimp insert outer contact
Crimping tool -
Incl. Crimp insert center contact RG59
Crimping tool -
Incl. Crimp insert center contact RG62
11W150-000
11W150-109
11W161-800
11W161-809
Suitable cables
Cable type
Packing
Standard
Weight
RG 62 CommScope
RG 59 CommScope
500, 5000, 20000 pcs in box
4.26 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Denis Oberhöller
Date
20/04/06
Approved
Höfling
Date
10.07.09
Rev.
f00
Engineering change number
09-0461
Name
M. Singhammer
Date
06/07/09
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
