0.5 Nm RPT5 1.4 and 3.2 Watts 1.4 W Part number 82712008
Gearbox 0.5 Nm
Motor power max. 3.2 W
Class A EMC interference suppression (radiated)
Compatible with 6 V, 9 V or 12 V battery power supply
Optional class B interference suppression
Optional 1, 5, 12 or 48 pulses/rev encoder
Part numbers
Type
82712008
1.4 W
Type
827120
Voltage
24 V
Output speed (rpm)
342
Ratios (i)
9,76
Specifications
General characteristics
Motor
Gearbox
Maximum permitted torque from gearmotor under
continuous conditions (for 0.5 million turns) (Nm)
Axial load static (daN)
Radial load static (daN)
Max. output power (W)
Nominal output (W)
Gearbox case temperature rise (°C)
Weight (g)
82710002
810220
0,5
1
4
1,4
1
40
80
Made to order products, available on request
For more than 1000 pieces
48 pulses/rev encoder
Class B filter
Case N°2 (for other fixing points see diagram) ; check whether mounting is possible
Gearbox shaft
Connections
For other types please consult Crouzet

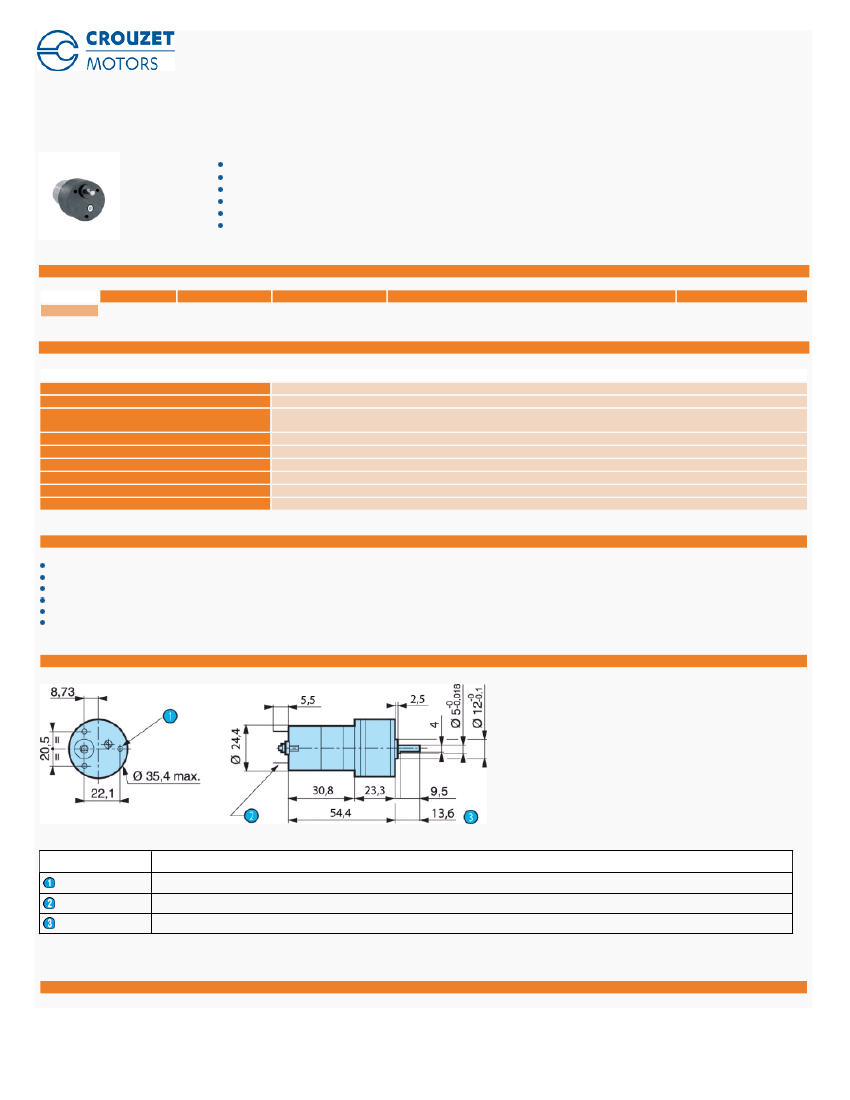

Dimensions (mm)
827120
N
o
Legend
3 fixing holes M3
2 solder tags 2.8 x 0.5 mm
(Pushed-in shaft )
Curves

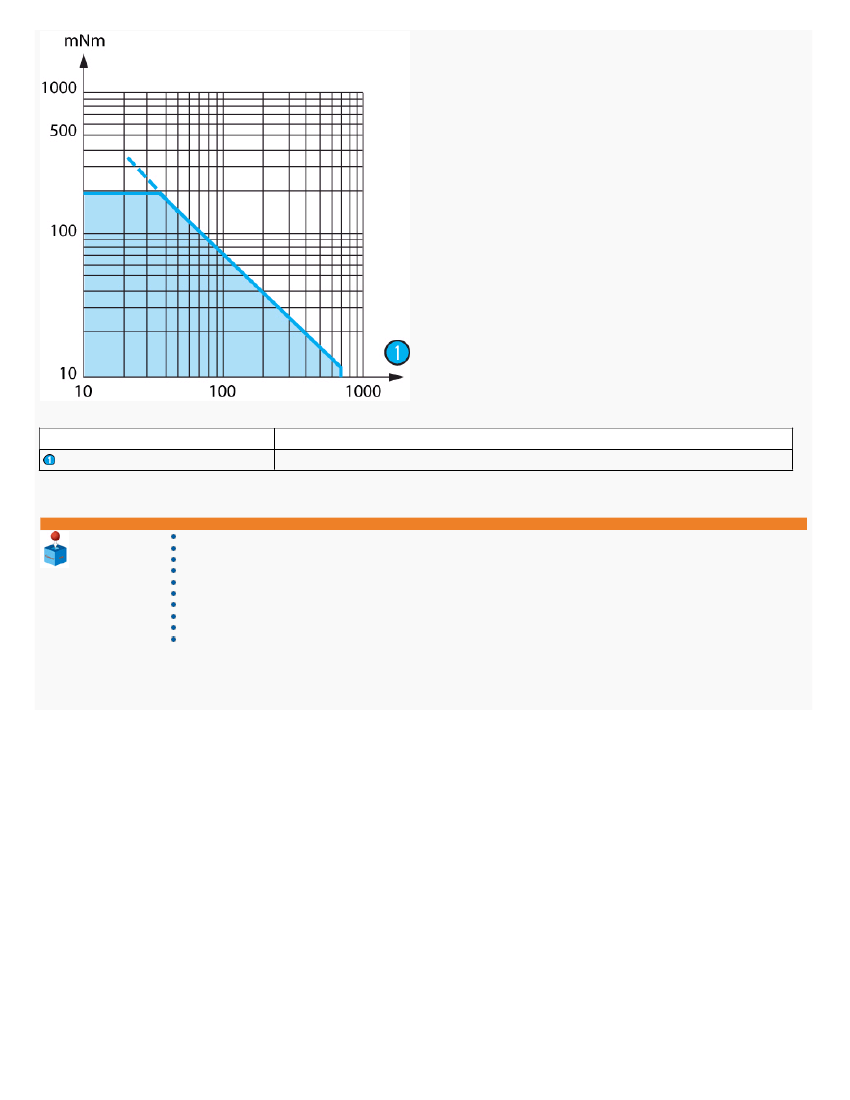

Curve : torque/nominal speed 827120
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
rpm
Product adaptations
Special supply voltage
Lead output
Special connectors
Special shaft
Special reduction ratio
Special materials for gears
Special adaptor plate
Class B EMC filter
Greasing at low temperature
1 to 48 pulses/revolution encoder
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
