82722010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 82722010

82722010: DescriptionCrouzet 3.2W 24VDC RATIO:30.; File Size73KB，2 Pages; ManufacturerCrouzet

Download Datasheet Parametric View All

82722010 Overview

Crouzet 3.2W 24VDC RATIO:30.

82722010 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Crouzet
Product Category	Crouzet

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

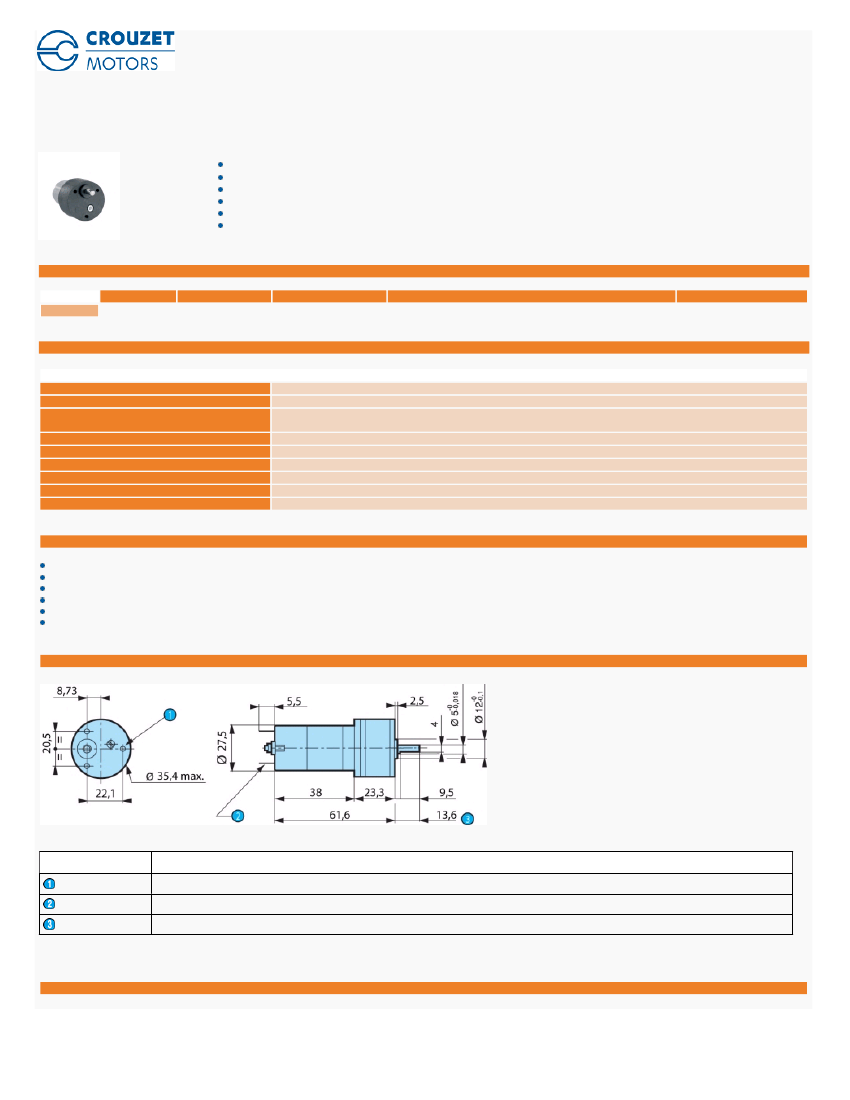

0.5 Nm RPT5 1.4 and 3.2 Watts 3.2 W Part number 82722010

Gearbox 0.5 Nm

Motor power max. 3.2 W

Class A EMC interference suppression (radiated)

Compatible with 6 V, 9 V or 12 V battery power supply

Optional class B interference suppression

Optional 1, 5, 12 or 48 pulses/rev encoder

Part numbers

Type

82722010

3.2 W

Type

827220

Voltage

24 V

Output speed (rpm)

109

Ratios (i)

30,5

Specifications

General characteristics

Motor

Gearbox

Maximum permitted torque from gearmotor under

continuous conditions (for 0.5 million turns) (Nm)

Axial load static (daN)

Radial load static (daN)

Max. output power (W)

Nominal output (W)

Gearbox case temperature rise (°C)

Weight (g)

82720002

810220

0,5

3,2

2,6

100

Made to order products, available on request

For more than 1000 pieces

48 pulses/rev encoder

Class B filter

Case N°2 (for other fixing points see diagram) ; check whether mounting is possible

Gearbox shaft

Connections

For other types please consult Crouzet

Dimensions (mm)

827220

Legend

3 fixing holes M3

2 solder tags 2.8 x 0.5 mm

(Pushed-in shaft )

Curves

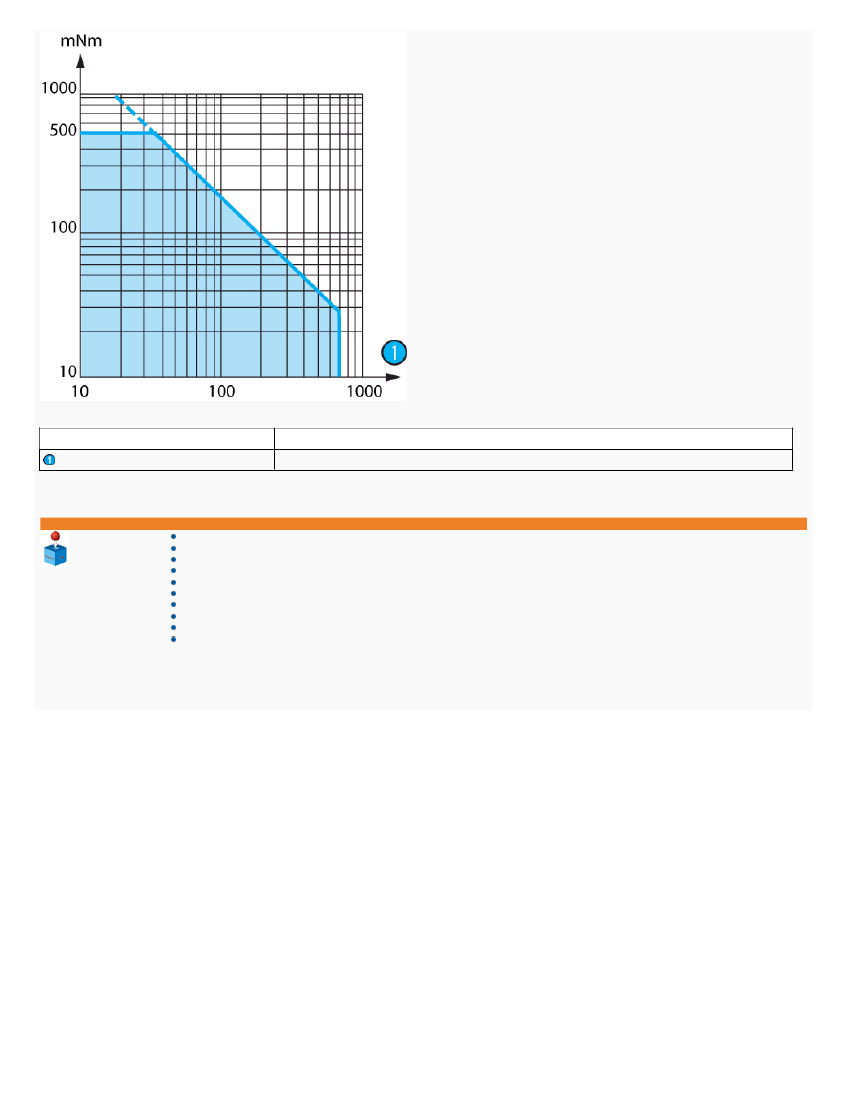

Curve : torque/nominal speed 827220

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
