1N4614
THRU
1N4125
500mW Silicon
Zener Diodes
DO-35
Features
•
•
•
Zener Voltage Range = 1.8V to
47V
Double Slug Type Construction
Metallurgical Bonded Construction
Mechanical Data
•
•
Case: Double slug type, hermetically sealed glass
Marking : Cathode band and type number
Maximum Ratings
Symbol
Max. Steady State Power
Dissipation at
T
L
<75
O
C, Lead Length=3/8”
Junction Temperature
Storage Temperature Range
Thermal Resistance, Junction
to lead @3/8" lead length
from body
P
D
T
J
T
STG
RthJL
Value
500
175
-55 to 175
250
o
D
Units
mW
o
o
A
Cathode
Mark
B
C
C
D
C/W
C
Electrical Characteristics @ 25°C Unless Otherwise Specified
Symbol
Max. Forward Voltage
@ I
F
=200mA
V
F
Maximum
1.1
Unit
V
DIMENSIONS
INCHES
MIN
---
---
---
1.000
MM
MIN
---
---
---
25.40
DIM
A
B
C
D
MAX
.166
.079
.020
---
MAX
4.2
2.00
.52
---
NOTE
Revision: 3
www.mccsemi.com
1 of 5
2007/02/05
1N4614 thru 1N4125
MCC
Micro Commercial Components
TM
ELECTRICAL CHARACTERISTICS
(T
A
= 25ºC unless otherwise noted, V
F
= 1.1 V Max @ I
F
= 200mA for all types)
Zener Voltage
(2)
Device
(1)
1N4614
1N4615
1N4616
1N4617
1N4618
1N4619
1N4620
1N4621
1N4622
1N4623
1N4624
1N4625
1N4626
1N4627
1N4099
1N4100
1N4101
1N4102
1N4103
1N4104
1N4105
1N4106
1N4107
1N4108
1N4109
1N4110
1N4111
1N4112
1N4113
1N4114
1N4115
1N4116
1N4117
1N4118
1N4119
1N4120
1N4121
1N4122
1N4123
1N4124
1N4125
Device
Marking
1N4614
1N4615-
1N4616-----
1N4617-
1N4618---
1N4619
1N4620
1N4621-
1N4622--
1N4623--
1N4624---
1N4625-
1N4626------
1N4627--
1N4099
1N4100
1N4101
1N4102
1N4103
1N4104-
1N4105
1N4106
1N4107
1N4108
1N4109
1N4110
1N4111
1N4112
1N4113
1N4114
1N4115
1N4116
1N4117
1N4118
1N4119
1N4120
1N4121
1N4122
1N4123
1N4125
1N4125
---
---
--
--
V
Z
(Volts)
@
I
ZT=250UA
Min
1.71
1.90
2.09
2.28
2.565
2.85
3.135
3.42
3.705
4.085
4.465
4.845
5.32
5.89
6.46
7.125
7.79
8.265
8.645
9.5
10.45
11.4
12.35
13.3
14.25
15.2
16.15
17.1
18.05
19
20.9
22.8
23.75
25.65
26.6
28.5
31.35
34.2
37.05
40.85
44.65
Maximum
Reverse
Leakage Current
(4)
Zener Impedance
(5)
Zener (I
ZM
)
I
R
@V
R
Z
ZT
@
I
ZT
Current
Max
1.89
2.10
2.31
2.52
2.835
3.15
3.465
3.78
4.095
4.515
4.935
5.355
5.88
6.51
7.14
7.875
8.61
9.135
9.555
10.5
11.55
12.6
13.65
14.7
15.75
16.8
17.85
18.9
19.95
21
23.1
25.2
26.25
28.35
29.4
31.5
34.65
37.8
40.95
45.15
49.35
(3)
Nom
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
16
17
18
19
20
22
24
25
27
28
30
33
36
39
43
47
mA
120
110
100
95
90
87
85
83
80
77
75
70
65
61
56
51
46
44
42
38
35
32
29
27
25
24
22
21
20
19
17
16
1
15
14
14
1
13
12
11
9.8
8.9
8.1
uA(
Max
)
Volts
7.5
5.0
4.0
2.0
1.0
0.8
7.5
7.5
5.0
4.0
10.0
10.0
10.0
10.0
10.0
10.0
1.0
1.0
1.0
1.0
.05
.05
.05
.05
.05
.05
.05
.05
.05
.01
.01
.01
.01
.01
.01
.01
.01
.01
.01
.01
.01
1
1
1
1
1
1
1.5
2
2
2
3
3
4
5
5.17
5.70
6.24
6.61
6.92
7.60
8.44
8.12
9.857
10.65
11.40
12.15
12.92
13.67
14.44
15.20
16.72
18.25
19.00
20.45
21.28
22.80
25.08
27.38
29.65
32.65
35.75
ohm(
Max
)
1200
1250
1300
1400
1500
1600
1650
1700
1650
1600
1550
1500
1400
1200
200
200
200
200
200
200
200
200
200
200
100
100
100
100
150
150
150
150
150
150
200
200
200
200
200
250
250
NOTES:
1. TOLERANCE AND TYPE NUMBER DESIGNATION (V
Z
)
The type numbers listed have a standard tolerance on the nominal zener voltage of
±5%.
2. ZENER VOLTAGE (V
Z
) MEASUREMENT
Nominal zener voltage is measured with the device junction in the thermal equilibrium
.
at the lead temperature (T
L
) at 30°C
±1°C
and 3/8” lead length.
3. MAXIMUM ZENER CURRENT RATINGS (I
ZM
)
This data was calculated using nominal voltages. The maximum handing current
capability on a worst case basis is limited by the actual zener voltage at the opertation piont and the power derating curve.
.
4.Reverse
Leakage Current(
I
R
)
reverse leakage current are guaranteed and measured at V
R
shown on the table .
5.
Zener Impedance(
Z
ZT) Derivation
The Zener impedance is derived from the 60 cycle ac voltage.which results when an Ac
.
current having an rms value to 10% of the DC zener current (I
ZT
) is superimposed on I
ZT
.
Revision: 3
www.mccsemi.com
2 of 5
2007/02/05
1N4614 thru 1N4125
TEMPERA TURE COEFFICIENT (mV/
°
C)
+12
+10
+8
+6
+4
+2
RANGE
0
-2
-4
2
3
4
5
6
7
8
9
10
11
12
V
Z
, ZENER VOLTAGE (VOLTS)
V
Z
@ I
ZT
(NOTE 2)
MCC
Micro Commercial Components
TM
θ
VZ
,
Figure 1. Range for Units to 12 Volts
TEMPERATURE COEFFICIENT (mV/
°
C)
+6
V
Z
@ I
Z
TA= 25
°C
+4
+2
20mA
0
0.01mA
1mA
-2
NOTE: BELOW 3 VOLTS AND ABOVE 8 VOL TS
NOTE:
CHANGES IN ZENER CURRENT DO NOT
NOTE:
AFFECT TEMPERATURE COEFFICIENTS
3
4
5
6
7
8
θ
VZ
,
-4
V
Z
, ZENER VOL TAGE (VOLTS)
Figure 2. Effect of Zener Current
1000
500
0V BIAS
200
C, CAP ACIT ANCE (pF)
100
T
A
= 25
°
C
1V BIAS
50
20
10
5
2
1
1
2
5
10
20
50
100
V
Z,
ZENER VOLTAGE (VOLTS)
50% OF
V
Z
BIAS
Figure 3. Typical Capacitance 2.4-100 Volts
Revision: 3
www.mccsemi.com
3 of 5
2007/02/05

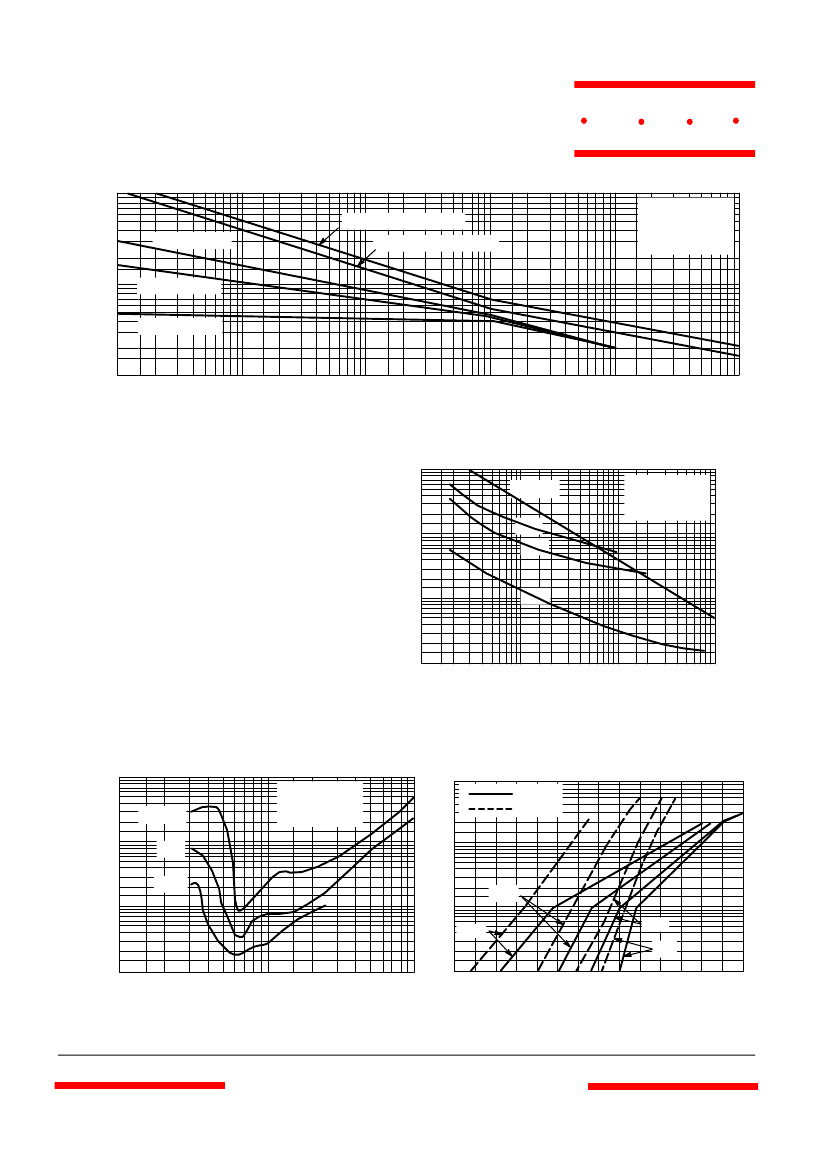

1N4614 thru 1N4125
100
P
pk
, PEAK SURGE POWER (WATTS)
70
50
30
20
10
7
5
3
2
1
0.01
20% DUTY CYCLE
5% DUTY CYCLE
11V-91V NONREPETITIVE
1.8V-10V NONREPETITIVE
MCC
Micro Commercial Components
RECT ANGULAR
WAVEFORM
T
J
= 25°C PRIOR TO
INITIAL PULSE
TM
10% DUTY CYCLE
0.02
0.05
0.1
0.2
0.5
1
2
5
10
20
50
100
200
500
1000
PW, PULSE WIDTH (ms)
Figure 4. Maximum Surge Power 1.8-91 Volts
1000
500
V
Z
= 2.7V
T
J
= 25
°
C
iZ (rms) = 0.1 Iz(dc)
f = 60 Hz
Z Z , DYNAMIC IMPEDANCE (OHMS)
200
100
50
20
10
5
2
1
0.1
0.2
0.5
1
2
5
10
20
50
100
6.2V
47V
27V
IZ , ZENER CURRENT (mA)
Figure 5. Effect of Zener Current on
Zener Impedance
1000
700
500
Z Z , DYNAMIC IMPEDANCE (OHMS)
I
Z
= 1mA
200
100
70
50
20
10
7
5
2
1
1
2
3
5
7
10
5mA
T
J
= 25
°
C
i
Z
(rms) = 0.1 I
Z
(dc)
f = 60Hz
1000
MAXIMUM
500
I F , FOR WARD CURRENT (mA)
200
100
50
20
10
5 150
°
C
2
1
25
°
C
0
°
C
75
°
C
MINIMUM
20mA
20
30
50
70 100
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
V Z , ZENER VOLTAGE (VOLTS)
V F , FOR WARD VOLTAGE (VOLTS)
Figure 6. Effect of Zener Voltage on Zener Impedance
Figure 7. Typical Forward Characteristics
Revision: 3
www.mccsemi.com
4 of 5
2007/02/05
MCC
Micro Commercial Components
TM
***IMPORTANT NOTICE***
Micro Commercial Components Corp
.
reserves the right to make changes without further notice to any
product herein to make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components Corp
.
does not assume any liability arising out of the application or
use of any product described herein; neither does it convey any license under its patent rights ,nor
the rights of others . The user of products in such applications shall assume all risks of such use
and will agree to hold
Micro Commercial Components Corp
.
and all the companies whose
products are represented on our website, harmless against all damages.
***APPLICATIONS DISCLAIMER***
Products offer by
Micro Commercial Components Corp
.
are not intended for use in Medical,
Aerospace or Military Applications.
www.mccsemi.com
Revision: 3
5 of 5
2007/02/05
