1722790000

Description
Board Connector, 9 Contact(s), 1 Row(s), Female, Screw Terminal, Socket
CategoryThe connector    The connector
File Size70KB,1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

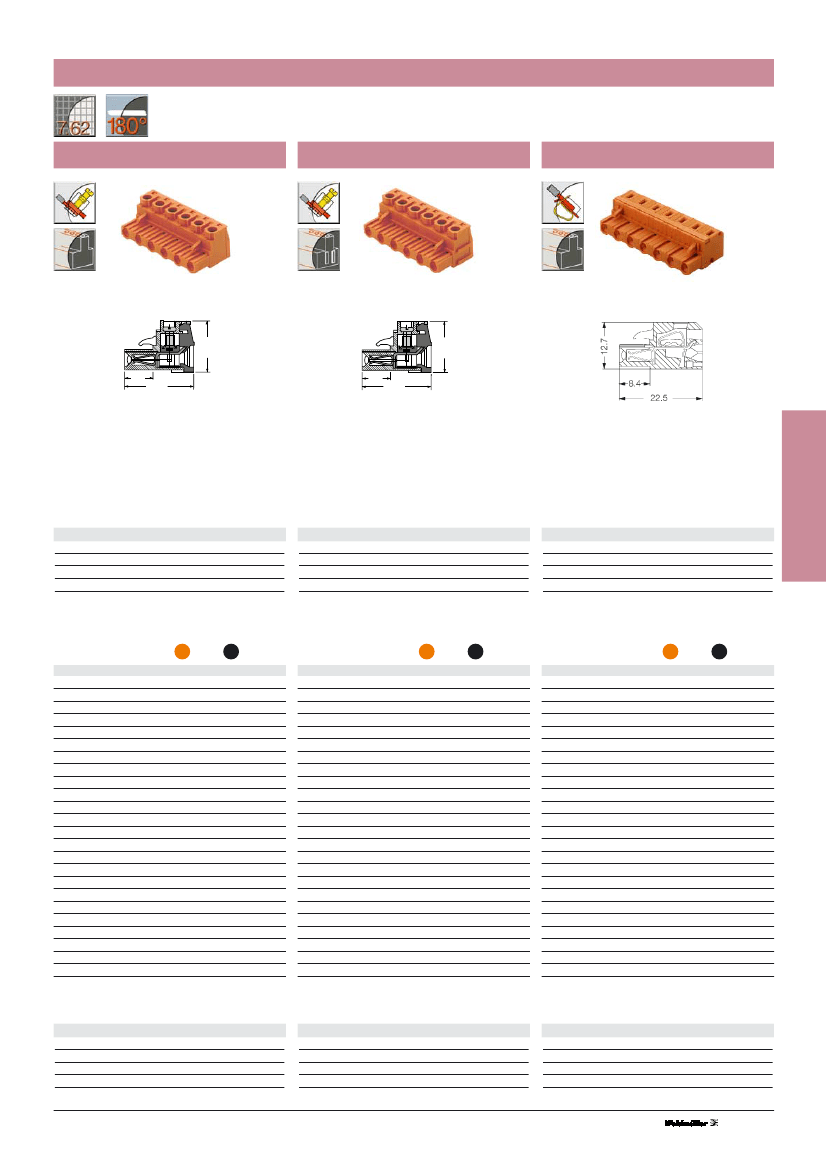

1722790000 Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Screw Terminal, Socket

1722790000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded1
OptionsGENERAL PURPOSE
Termination typeSCREW
Total number of contacts9
UL Flammability Code94V-0
Base Number Matches1
Omnimate Range - Pitch 7.62 mm
Socket blocks BLZ 7.62
Socket blocks BLZ 7.62B
Socket blocks BLZF 7.62
15.2
8.4
20.0
8.4
20.0
15.2
Technical Data
VDE
UL
300
10
12
CSA
300
10
12
Technical Data
VDE
UL
300
10
12
CSA
300
10
12
Technical Data
VDE
UL
300
10
14
CSA
300
10
14
Rated voltage
V
500*
Rated current
A
15
Clamping range max.
mm
2
/AWG
2.5
*Overvoltage category III / Pollution severity 3
Additional technical data see page 225
Rated voltage
V
500*
Rated current
A
15
Clamping range max.
mm
2
/AWG
2.5
*Overvoltage category III / Pollution severity 3
Additional technical data see page 225
Rated voltage
V
500*
Rated current
A
16
Clamping range max.
mm
2
/AWG
1.5
*Overvoltage category III / Pollution severity 3
Additional technical data see page 226
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
Type
BLZ 7.62/2
BLZ 7.62/3
BLZ 7.62/4
BLZ 7.62/5
BLZ 7.62/6
BLZ 7.62/7
BLZ 7.62/8
BLZ 7.62/9
BLZ 7.62/10
BLZ 7.62/11
BLZ 7.62/12
Cat. No.
1623050000
1623060000
1623070000
1623080000
1623090000
1623100000
1623110000
1623120000
1623130000
1623140000
1623150000
Cat. No.
1623160000
1623170000
1623180000
1623190000
1623200000
1623210000
1623220000
1623230000
1623240000
1623250000
1623260000
Qty.
100
100
100
50
50
50
50
50
50
50
50
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
Type
BLZ 7.62/2B
BLZ 7.62/3B
BLZ 7.62/4B
BLZ 7.62/5B
BLZ 7.62/6B
BLZ 7.62/7B
BLZ 7.62/8B
BLZ 7.62/9B
BLZ 7.62/10B
BLZ 7.62/11B
BLZ 7.62/12B
Cat. No.
1623380000
1623390000
1623400000
1623410000
1623420000
1623430000
1623440000
1623450000
1623460000
1623470000
1623480000
Cat. No.
1623490000
1623500000
1623510000
1623520000
1623530000
1623540000
1623550000
1623560000
1623570000
1623580000
1623590000
Qty.
100
100
100
50
50
50
50
50
50
50
50
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
Type
BLZF
BLZF
BLZF
BLZF
BLZF
BLZF
BLZF
BLZF
BLZF
BLZF
BLZF
7.62/2
7.62/3
7.62/4
7.62/5
7.62/6
7.62/7
7.62/8
7.62/9
7.62/10
7.62/11
7.62/12
Cat. No.
1722610000
1722620000
1722630000
1722640000
1722650000
1722660000
1722670000
1722680000
1722690000
1722700000
1722710000
Cat. No.
1722720000
1722730000
1722740000
1722750000
1722760000
1722770000
1722780000
1722790000
1722800000
1722810000
1722820000
Qty.
100
100
100
50
50
50
50
50
50
50
50
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
196
199
202-207
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
193
196
199
202-207
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
196
199
202-207
151
Omnimate Range
Pitch 7.62 mm
