801-13-019-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-13-019-10-001000

801-13-019-10-001000: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size258KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

801-13-019-10-001000 Overview

Board Connector, 19 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

801-13-019-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	GOLD (10)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	801
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

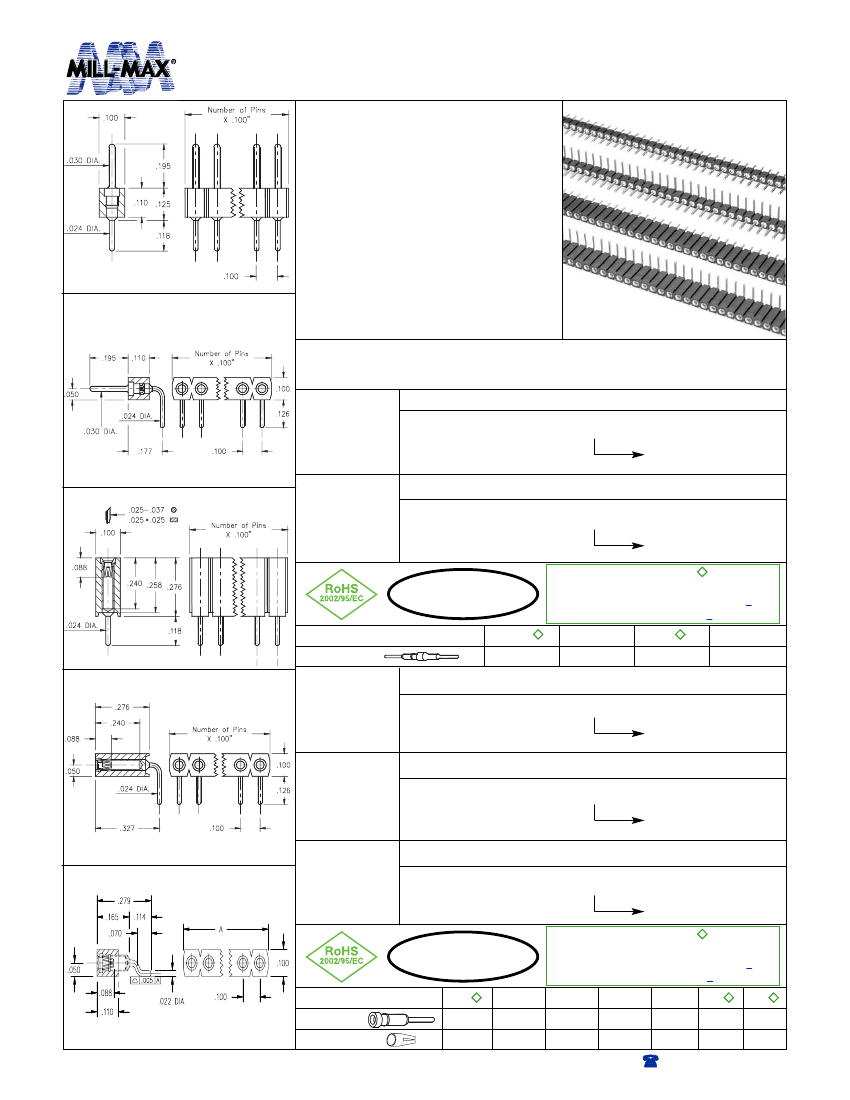

INTERCONNECTS

.030” dia. Pins, Straight and Right Angle

Single Row

•

Receptacles accept .030”

diameter and .025” square pins

such as Series 890 and 892

pin headers.

•

Pin interconnects available with

straight (MM# 7007) or right angle

(MM# 5005) solder tails. (See page

173 for details)

Fig. 1

•

Sockets are available with straight

(MM# 1304) or right angle (MM#

1305) solder tails. (See pages

146 & 147 for details)

Series 800, 801

Ordering Information

Series 800...10-001

Straight Pin Header

01-64

Right Angle Pin Header

02-64

Fig. 1

Fig. 2

800-XX-0_ _-10-001000

Specify # of pins

Series 800...20-001

Fig. 2

800-XX-0 _ _-20-001000

Specify # of pins

XX= Plating Code

See Below

For RoHS compliance, select plating code.

For the gold option (XX=10) also change

part number from 80X-XX-0XX-10-002000

to 80X-10-0XX-10-002100

200µ” Sn/Pb

200µ” Sn

SPECIFY PLATING CODE XX=

10µ” Au

Fig. 3

Pin Plating

Series 801...10-001

Straight Socket

01-50

Fig. 3

801-XX-0_ _-10-001000

Specify # of pins

Series 801...20-001

Right Angle Socket

801-XX-0 _ _-20-001000

Specify # of pins

01-50

Fig. 4

Fig. 5

A = Number of Pins (2-10) x .100”

Series 801...40-002

SMT Right Angle Socket

801-XX-0 _ _-40-002000

Specify # of pins

XX= Plating Code

See Below

02-10

For RoHS compliance, select plating code.

For the all gold option (XX=13) also change

part number from 80X-XX-0XX-10-0X2000

to 80X-13-0XX-10-0X2100

30µ” Au

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

10µ” Au

200µ”Sn/Pb

10µ” Au

Sleeve (Pin)

200µ” Sn/Pb

200µ” Sn/Pb 200µ”Sn/Pb

200µ”Sn

200µ”Sn 200µ”Sn

30µ” Au 200µ”Sn

Fig. 5

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
