3-826539-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-826539-6

3-826539-6: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,GREEN; CategoryThe connector; File Size35KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-826539-6 Overview

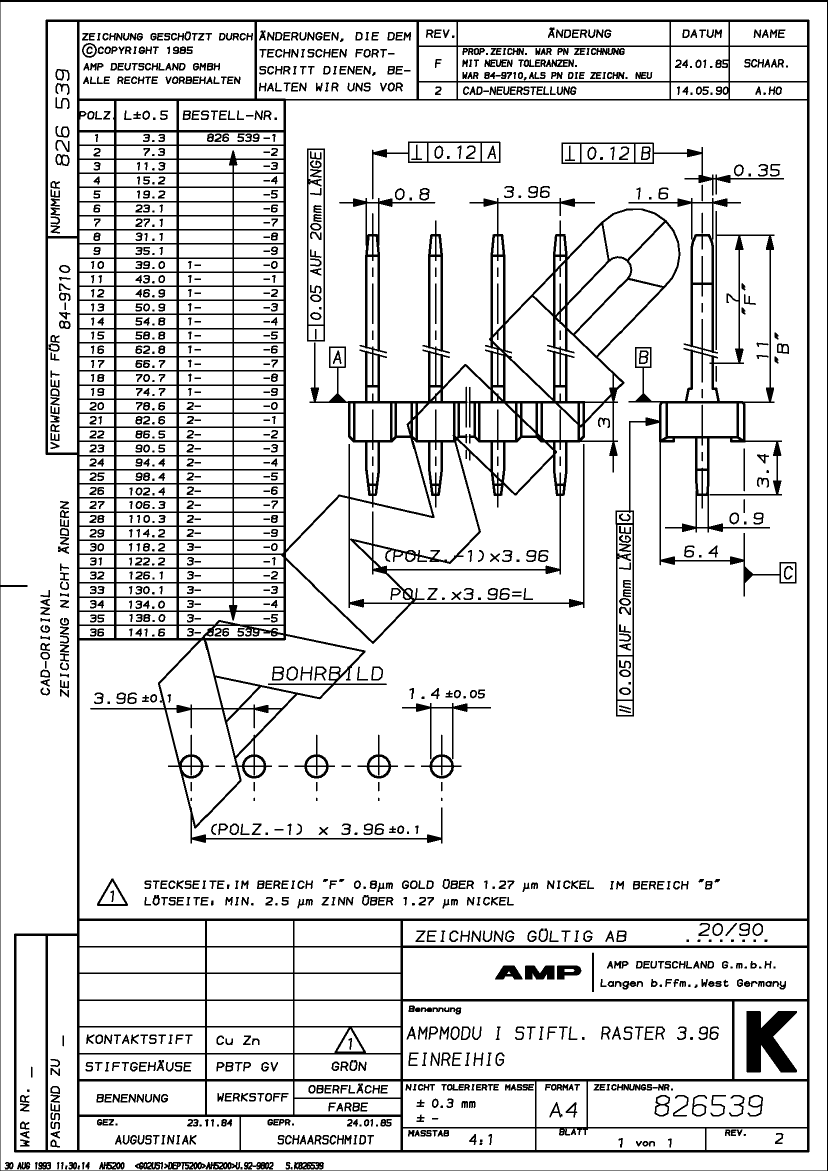

HEADER CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,GREEN

3-826539-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
body width	0.252 inch
subject depth	0.118 inch
body length	5.575 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1200VAC V
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	826539
Plug contact pitch	0.156 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	31u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	36
Base Number Matches	1

Preview

Download Datasheet

View All

3-826539-6 Related Products

	3-826539-6	2-826539-1	2-826539-2	2-826539-5	2-826539-8	2-826539-9
Description	HEADER CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,RECEPT,21 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,RECEPT,25 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,RECEPT,28 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,RECEPT,29 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,GREEN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch	0.252 inch
subject depth	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
body length	5.575 inch	3.252 inch	3.406 inch	3.874 inch	4.343 inch	4.496 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	826539	826539	826539	826539	826539	826539
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	31u inch	31u inch	31u inch	31u inch	31u inch	31u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch
Terminal pitch	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm	3.9624 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	36	21	22	25	28	29
Base Number Matches	1	1	1	1	1	1
