3-829264-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-829264-4

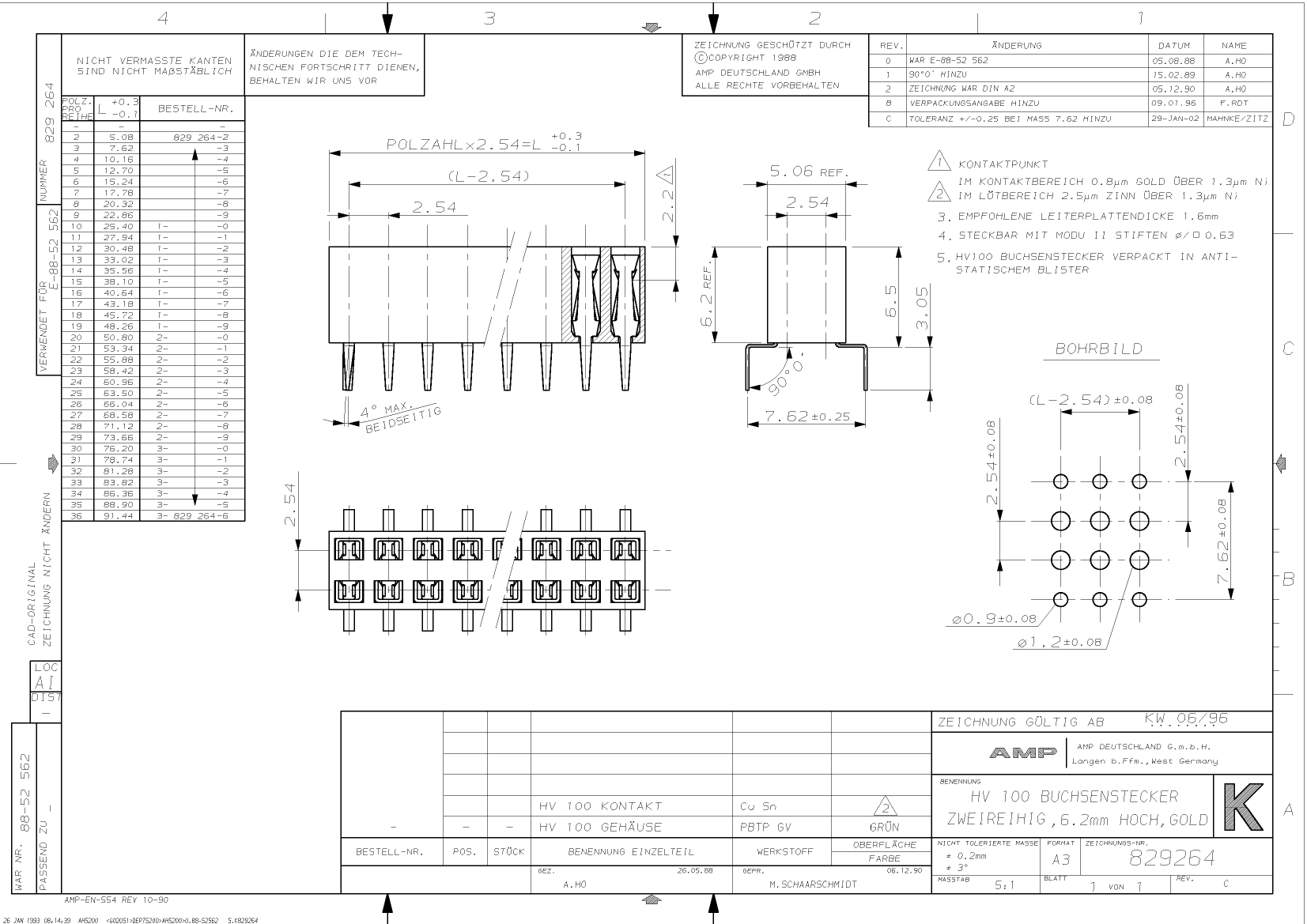

3-829264-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-829264-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN

3-829264-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	303021538
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BOTTOM OR TOP ENTRY
body width	0.199 inch
subject depth	0.244 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	829264
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Plating thickness	31u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68

Preview

Download Datasheet

View All

3-829264-4 Related Products

	3-829264-4	3-829264-1	2-829264-1	3-829264-3	3-829264-5	2-829264-9	2-829264-7
Description	HEADER CONNECTOR,PCB MNT,PLUG,68 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,62 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,42 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,66 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,70 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,58 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,54 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	303021538	303021535	303019565	303021537	303021539	303019573	303019571
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY
body width	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch	0.199 inch
subject depth	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch	0.244 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Plating thickness	31u inch	31u inch	31u inch	31u inch	31u inch	31u inch	31u inch
Guideline	UL	UL	UL	UL	UL	UL	UL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	68	62	42	66	70	58	54
Manufacturer's serial number	829264	829264	829264	829264	-	-	829264
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL
body length	-	3.1 inch	2.1 inch	3.3 inch	3.5 inch	2.9 inch	2.7 inch
Rated current (signal)	-	3 A	3 A	3 A	3 A	3 A	3 A
Terminal length	-	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch
