FEATURES AND SPECIFICATIONS
Features and Benefits
s
Wire-to-board vertical header with mounting pegs for
increased retention
s
Positive housing locks
s
Fully isolated terminals
s
Contrasting color (white) TPA/CPA for high visibility
s
Redundant housing lock (CPA)
Electrical
Voltage: 600V
Current: (Used with 16 AWG)
Circuits
Amperes-TPA
2–3
9
4–6
8
7–10
7
12–24
6
4.20mm (.165") Pitch
Mini-Fit, TPA
™
Header
30069
Vertical, Dual Row
With Pegs
Power Connectors
F
Reference Information
Product Specification: PS-5556-0003
Packaging: Tray and bag
UL File No.: E29179
CSA File No.: LR19980
TUV License No.: R75142
Use With: Standard Mini-Fit terminals
Mates With:
30067
receptacle
Designed In: Millimeters
Contact Resistance: 10m
Ω
max.
Dielectric Withstanding Voltage: 1500V
Insulation Resistance: 1000 M
Ω
min.
Mechanical
Insertion Force to PCB: 5.0kg max.
Mating Force: 0.7kg (1.54 lb) max.
Unmating Force: 0.35kg (0.7 lb) min.
Normal Force: 200g min.
Durability: 30 cycles
Physical
Housing: Black polyester, UL 94V-0
Contact: Brass or Phosphor Bronze
Plating: Tin, select Gold and overall Gold
Operating Temperature: -40 to +105˚C

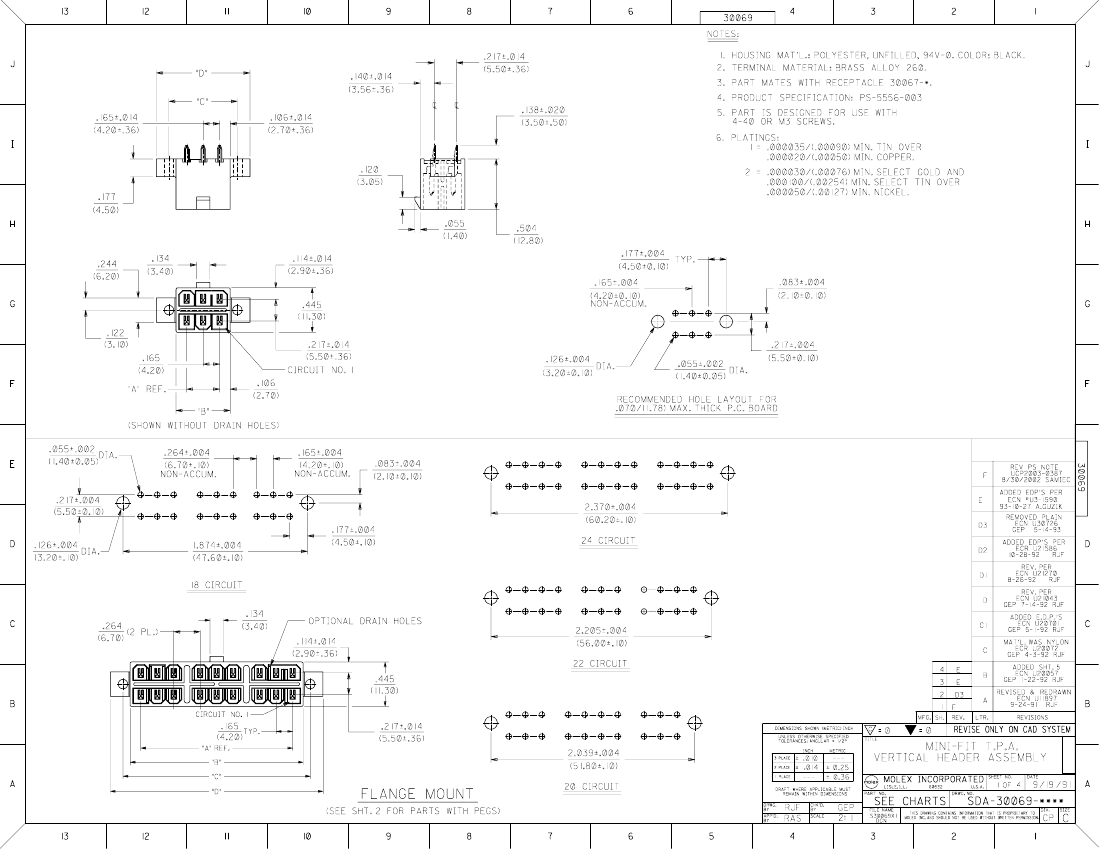

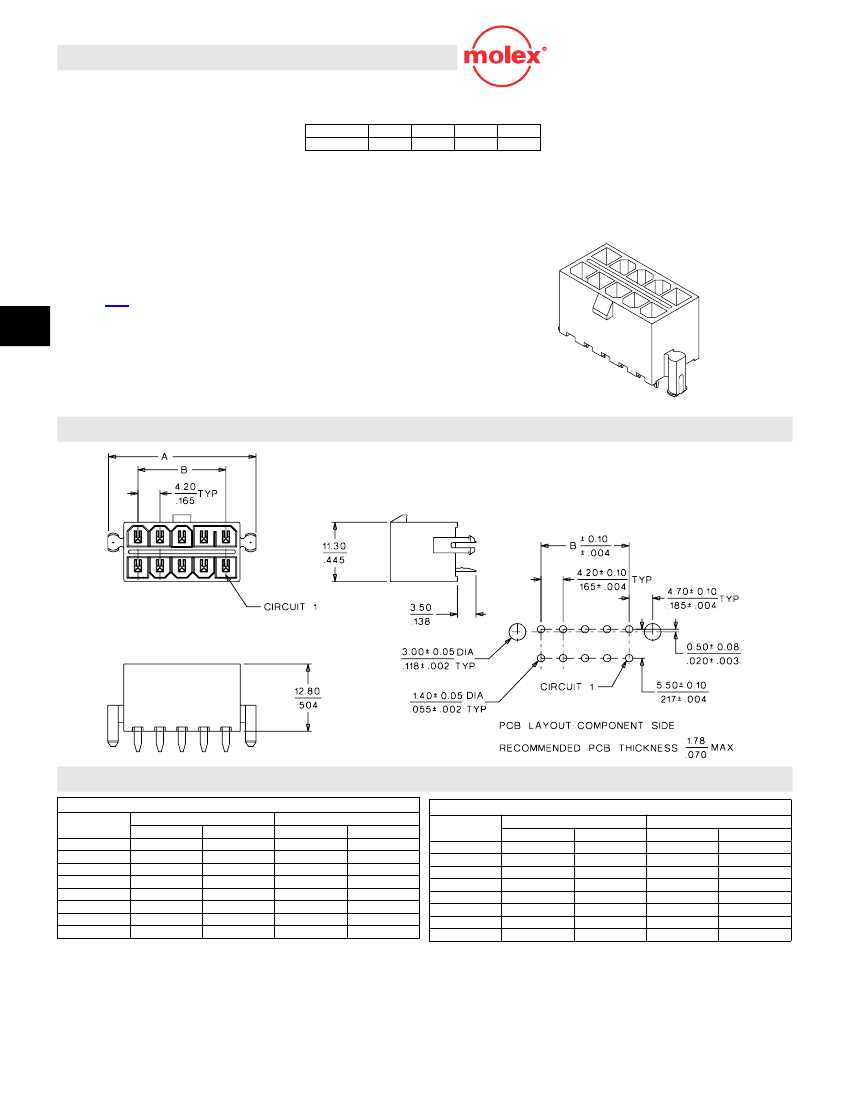

CATALOG DRAWING (FOR REFERENCE ONLY)

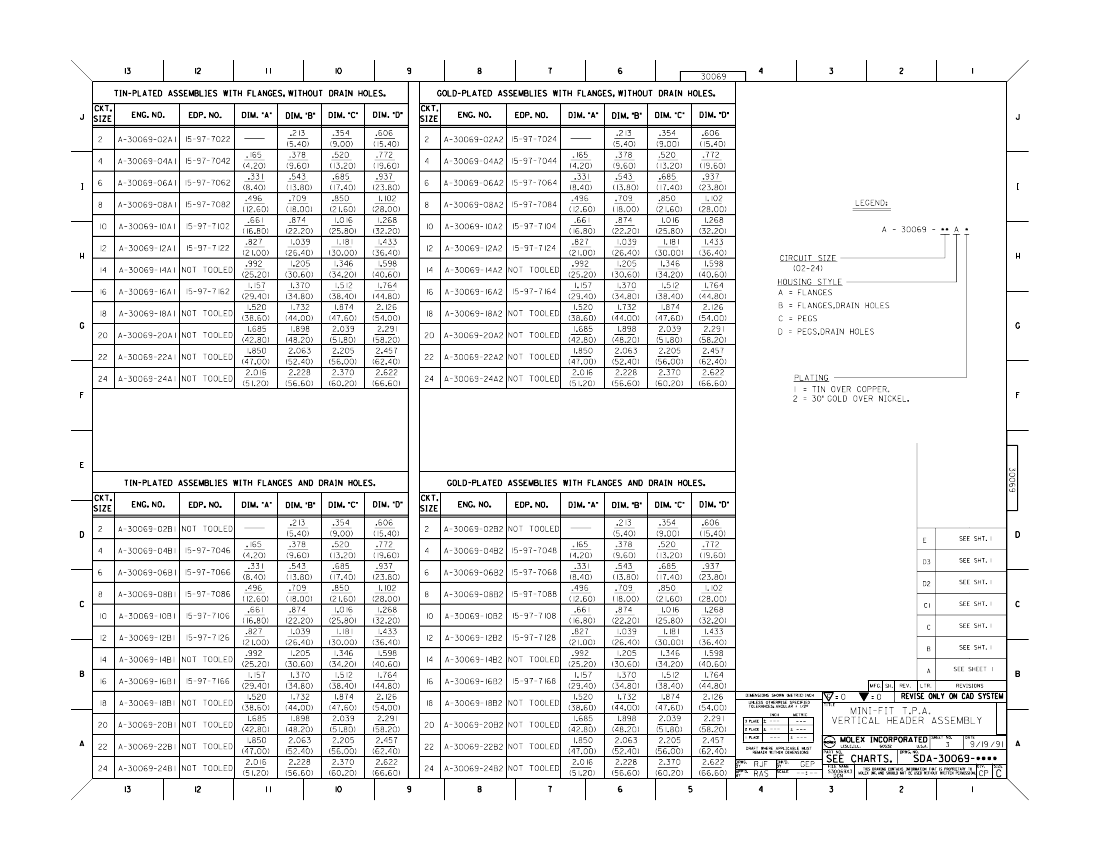

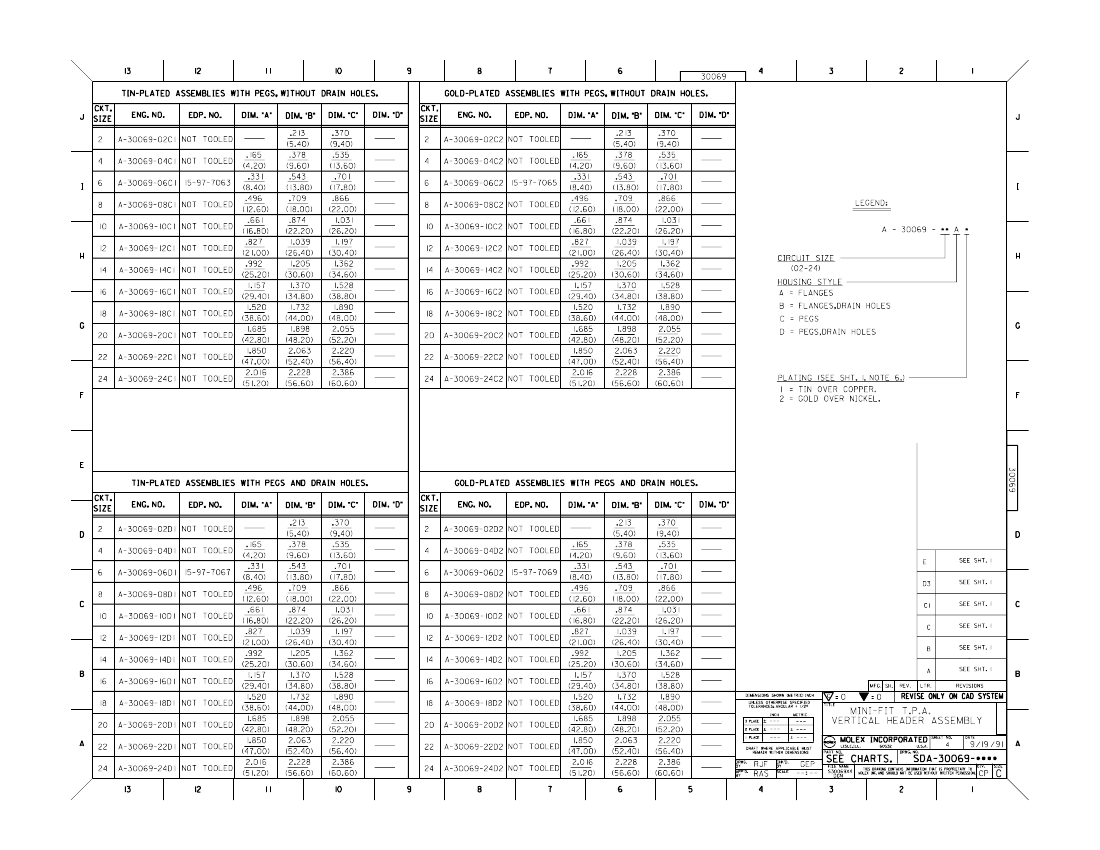

ORDERING INFORMATION AND DIMENSIONS
With Drain Holes
Circuits
2
4
6
8
10
12
14
16
Order No.
Tin Plated
Gold Plated
Dimension
A
5.40 (.213)
9.60 (.378)
13.80 (.543)
18.00 (.709)
22.20 (.874)
26.40 (1.039)
30.60 (1.205)
34.80 (1.370)
B
4.20
8.40
12.60
16.80
21.00
25.20
29.40
(.165)
(.331)
(.496)
(.661)
(.827)
(.992)
(1.157)
Circuits
2
4
6
8
10
12
14
16
Tin Plated
Without Drain Holes
Order No.
Gold Plated
Dimension
A
B
5.40 (.213)
9.60 (.378)
4.20 (.165)
13.80 (.543)
8.40 (.331)
18.00 (.709)
12.60 (.496)
22.20 (.874)
16.80 (.661)
26.40 (1.039)
21.00 (.827)
30.60 (1.205)
25.20 (.992)
34.80 (1.370)
29.40 (1.157)
• 15-97-7067
• 15-97-7069
• 15-97-7063
• 15-97-7065
• US Standard Product, available through Molex franchised distributors
