EWM-C117FL02E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> EWM-C117FL02E

EWM-C117FL02E: DescriptionRF Modules LTE/HSPA+/GPRS module for Europe, APAC; CategoryModule/solution; File Size285KB，1 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

EWM-C117FL02E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EWM-C117FL02E	-	-	View	Buy Now

EWM-C117FL02E Overview

RF Modules LTE/HSPA+/GPRS module for Europe, APAC

EWM-C117FL02E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Advantech
Product Category	RF Modules
RoHS	Details
Product	RF Modules
Frequency	850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz
Interface Type	PCIe
Operating Supply Voltage	3.3 V to 3.6 V
Dimensions	50.85 mm x 29.9 mm x 6.2 mm
Antenna Connector Type	RF Antenna Coaxial

Preview

Download Datasheet

View All

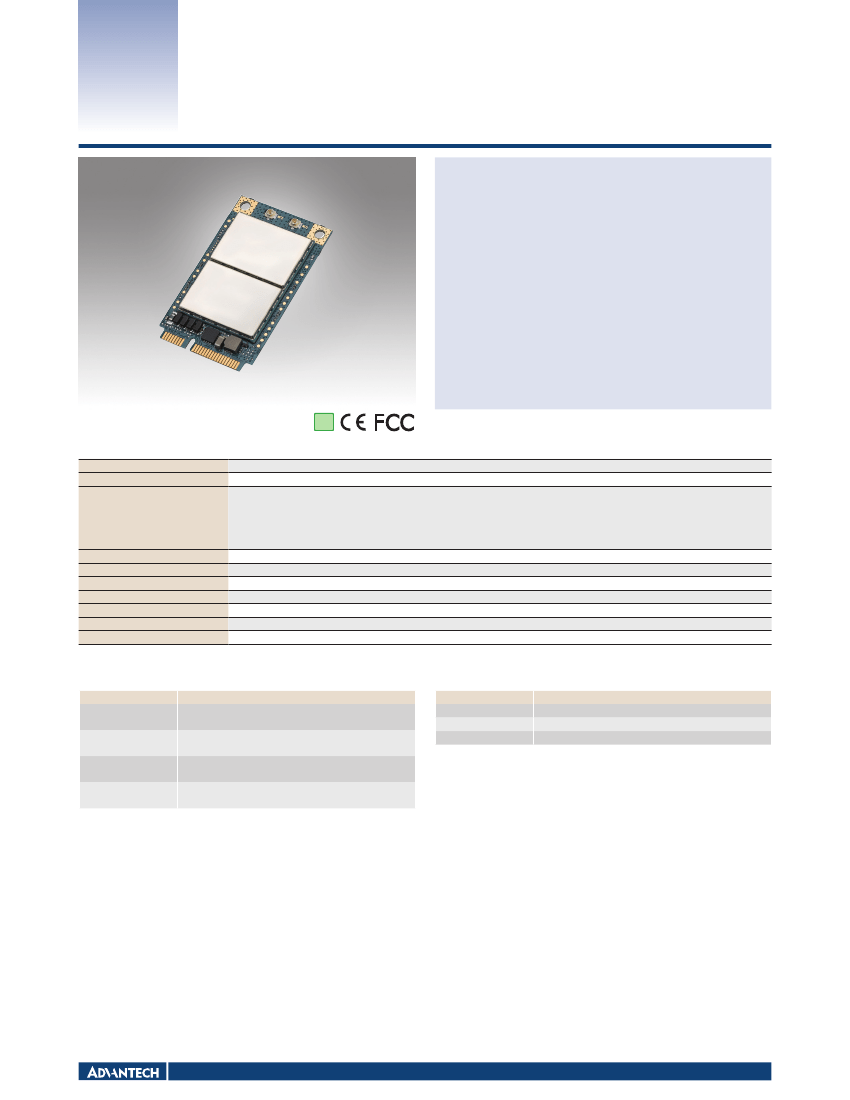

EWM-C117FL

Wide-Temp 4G/LTE, Full-size Mini PCIe

Card (SIM Card holder by inquiry)

Features

4G/LTE Bands Cat. 4, 3G UMTS/HSPA, 2G GSM/GPRS/EDGE

HSDPA 7.2Mbps, HSUPA 5.76Mbps

Operating temperature: -40 to +85 °C

SIM card holder by inquiry

RoHS

COMPLIANT

2002/95/EC

Specifications

Main Chipset

Antenna

Band

Data throughput

Interface

Operation Voltage

Power Consumption

O.S Supported

Temperature Ranges

Dimensions (L x W x H)

U-blox TOBY-L2

2 RF Antenna Coaxial Connectors

4G/LTE Cat. 4:

Bands 2, 4, 5, 7, 17 for USA

Bands 1, 3, 5, 7, 8, 20 for Europe, APAC

3G UMTS/HSPA: 850/900/1900/2100 MHz

EDGE/ GPRS/ GSM: 850/900/1800/1900 MHz

4G/LTE Cat. 4 (DL: 150 Mbps, UL: 50 Mbps)

PCI Express mini-card rev. 1.2

3.3V ~ 3.6V

< 700 mA (HSPA connected Mode)

Windows 7/8.x/10, WinCE 5.0/6.0, Linux 2.4.x/2.6.x, Mac

Operation: -40 to +85 °C

50.85 x 29.9 x 6.2 mm

Ordering Information

Part No.

EWM-C117FL01E

EWM-C117FL02E

EWM-C117FL03E

EWM-C117FL04E

Product Description

LTE/HSPA+/GPRS module, w/o SIM Slot, for USA AT&T,

T-Mobile, w/o voice function

LTE/HSPA+/GPRS module, w/o SIM Slot, for Europe,

APAC, w/o voice function

LTE/HSPA+/GPRS module, w/ SIM Slot, for USA AT&T,

T-Mobile, w/o voice function

LTE/HSPA+/GPRS module, w/ SIM Slot, for Europe,

APAC, w/o voice function

Suggested Antenna and Cable

Part No.

1750007990-01

1750006264

1750006009

Specifications

4G/LTE full band dipole antenna, 110 mm

Coaxial GSM/ GPS Cable, 150 mm

Coaxial GSM/ GPS Cable, 250 mm

Embedded Wireless Modules

All product specifications are subject to change without notice

Last updated : 28-Apr-2017

EWM-C117FL02E Related Products

	EWM-C117FL02E	EWM-C117FL03E	EWM-C117FL01E
Description	RF Modules LTE/HSPA+/GPRS module for Europe, APAC	RF Modules LTE/HSPA+/GPRS module,USA AT&T, T-Mobil	RF Modules LTE/HSPA+/GPRS module for USA AT&T, T-M
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Advantech	Advantech	Advantech
Product Category	RF Modules	RF Modules	RF Modules
RoHS	Details	Details	Details
Product	RF Modules	RF Modules	RF Modules
Frequency	850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz
Interface Type	PCIe	PCIe	PCIe
Operating Supply Voltage	3.3 V to 3.6 V	3.3 V to 3.6 V	3.3 V to 3.6 V
Dimensions	50.85 mm x 29.9 mm x 6.2 mm	50.85 mm x 29.9 mm x 6.2 mm	50.85 mm x 29.9 mm x 6.2 mm
Antenna Connector Type	RF Antenna Coaxial	RF Antenna Coaxial	RF Antenna Coaxial
