AX93A02 Overview

Modules Accessories Axiomtek

AX93A02 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Axiomtek
Product Category	Modules Accessories
RoHS	Details
Product	I/O Boards
For Use With	PICO312, PICO313, PICO511, PICO512
Dimensions	118 mm x 40 mm

Preview

Download Datasheet

View All

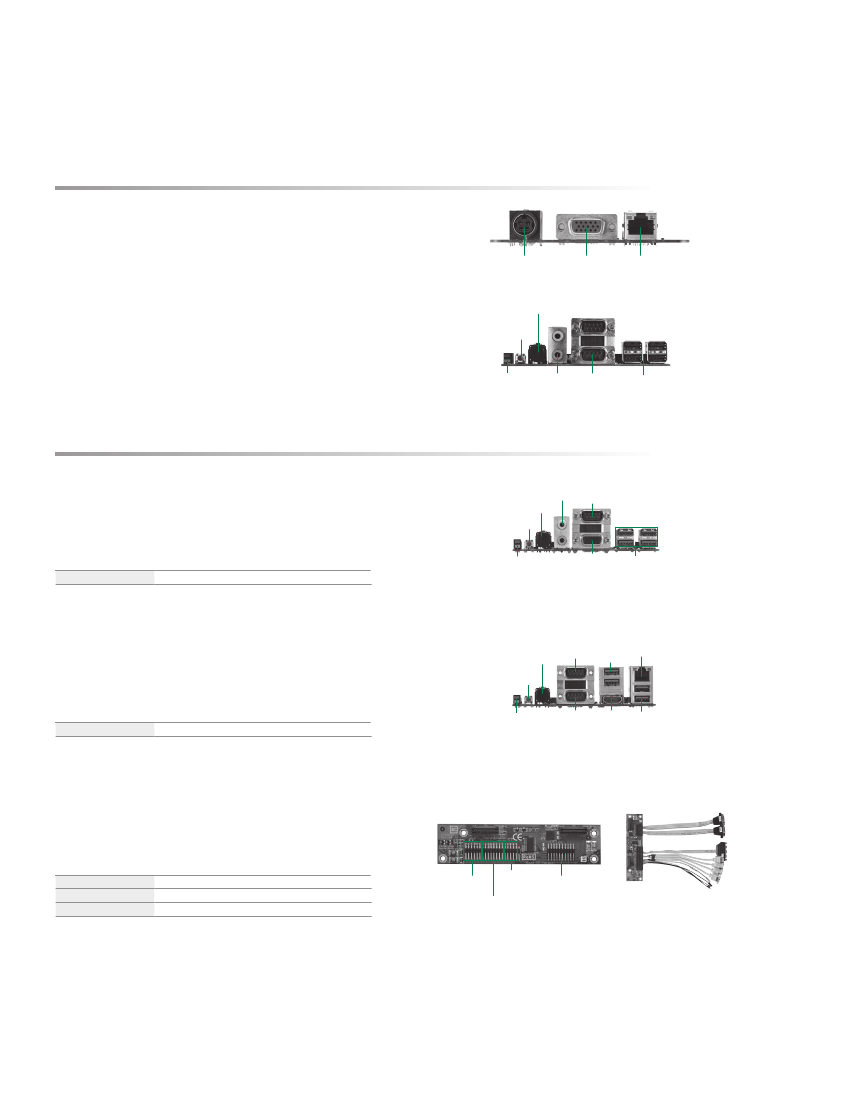

I/O Board for Pico-ITX Boards

Attached as Accessory

AX93267

Specification: 1 x DC Jack, 1 x VGA, 1 x Gigabit LAN

Dimension: 100 x 26 mm

Compliant Product: PICO841, PICO843

DC Jack

VGA

Ethernet

AX93283

Specification: 1 x RS-232/422/485, 1 x RS-232, 4 x USB 2.0, 1 x Audio (Mic-in/Line-out),

1 x power-on, 1 x Reset, 2 x LED

Dimension: 118 x 29 mm

Compliant Product: PICO840, PICO841, PICO843

Power-on

Reset

Red LED: HDD Audio

Green LEF: power-on

COM

USB 2.0 x 4

Ordered by Optional

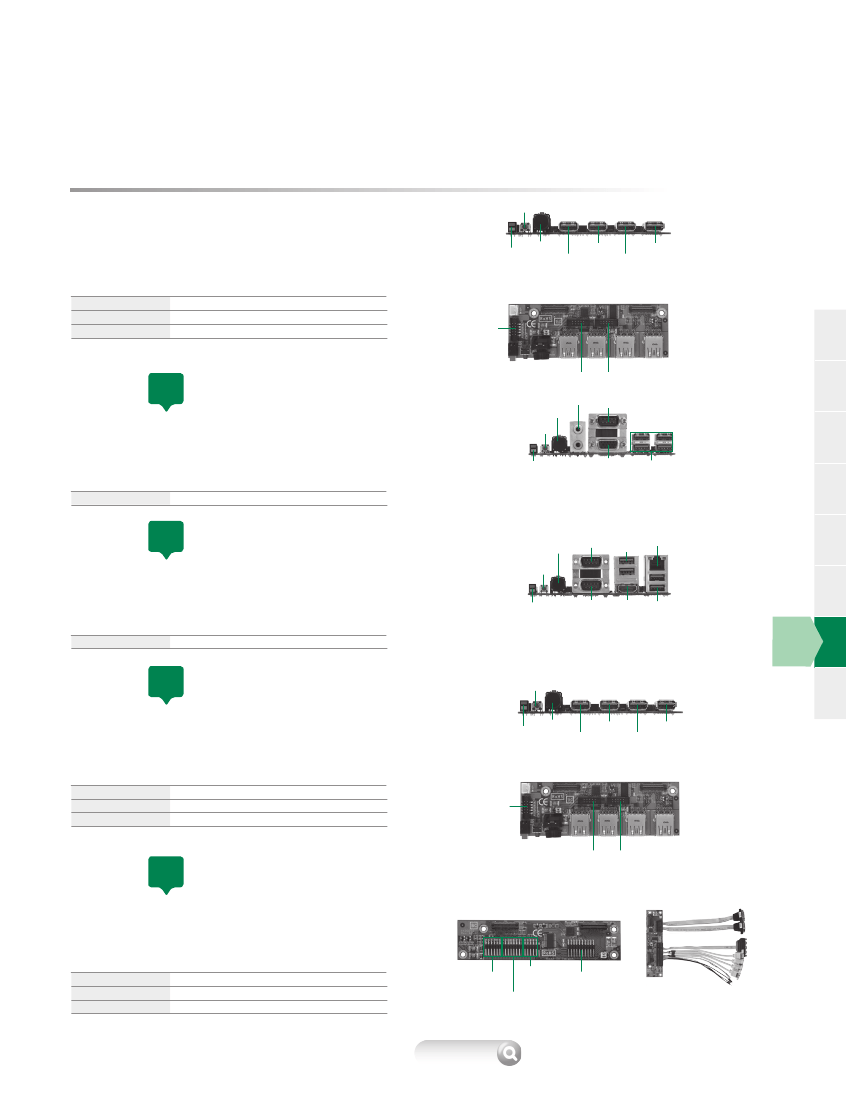

AX93275

Specification: 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x VGA,

1 x Audio (Mic-in/Line-out), 1 x power-on, 1 x Reset, 2 x LED

Dimension: 118 x 40 mm

Compliant Product: PICO880, PICO500, PICO300

Ordering Information

AX93275

P/N: E393275102

Audio COM 1

Power-on

Reset

Red LED: HDD

Green LED: power-on

VGA

USB 3.0

AX93276

Specification: 1 x RS-232/422/485, 1 x RS-232, 4 x USB 3.0, 1 x HDMI, 1 x Gigabit LAN,

1 x power-on, 1 x Reset, 2 x LED

Dimension: 118 x 40 mm

Compliant Product: PICO880, PICO500, PICO300

Ordering Information

AX93276

P/N: E393276102

Power-on

Reset

COM 1 USB 3.0 Ethernet

COM 2

Red LED: HDD

Green LED: power-on

HDMI USB 3.0

AX93292

Specification: 1 x RS-232/422/485, 1 x RS-232, 4 x USB 2.0, 1 x Audio (Mic-in/Line-out),

1 x power-on, 1 x Reset, 2 x LED

Dimension: 118 x 29 mm

Compliant Product: PICO880, PICO500, PICO300

Ordering Information

AX93292

P/N: E393292100

Cable for COM

P/N: 594H8302100E

Cable for Audio+USB+LED P/N: 59340000200E

Audio

Power on/off,

COM 1/2

reset, LED

USB 2.0 x 4

237

Updated Nov. 16, 2017

* All specifications and photos are subject to change without notice.
