121-10302-1 datasheet, PDF - EEWORLD Datasheet

121-10302-1: DescriptionRF SMB Connector, Male, Board Mount, Press Fit Terminal,; CategoryThe connector The connector; File Size141KB，2 Pages; ManufacturerLitton Industries

Download Datasheet Parametric Compare View All

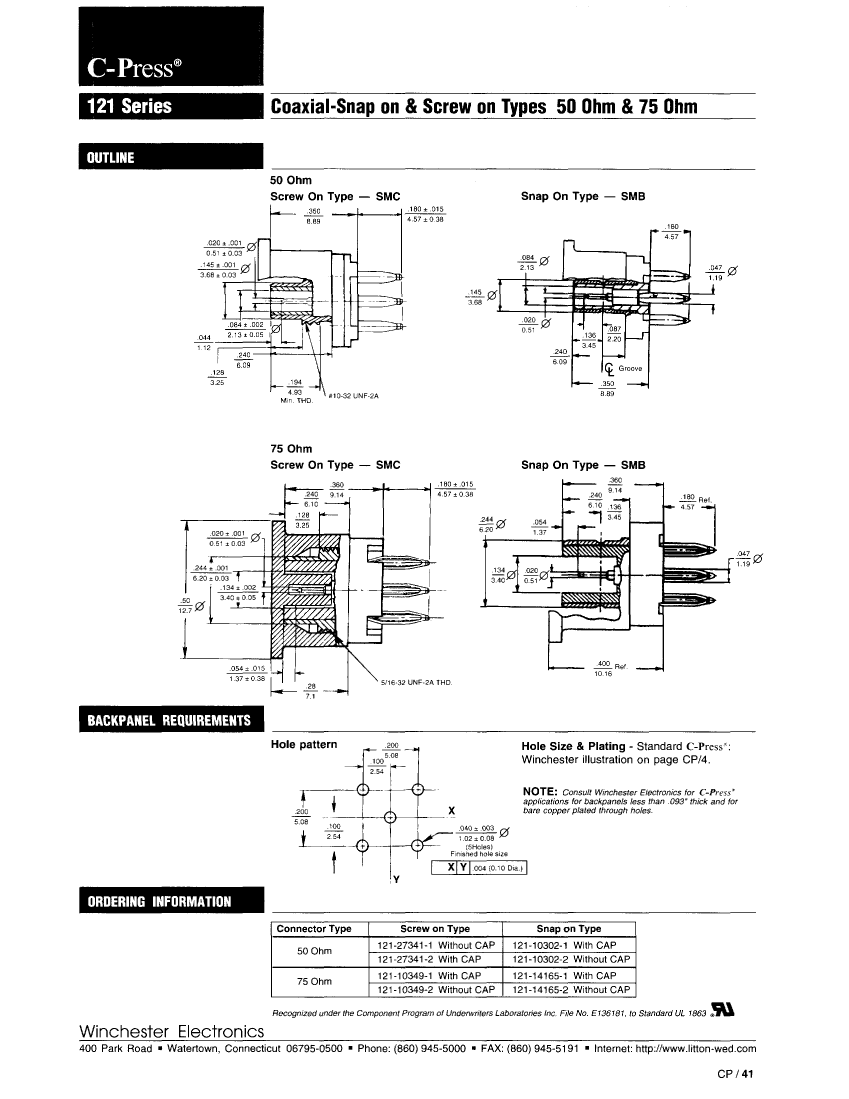

121-10302-1 Overview

RF SMB Connector, Male, Board Mount, Press Fit Terminal,

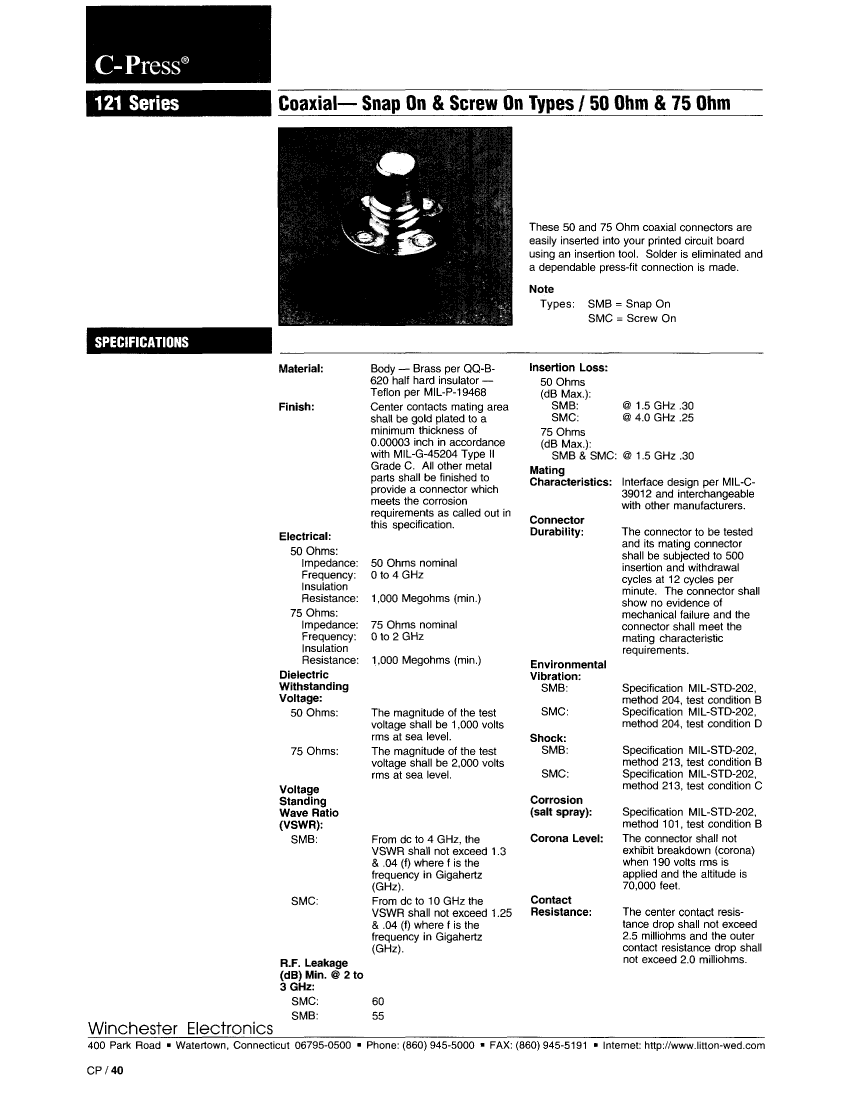

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	INSERTION LOSS MAX AT 1.5GHZ
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	121
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	PRESS FIT
voltage standing wave ratio	1.3
Base Number Matches	1

	121-10302-1	121-10302-2	121-14165-2	121-14165-1
Description	RF SMB Connector, Male, Board Mount, Press Fit Terminal,	RF SMB Connector, Male, Board Mount, Press Fit Terminal,	RF SMB Connector, Male, Board Mount, Press Fit Terminal,	RF SMB Connector, Male, Board Mount, Press Fit Terminal,
Reach Compliance Code	unknow	unknow	unknow	unknow
Other features	INSERTION LOSS MAX AT 1.5GHZ	INSERTION LOSS MAX AT 1.5GHZ	INSERTION LOSS MAX AT 1.5GHZ	INSERTION LOSS MAX AT 1.5GHZ
Characteristic impedance	50 Ω	50 Ω	75 Ω	75 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)
Contact point gender	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.3 dB	0.3 dB	0.3 dB	0.3 dB
insulator material	TEFLON	TEFLON	TEFLON	TEFLON
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	121	121	121	121
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
voltage standing wave ratio	1.3	1.3	1.3	1.3
Base Number Matches	1	1	1	1
