DBV17W2P700G30LF datasheet, PDF

Datasheet> All Categories > The connector> DBV17W2P700G30LF

DBV17W2P700G30LF: DescriptionD-Sub Mixed Contact Connectors Mixed Signal and Power 17W2 Pin RA Solder 30A, US Standard, 200 Cycles, Front: Female Screw Lock UNC 4.40, Back: Harpoons for 1.6mm PCB Thickness; CategoryThe connector; File Size575KB，6 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

DBV17W2P700G30LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DBV17W2P700G30LF	-	-	View	Buy Now

DBV17W2P700G30LF Overview

D-Sub Mixed Contact Connectors Mixed Signal and Power 17W2 Pin RA Solder 30A, US Standard, 200 Cycles, Front: Female Screw Lock UNC 4.40, Back: Harpoons for 1.6mm PCB Thickness

DBV17W2P700G30LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Mixed Contact Connectors
RoHS	Details
Contact Arrangement	17W2
Mounting Style	-
Mounting Angle	Right Angle
Termination Style	Through Hole
Packaging	Tray
Contact Plating	Gold
Current Rating	30 A Power, 7.5 A Signal
Gender	Male
Voltage Rating	300 V
Shell Plating	Semi Bright Nickel
Shell Size	B
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	20

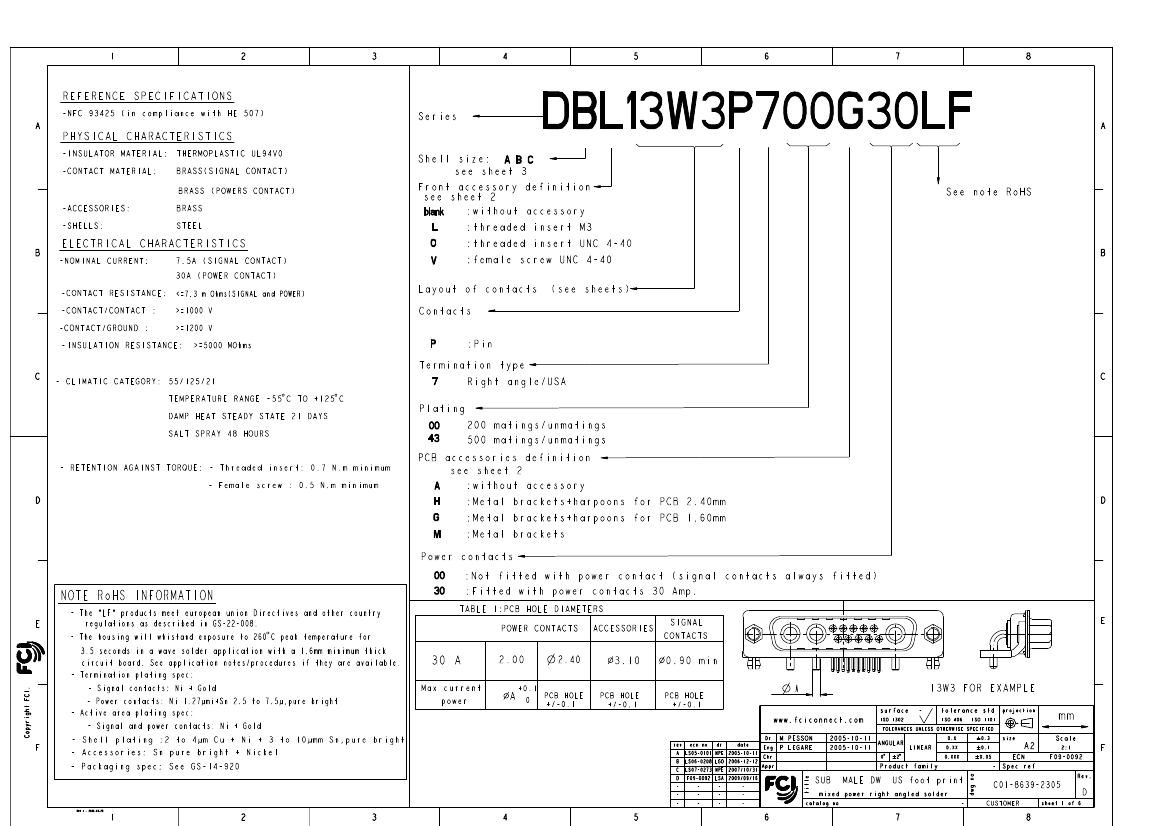

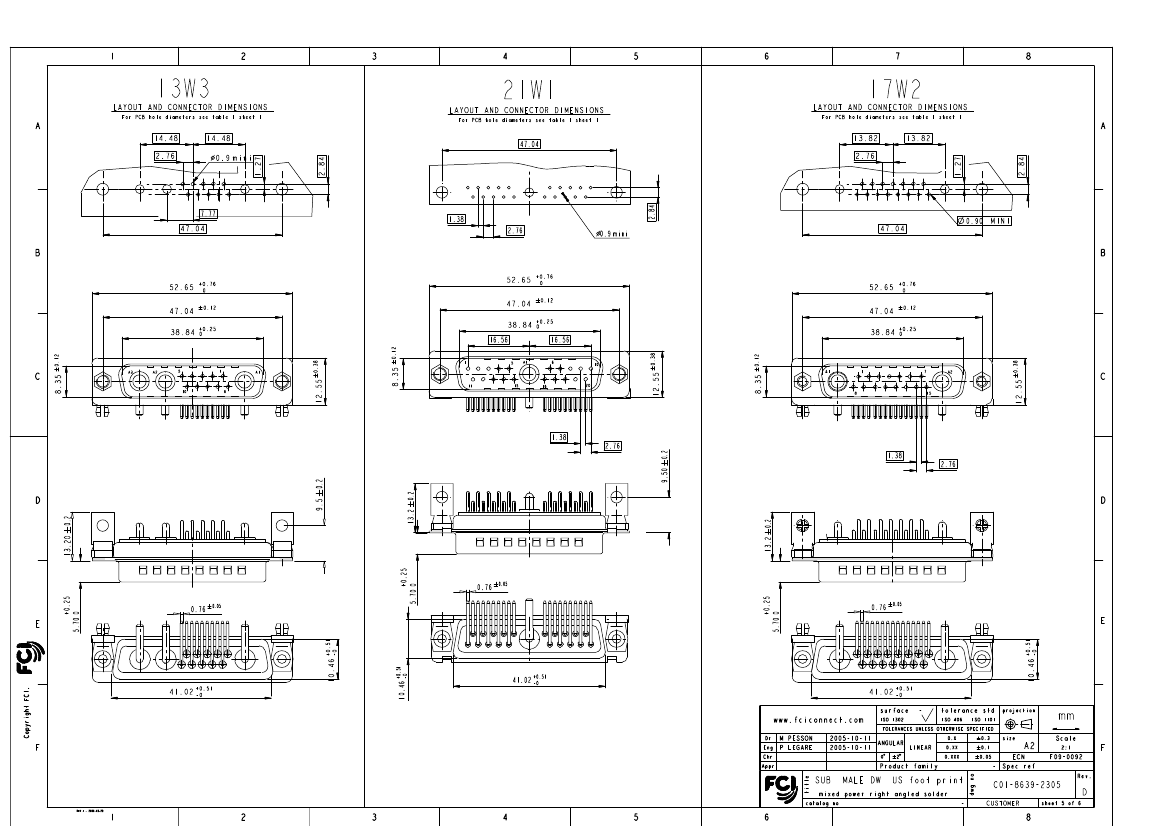

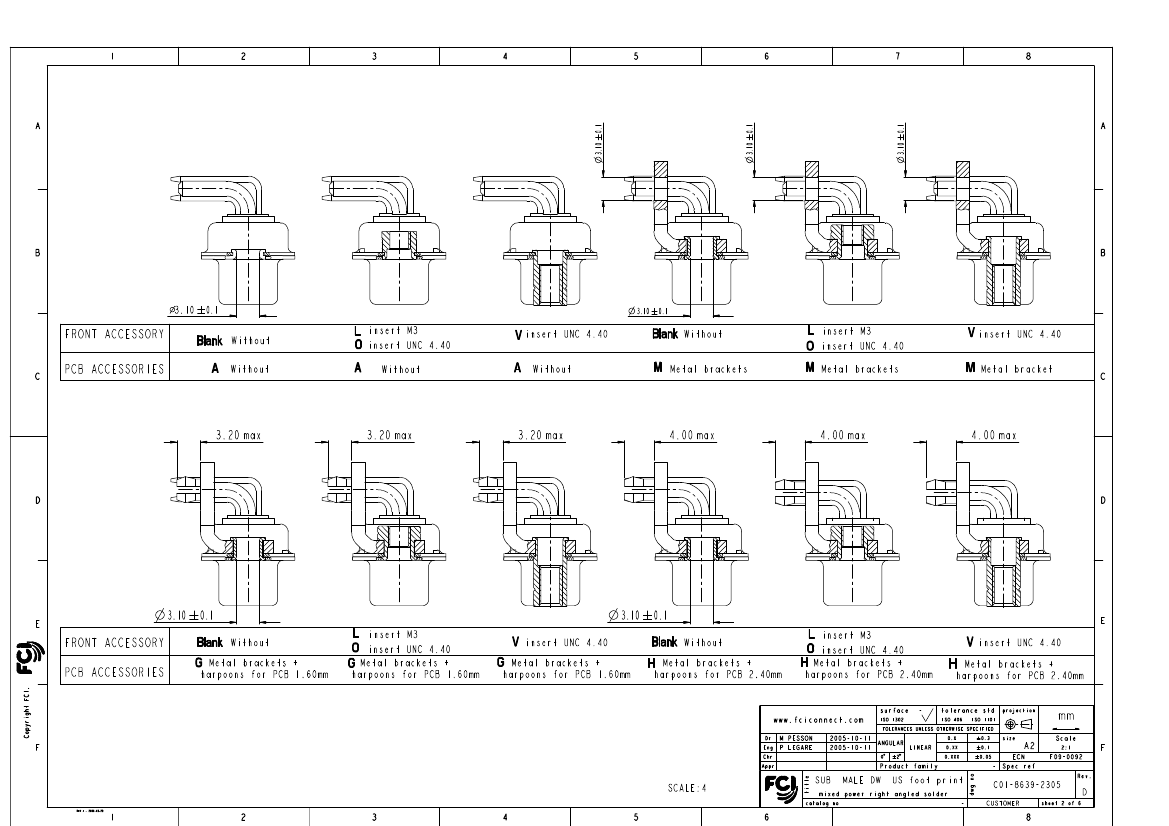

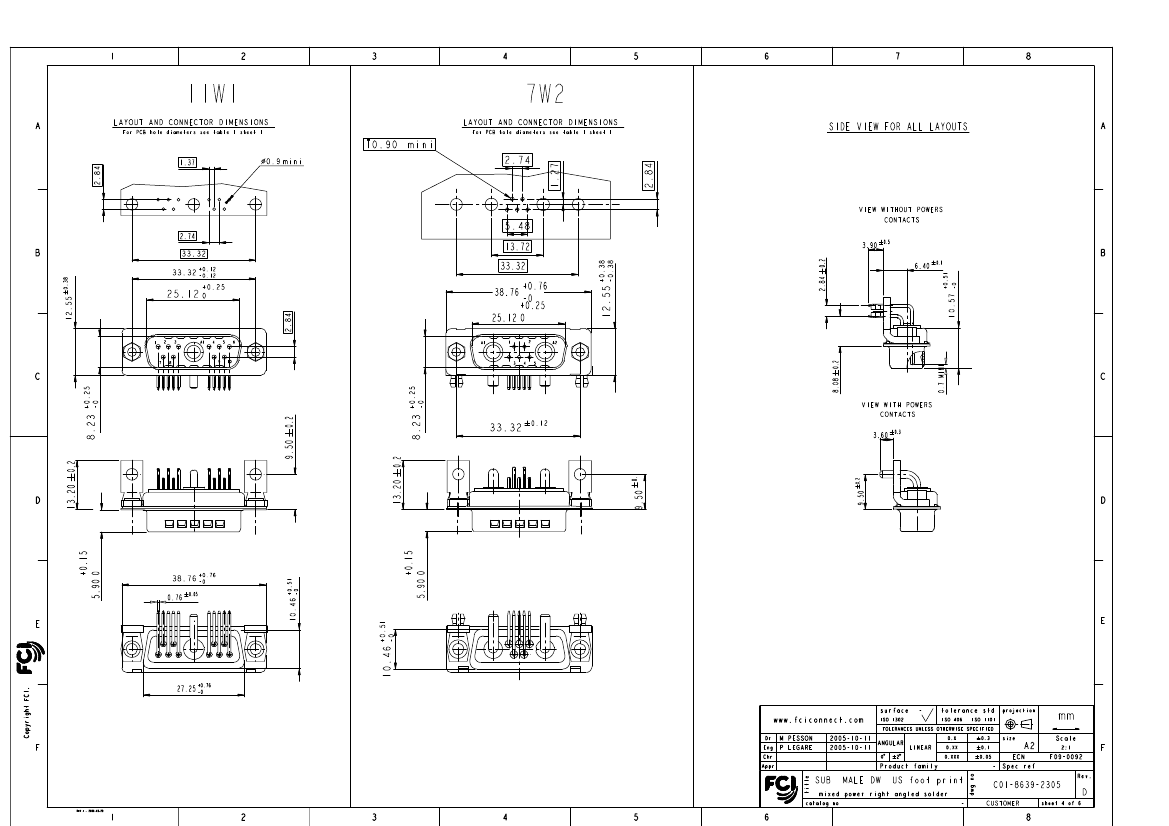

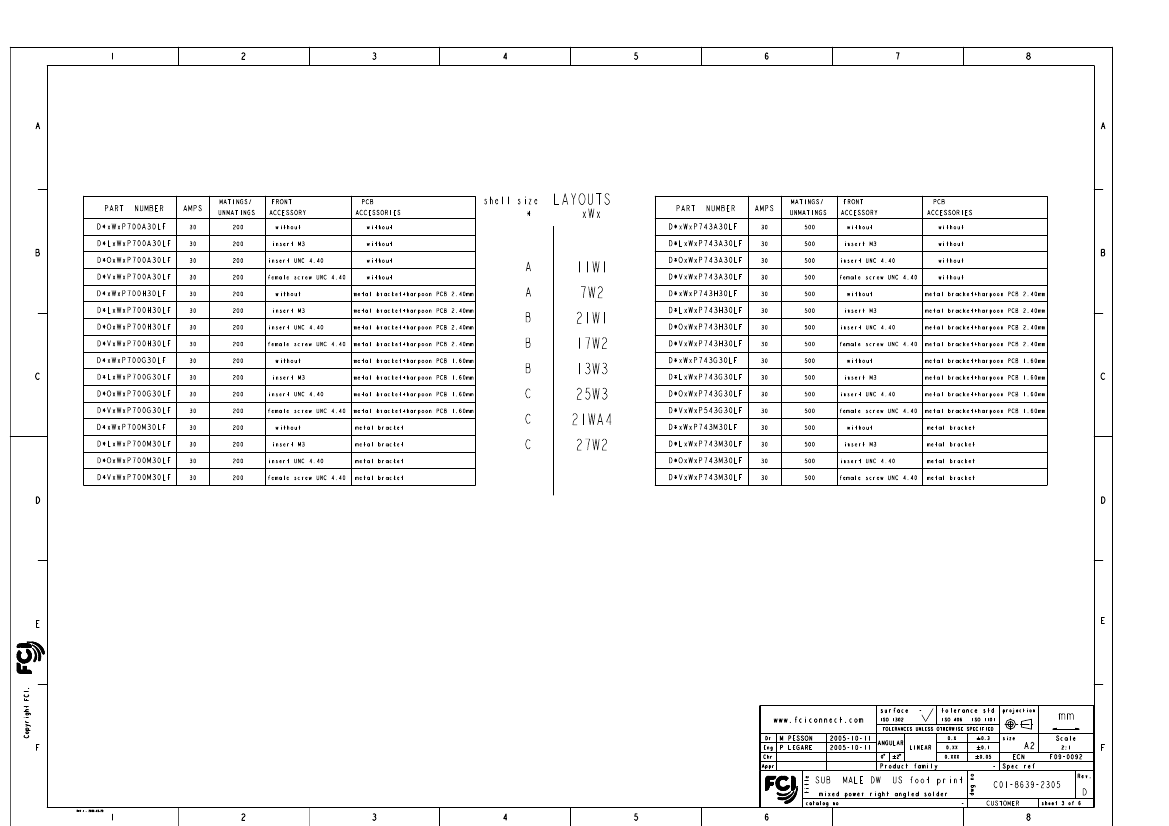

Preview

Download Datasheet

View All

PDM:

PDS: Rev :D

Rev:D

STATUS:Released

Printed: Apr 28,

Jun 19, 2015

Printed:

2015

STATUS:

Released

DBV17W2P700G30LF Related Products

	DBV17W2P700G30LF	DBV17W2P743G30LF	DAV11W1P743M00LF	DBO17W2P700G30LF	DA7W2P700G30LF	DCV25W3P743A30LF	DBO13W3P700G30LF	DC21WA4P700M30LF	DAO7W2P743M30LF	DBO17W2P743G30LF
Description	D-Sub Mixed Contact Connectors Mixed Signal and Power 17W2 Pin RA Solder 30A, US Standard, 200 Cycles, Front: Female Screw Lock UNC 4.40, Back: Harpoons for 1.6mm PCB Thickness	D-Sub Mixed Contact Connectors DSUB POWER STB 17W2 PIN	D-Sub Mixed Contact Connectors DSUB POWER STB 11W1 PIN	D-Sub Mixed Contact Connectors Mixed Signal and Power 17W2 Pin Right Angle Solder 30A, US Standard, 200 Cycles, Front:Threaded Insert UNC 4.40, Back:Harpoons for 1.6mm PCB Thickness	D-Sub Mixed Contact Connectors Mixed Signal and Power 7W2 Pin Right Angle Solder 30A, US Standard, 200 Cycles, Front: Without Accessory, Back: Harpoons for 1.6mm PCB Thickness	D-Sub Mixed Contact Connectors DSUB PWR STB 25W3 P	D-Sub Mixed Contact Connectors Mixed Signal and Power 13W3 Pin Right Angle Solder 30A, US Standard, 200 Cycles, Front:Threaded Insert UNC 4.40, Back:Harpoons for 1.6mm PCB Thickness	D-Sub Mixed Contact Connectors DSUB PWR STB 21WA4 P	D-Sub Mixed Contact Connectors Mixed Signal and Power 7W2 Pin Right Angle Solder 30A, US Standard, 500 Cycles, Front: Threaded Insert UNC 4.40, Back: Metal Brackets	D-Sub Mixed Contact Connectors Mixed Signal and Power 17W2 Pin Right Angle Solder 30A, US Standard, 500 Cycles, Front:Threaded Insert UNC 4.40, Back:Harpoons for 1.6mm PCB Thickness
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol
Product Category	D-Sub Mixed Contact Connectors	D-Sub Mixed Contact Connectors	D-Sub Mixed Contact Connectors	D-Sub Mixed Contact Connectors	D-Sub Mixed Contact Connectors	D-Sub Mixed Contact Connectors	D-Sub Mixed Contact Connectors	D-Sub Mixed Contact Connectors	D-Sub Mixed Contact Connectors	D-Sub Mixed Contact Connectors
Contact Arrangement	17W2	17W2	11W1	17W2	7W2	25W3	13W3	21WA4	7W2	17W2
Mounting Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Packaging	Tray	Tray	Tray	Tray	Tray	Tray	Tray	Tray	Tray	Tray
Current Rating	30 A Power, 7.5 A Signal	30 A Power, 7.5 A Signal	7.5 A	30 A Power, 7.5 A Signal	30 A Power, 7.5 A Signal	30 A	30 A Power, 7.5 A Signal	30 A Power, 7.5 A Signal	30 A Power, 7.5 A Signal	30 A Power, 7.5 A Signal
Gender	Male	Male	Male	Male	Male	Male	Male	Male	Male	Male
Factory Pack Quantity	20	80	100	80	25	15	20	15	100	80
RoHS	Details	Details	Details	Details	Details	-	Details	Details	Details	Details
Contact Plating	Gold	Gold	-	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Voltage Rating	300 V	300 V	-	300 V	300 V	300 V	300 V	300 V	300 V	300 V
Shell Plating	Semi Bright Nickel	Semi Bright Nickel	-	Semi Bright Nickel	Semi Bright Nickel	Tin	Semi Bright Nickel	Semi Bright Nickel	Semi Bright Nickel	Semi Bright Nickel
Shell Size	B	B	-	B	A	C	B	C	A	B
Maximum Operating Temperature	+ 125 C	+ 125 C	-	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Minimum Operating Temperature	- 55 C	- 55 C	-	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
