54242-807-14-0950LF datasheet, PDF

54242-807-14-0950LF: DescriptionBoard to Board & Mezzanine Connectors 2X7P SMT HDR 649-65873-006; CategoryThe connector; File Size104KB，1 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

54242-807-14-0950LF Overview

Board to Board & Mezzanine Connectors 2X7P SMT HDR 649-65873-006

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	Board to Board & Mezzanine Connectors
RoHS	Details
Product	Headers
Number of Positions	14 Position
Pitch	2.54 mm
Number of Rows	2 Row
Termination Style	SMD
Mounting Angle	Vertical
Current Rating	3 A
Voltage Rating	1.5 kV
Contact Plating	Gold
Housing Material	Thermoplastic
Contact Material	Phosphor Bronze
Mounting Style	-
Insulation Resistance	5000 MOhms
Factory Pack Quantity	250

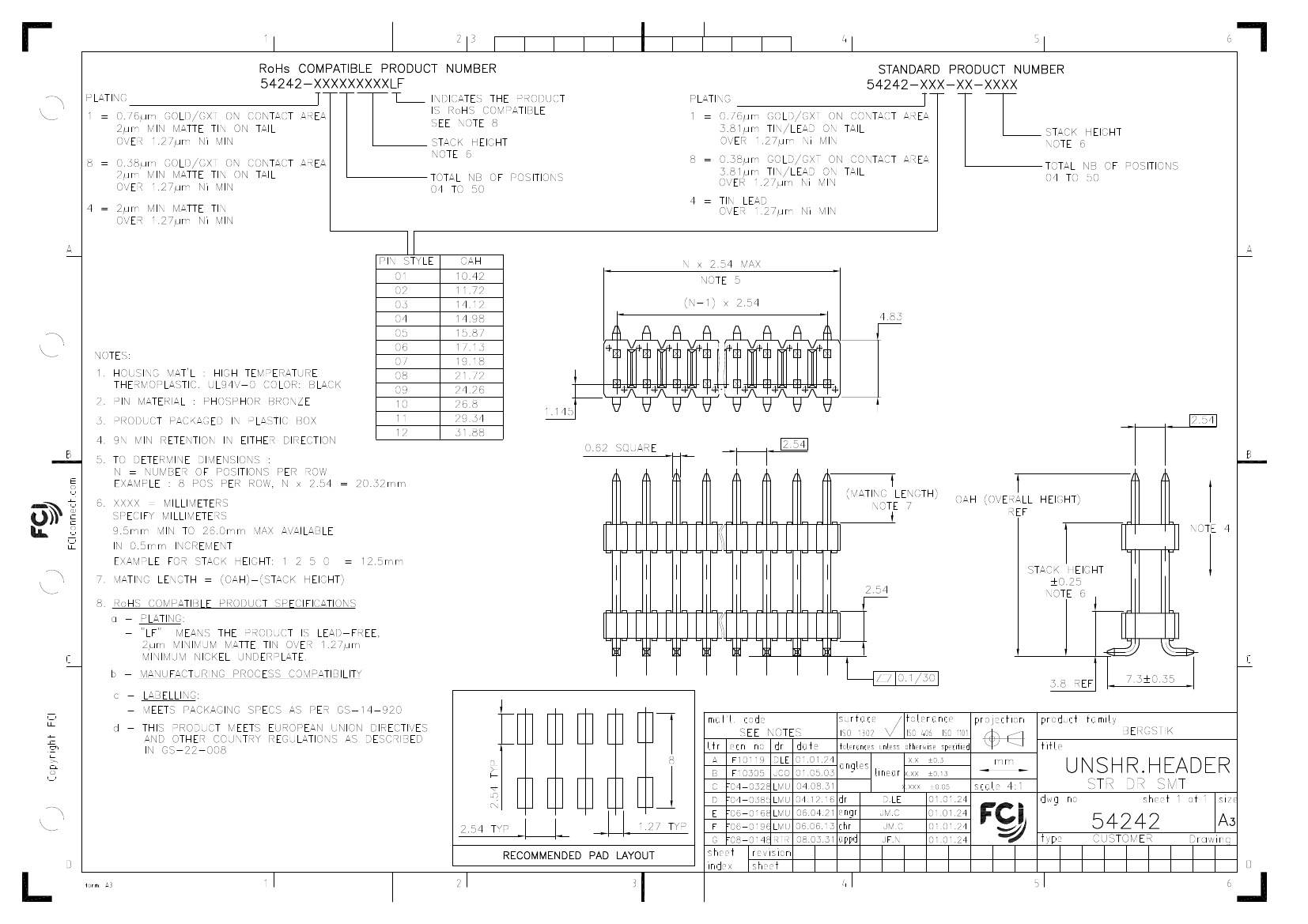

PDM: Rev:G

STATUS:

Released

Printed: Dec 13, 2012

.

	54242-807-14-0950LF	54242-807-14-0950
Description	Board to Board & Mezzanine Connectors 2X7P SMT HDR 649-65873-006	Board to Board & Mezzanine Connectors 2X7P SMT HDR
Product Attribute	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol
Product Category	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors
RoHS	Details	N
Product	Headers	Headers
Number of Positions	14 Position	14 Position
Pitch	2.54 mm	2.54 mm
Termination Style	SMD	SMD
Mounting Angle	Vertical	Vertical
Current Rating	3 A	3 A
Voltage Rating	1.5 kV	1.5 kV
Contact Plating	Gold	Gold
Housing Material	Thermoplastic	Thermoplastic
Contact Material	Phosphor Bronze	Phosphor Bronze
Insulation Resistance	5000 MOhms	5000 MOhms
Factory Pack Quantity	250	100
