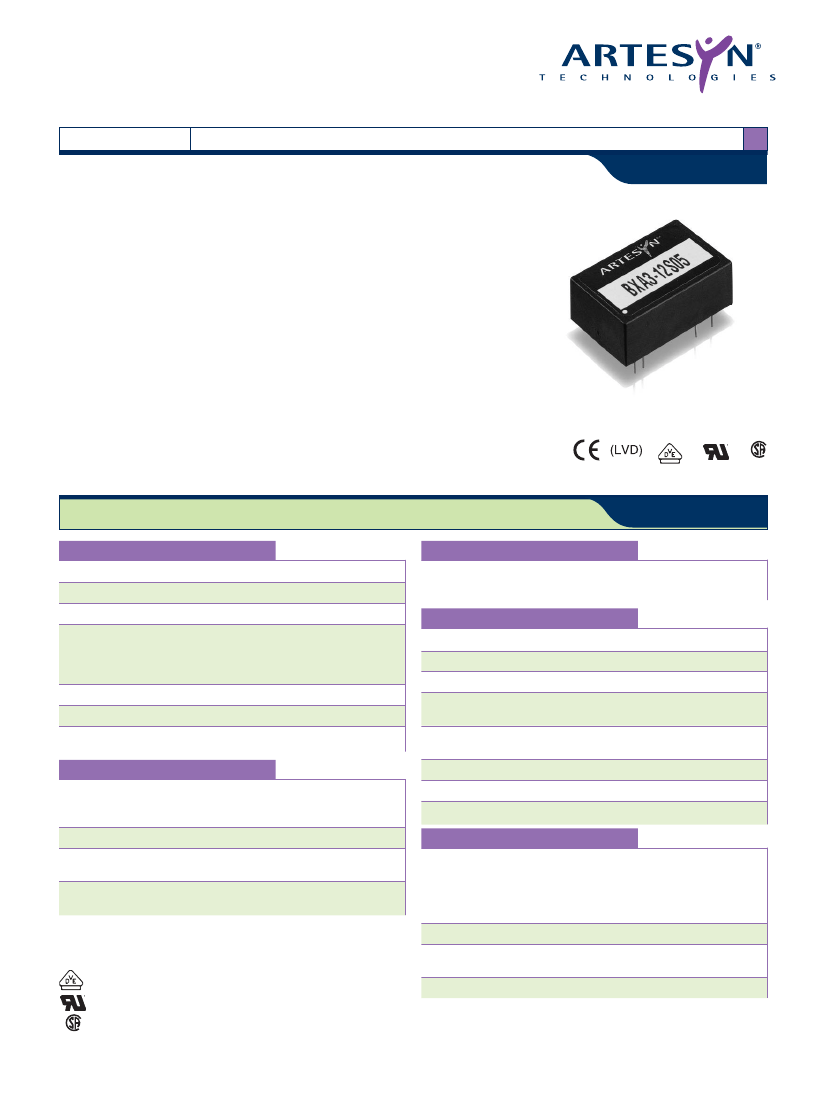

BXA3 Series
DC/DC CONVERTERS
•
•
•
•
•
•
•
•
Single and dual output
3W Wide Input DC/DC Converters
1
3 Watts in DIL Package
9 models including 3.3VDC output
Wide input ranges 9-18V, 18-36V, 36-75V
EN55022 conducted emissions level A (optional)
Continuous short circuit protection
Operating temperature range -25°C to +105°C
Input voltage range to ETS300-132-2
UL, VDE and CSA safety approvals
The BXA3 Series of DC/DC converters is designed to offer the optimum
cost/benefit power solution for a wide variety of applications including public
and private telecommunications, industrial systems and process and test
equipment. The series consists of 9 models with input voltages of 9-18VDC, 18-
36VDC and 36-75VDC, and offers standard output voltages of 3.3V, 5V, 12V and
15V in single and dual output configurations. Continuous short circuit protection,
overvoltage protection, 60mV output ripple and EN55022 level A conducted
noise compliance minimize design-in time, cost and eliminate the need for
external components.
2 YEAR WARRANTY
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Voltage accuracy
Line regulation
Load regulation
Ripple and noise
(5Hz to 20MHz)
LL to HL, all outputs
Full load to no load
+5V output
All others
Temperature coefficient
Over voltage protection
Short circuit protection
INPUT SPECIFICATIONS
Input voltage range
12VDC
24VDC
48VDC
Suffix ‘-F’ (See Note 5)
(See Note 7)
Output remains within
specification
9 to 18VDC
18 to 36VDC
36 to 75VDC
Pi type
Yes
5V/ms
Clamp diode
±1.0%
±2.5%
±2.5%
60mV pk-pk, max.,
15mV rms
100mV pk-pk, max.,
15mV rms
±0.02%/°C, max.
135% Vout
Continuous
automatic recovery
EMC CHARACTERISTICS
Conducted emissions
EN55022, FCC part 15
Suffix ‘-F’ versions
(See Notes 5 and 6)
Level A
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Switching frequency
Approvals and
standards
Case material
Material flammability
Weight
MTBF
MIL-HDBK-217F
Input/output
Variable
See table
500VDC
200kHz to1MHz
VDE0805, EN60950, IEC950
UL1950, CSA C22.2 No. 950
Non-conductive
black plastic
UL94V-0 min.
15g (0.53oz)
800,000 hours
Input filter
Reverse voltage
protection
Max. input rise
and fall time
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Operating ambient
-25°C to +105°C
(See derating curve)
Non-operating amb
-40°C to +105°C
Cooling
Free air convection
cooled
Non-condensing
Operating
Non operating
5Hz to 500Hz
5% to 95% RH
10,000 feet max.
40,000 feet max.
2.5G rms (approx.)
Relative humidity
International Safety Standard Approvals
VDE0805/EN60950/IEC950 Licence No. 5856
UL1950 File No. E136005
CSA C22.2 No. 950 File No. LR41062C
Altitude
Vibration
File Name: bxa3.pdf Rev: 10 August 2005
BXA3 Series
DC/DC CONVERTERS
INPUT
VOLTAGE
9-18VDC
9-18VDC
18-36VDC
18-36VDC
18-36VDC
36-75VDC
36-75VDC
36-75VDC
36-75VDC
OUTPUT
VOLTAGE
3.3V
15.0V
3.3V
5.0V
±5.0V
3.3V
5.0V
12.0V
15.0V
OUTPUT
CURRENT
600mA
200mA
600mA
500mA
±250mA
600mA
500mA
250mA
200mA
(1)
Single and dual output
3W Wide Input DC/DC Converters
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
INPUT
CURRENT
245mA
335mA
122mA
140mA
140mA
61mA
69mA
83mA
83mA
(2)
TYPICAL
EFFICIENCY
68%
75%
68%
76%
76%
68%
76%
76%
76%
REGULATION
LINE
(3)
MODEL
(4)
LOAD
NUMBER
(5,8)
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
±2.5%
BXA3-12S3V3
BXA3-12S15
BXA3-24S3V3
BXA3-24S05
BXA3-24D05
BXA3-48S3V3
BXA3-48S05
BXA3-48S12
BXA3-48S15
Notes
1
2
3
4
5
Maximum.
Maximum figure at full load (nominal).
Low line to high line.
Full load to no load.
An optional internal filter is available. When the filter is added, the BXA3 will
meet VDE0871-A, VDE0878-A and EN55022-A. Add the suffix ‘-F’ to the
model number, e.g.
BXA3-12S15-F.
Conducted noise filtering to EN55022 level B may be accomplished by
putting the following capacitors across the input pins.
12VDC
5µF ceramic X7R dielectric type
24VDC
3µF ceramic X7R dielectric type
48VDC
1µF ceramic X7R dielectric type
Reverse voltage protection can be implemented by putting a fast blow fuse
on the positive input rail. Rate the fuse for 250mA at 48VDC input, 500mA
at 24VDC input and 1000mA at 12VDC input.
NOTICE: Some models do not support all options. Please contact your
local Artesyn representative or use the on-line model number search tool at
http://www.artesyn.com/powergroup/products.htm to find a suitable
alternative.
6
7
8
File Name: bxa3.pdf Rev: 10 August 2005
BXA3 Series
DC/DC CONVERTERS
Single and dual output
3W Wide Input DC/DC Converters
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
0.12 Typ
(3.0)
0.1
(2.5)
23
22
2
3
0.020 Dia.
(0.5)
DOT ON TOP
REFERENCES
PIN 2
1.25
(31.8)
0.6
(15.2)
BOTTOM VIEW
0.1
(2.5)
0.1
(2.5)
0.175
(4.5)
0.1
(2.5)
16
15
14
9
10
11
0.03
(0.762)
0.60
(15.2)
0.02
(0.5)
0.50
(12.7)
0.80
(20.3)
ALL DIMENSIONS IN Inches (mm)
ALL PINS ARE IN TRUE POSITION WITHIN .010 DIA. @ M.M.C.
TOLERANCE
.XX =
±
0.02
(INCHES)
.XXX =
±
0.005
PIN CONNECTIONS
PIN NUMBER
2
3
22
23
9
10
11
14
15
16
SINGLE OUTPUT
–Vin
–Vin
+Vin
+Vin
No Pin
No Pin
No Connection
+Vout
No Pin
-Vout
DUAL OUTPUT
–Vin
–Vin
+Vin
+Vin
Common
No Pin
-Vout
+Vout
No Pin
Common
0W
2.5/3W
DERATING CURVE
Output Power (Watts)
71°C
85°C
105°C
0°C 10°C
20°C
30°C 40°C
50°C
60°C 70°C 80°C
90°C 100°C 110°C
-25°C -20°C -10°C
Datasheet © Artesyn Technologies® 2005
The information and specifications contained in this datasheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s) or information contained herein.
www.artesyn.com
File Name: bxa3.pdf Rev: 10 August 2005
