BVE-M-R0003-5.0 datasheet, PDF

Datasheet> All Categories > BVE-M-R0003-5.0

Preview

BVE-M-R0003-5.0: DescriptionPrecision Resistors; File Size56KB，3 Pages; ManufacturerRhopoint Components Ltd; Websitehttps://www.rhopointcomponents.com/

Download Datasheet Compare View All

BVE-M-R0003-5.0 Overview

Precision Resistors

Preview

Download Datasheet

View All

Ausgabe / Issue : 16/10/2002

Precision Resistors

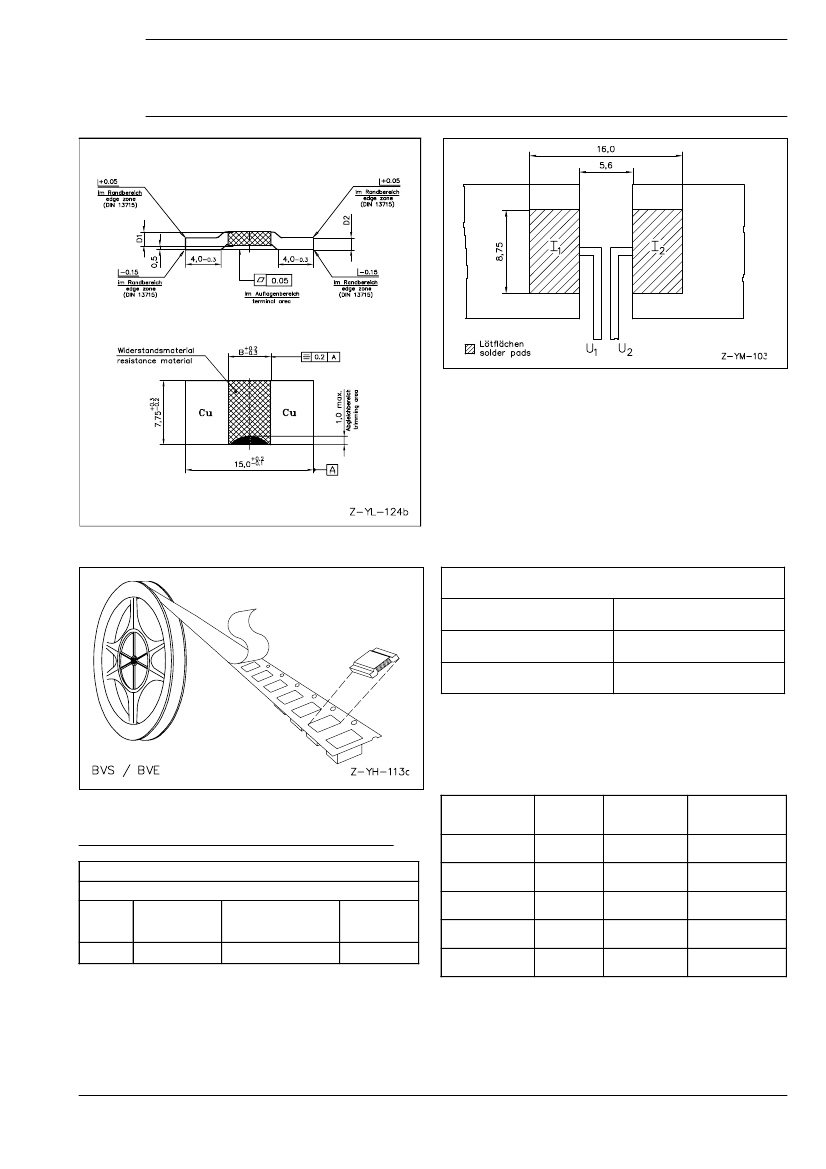

Typ / type BVE

Technische Daten / technical data

Widerstandswerte

Toleranz

Temperaturkoeffizient

Temperaturbereich

Belastbarkeit

Innerer Wärmewiderstand

Induktivität ( R = 1 mOhm )

Stabilität unter Nennlast

( T

= 95°C )

resistance values

tolerance

temperature coefficient ( tcr )

applicable temperature range

load capacity

internal heat resistance

inductance ( R = 1 mOhm )

stability ( nominal load )

( T

=95°C )

( 0.2, 0.3, 0.5, 1 ) mOhm

1%* , 2%*, 5%

< 50 ppm/K ( 20 °C – 60 °C )

-55 °C bis +125 °C

Rth < 10 K/W

< 3 nH

Abweichung < 0.5 % nach 2000 h

deviation < 0.5 % after 2000 h

* in Vorbereitung / under development

Merkmale / features

∆R/R

[%]

0.2

•

5 Watt Dauerleistung

5 Watt permanent power

-40

-20

80 100 120

•

Dauerströme bis 160 A ( 0,2 mOhm )

constant current up to 160 Amps ( 0,2 mOhm )

T [

-0.2

•

Massive Kupferanschlüsse

heavy copper connectors

-0.4

•

sehr gute Langzeitstabilität

excellent long term stability

•

Niedrige Induktivität

low inductance value

•

Geeignet für Löttemperaturen bis 350 °C / 30 sek

oder 250 °C / 10 min

max. solder temperature up to 350 °C / 30 sec

or 250 °C / 10 min

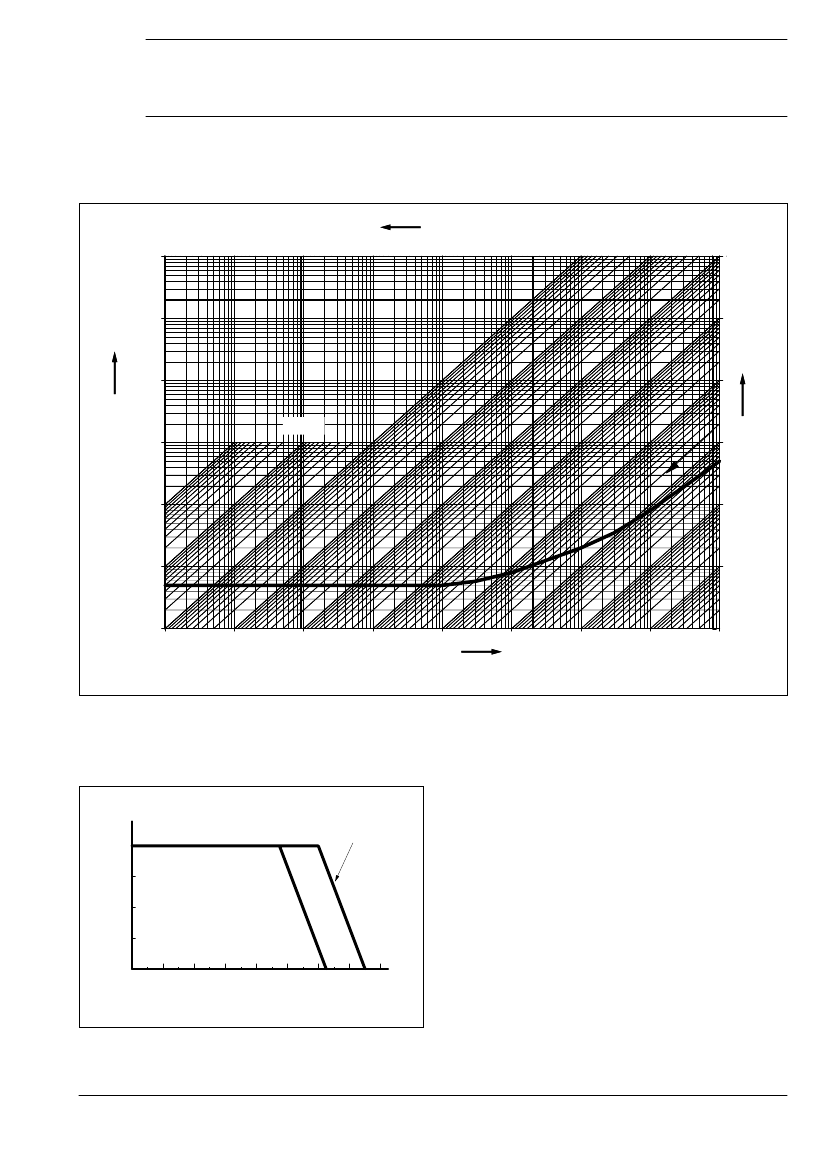

Temperaturabhängigkeit des elektrischen Widerstandes von

ALU-CHROM-Widerständen

temperature dependence of the electrical resistance of

ALU-CHROM-resistors

•

Bauteilmontage: Reflow löten oder schweißen

mounting: reflow soldering or welding on copper

∆R/R

[%]

0.5

-40

-20

100

120

Applikationen / application

•

Meßwiderstand für Leistungshybride

current sensor for power hybrid applications

T [

-0.5

-1

•

für Schweißmontage an Stromschienen /

for welding on bus bar

•

Frequenzumrichter / frequency converters

•

Leistungsmodule / power modules

•

Hochstromanwendungen in der Automobiltechnik

high current applications for the automotive market

Temperaturabhängigkeit des elektrischen Widerstandes von

MANGANIN-Widerständen

temperature dependence of the electrical resistance of

MANGANIN-resistors

Der jeweils aktuelle Stand des Datenblattes finden Sie auf unsere Internetseite - You can always find the current valid issue of data sheet on our homepage

RHOPOINT COMPONENTS LTD

BVE-1 / 3

Holland Road, Hurst Green, Oxted, Surrey, RH8 9AX, ENGLAND

Tel: +44/01883 717988, Fax: +44/01883 712938, Email: sales@rhopointcomponents.com Website: www.rhopointcomponents.com
