POWER
Data Sheet
Total Power:
3 W
Input Voltage:
12, 24 or 48 V
# of Outputs:
Single and Dual
ATA Series
3 Watts

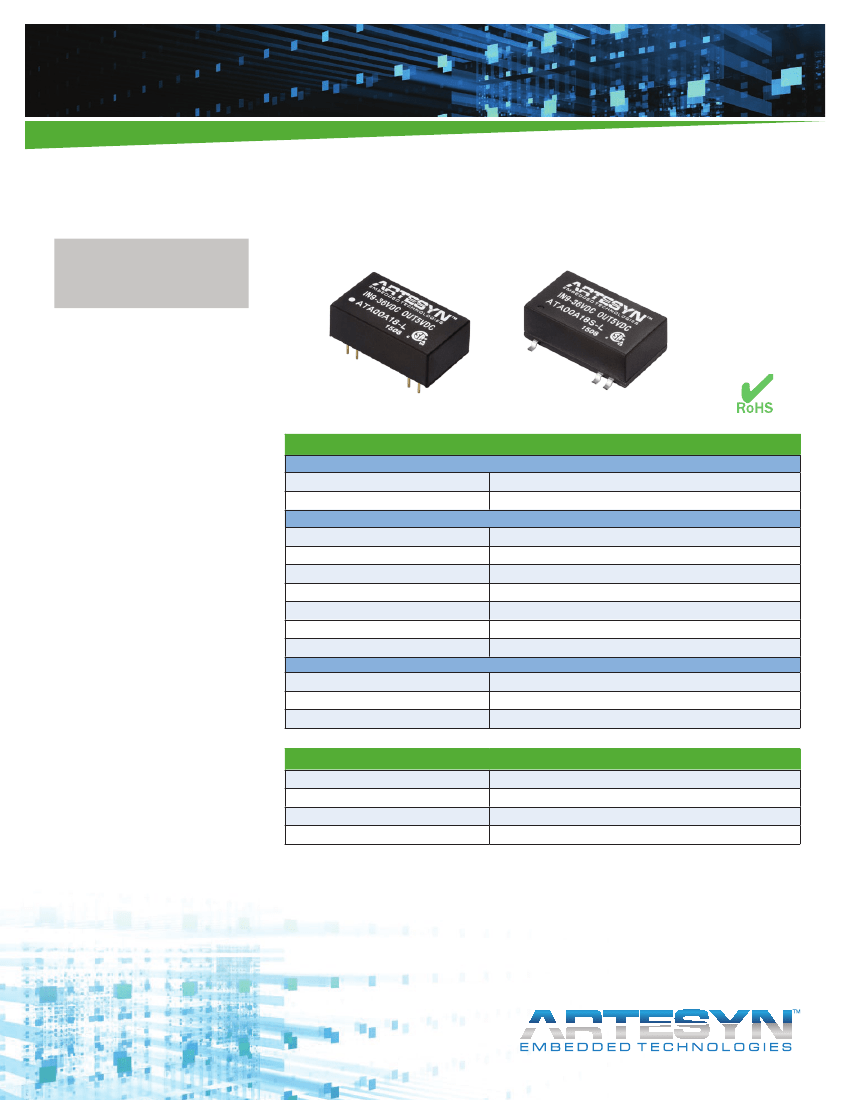

SPECIAL FEATURES
Ultra compact DIP and SMD package
23.8 x 13.7 x 8.0 mm
(0.94 x 0.54 x 0.31 inches)
Efficiency up to 80%
I/O-isolation 1500 VDC
Ultra-wide 4:1 input range
Operating temperature range
-40 °C to +85 °C
Remote ON/OFF control
Input filter meets EN 55022,class A
and FCC, level A
3 year product warranty
CSA/UL/IEC/EN 60950-1 Safety
Approval
Qualified for lead-free reflow solder
process according to IPC/JEDEC
J-STD-020D (for SMD Package)
Electrical Specifications
Input
Input range
Efficiency
9 - 36 Vdc, 18 - 75 Vdc
80% @ 24 Vo
±2.0%
1.0%
1.2%
100 mV
150% typ of Io max, foldback
Hiccup mode
350 KHz
I/O: 1500 Vdc
1000 Mohm
500 pF
Output
Voltage tolerance
Line regulation
Load regulation
Noise/ripple
Overload protection
Short circuit protection
Switching frequency
SAFETY
UL/cUL 60950-1 recognition (CSA
certificate)
IEC/EN 60950-1 (CB-scheme)
Isolation
I/O isolation
Insulation resistance
Insulation capacitance
Environmental Specifications
Operating ambient temperature range
Storage temperature
Humidity
MTBF
-40 °C to +85 °C
-50 °C to +125 °C
5% to 95% non-condensing
300 Khrs calculated
ATA Series Data Sheet

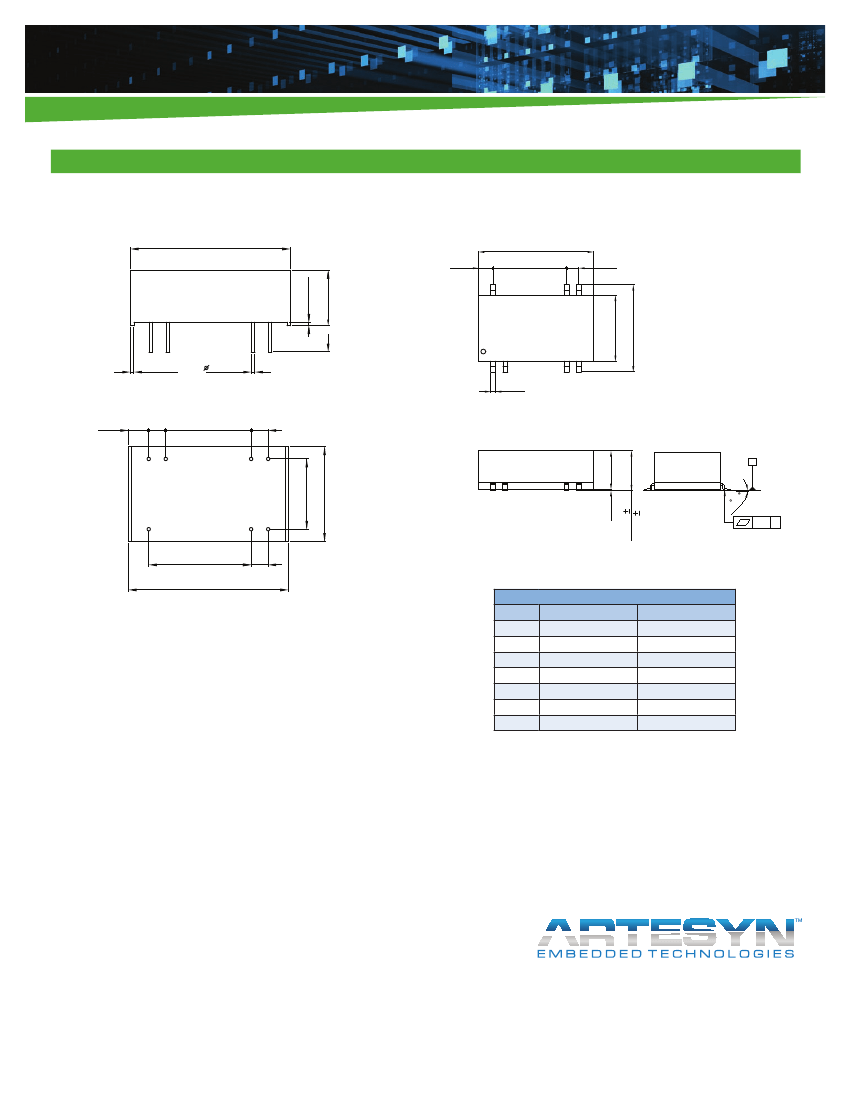

Mechanical Dimensions
ATAxxx-L (DIP)
ATAxxxS-L (SMD)
23.8 [0.94]
24.0[0.94]
3.11
[0.12]
8.0 [0.31]
15.24 [0.60]
0.5 [0.02]
2.54
[0.10]
10 9
16
13.7 [0.54]
1
2
7
8
0.5 [0.02]
0.5 [0.02]
1.00
[0.04]
3.0
[0.12]
2.54
[0.10]
12.7
[0.50]
2.54
[0.10]
18.1 [0.71]
3.8
[0.15]
1
2
7
8
10.16 [0.40]
13.7 [0.54]
0~
4
0.1 S
Bottom View
16
10
9
15.24 [0.60]
23.8 [0.94]
2.54
[0.10]
Pin Connections
Pin
1
• All dimensions in mm (inches)
• Tolerance: X.X±0.25 (X.XX±0.01)
X.XX±0.13 ( X.XXX±0.005)
• Pin pitch tolerance: ±0.25 (±0.01)
• Pin dimension tolerance: ±0.1 (±0.004)
2
7
8
9
10
16
Single Output
-Vin
Remote On/Off
NC
NC
+Vout
-Vout
+Vin
Dual Output
-Vin
Remote On/Off
NC
Common
+Vout
-Vout
+Vin
