BTL-32YEC-XX-R Overview

MEGA BRIGHT LED

MEGA BRIGHT LED
BTL-32YEC-XX-X
Product Features
Ultra Bright Yellow Color
High Light Output

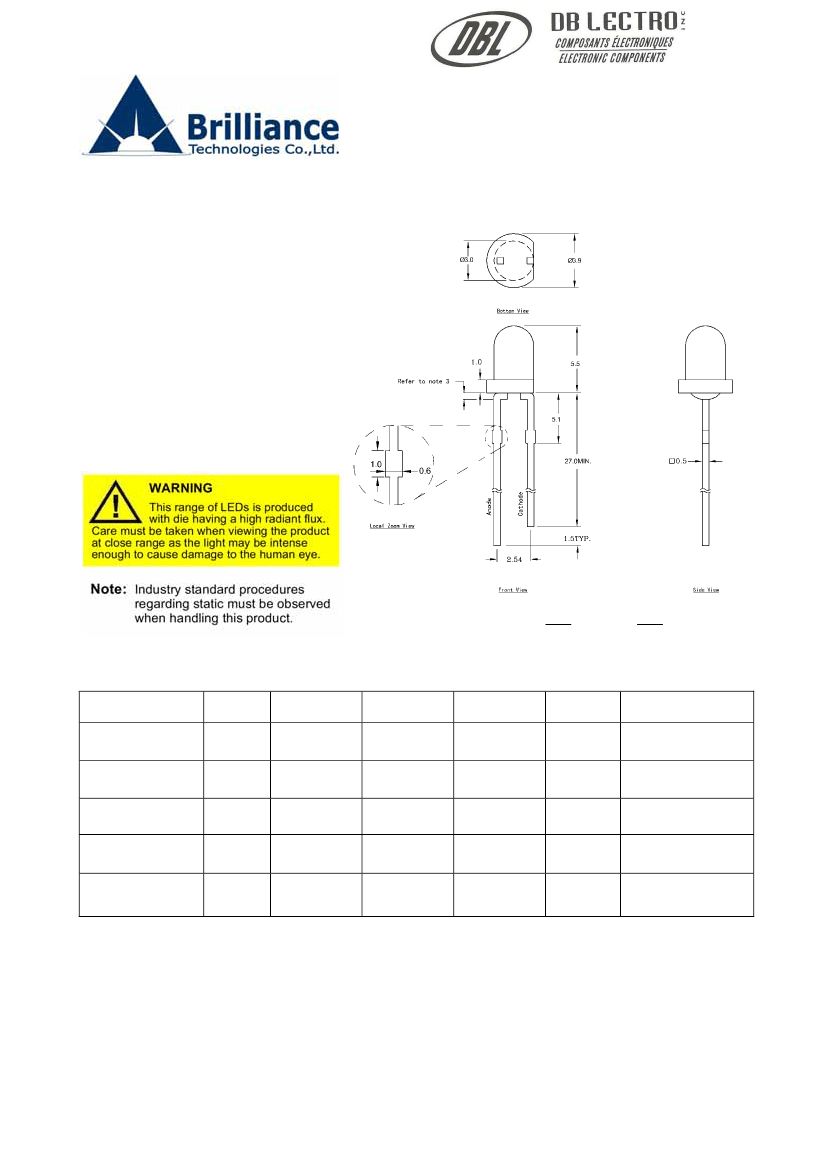

Package Dimension
3mm Diameter Circular Package
Water Clear Lens
Highly Reliable
IC Compatible
Leads without Stand Off
Applications
Automotive
Front Panel Indicator
Special Lighting
General Purpose LEDs
Tolerance:
±
inch
mm
Unit:
±
0.01
0.25
Optical and Electrical Characteristics at T
a
=25℃
Parameter
Luminous
Intensity
Viewing Angle
Dominant
Wavelength
DC Forward
Voltage
DC Reverse
Current
Symbol
I
v
2θ½
Minimum
585
0
Typical
2300
30
590
1.9
Maximum
595
2.5
10
Units
mcd
deg
nm
V
µA
Conditions
I
F
= 20mA
(Note 1)
I
F
= 20mA
I
F
= 20mA
(Note 2)
λ
D
V
F
I
R
I
F
= 20mA
V
R
=5V
Notes:
1.
Light intensity measures the light sensing response standard using chromatic meter. Refer to the CIE
eye-response curve set by International Lighting committee.
Tolerance of minimum and maximum
intensity = ± 15%
2. Wavelength range can be slected from the bin selection table. Tolerance of minimum and
maximum = ± 2nm
3.
These products are sensitive to static electricity and care must be fully taken when handling
products

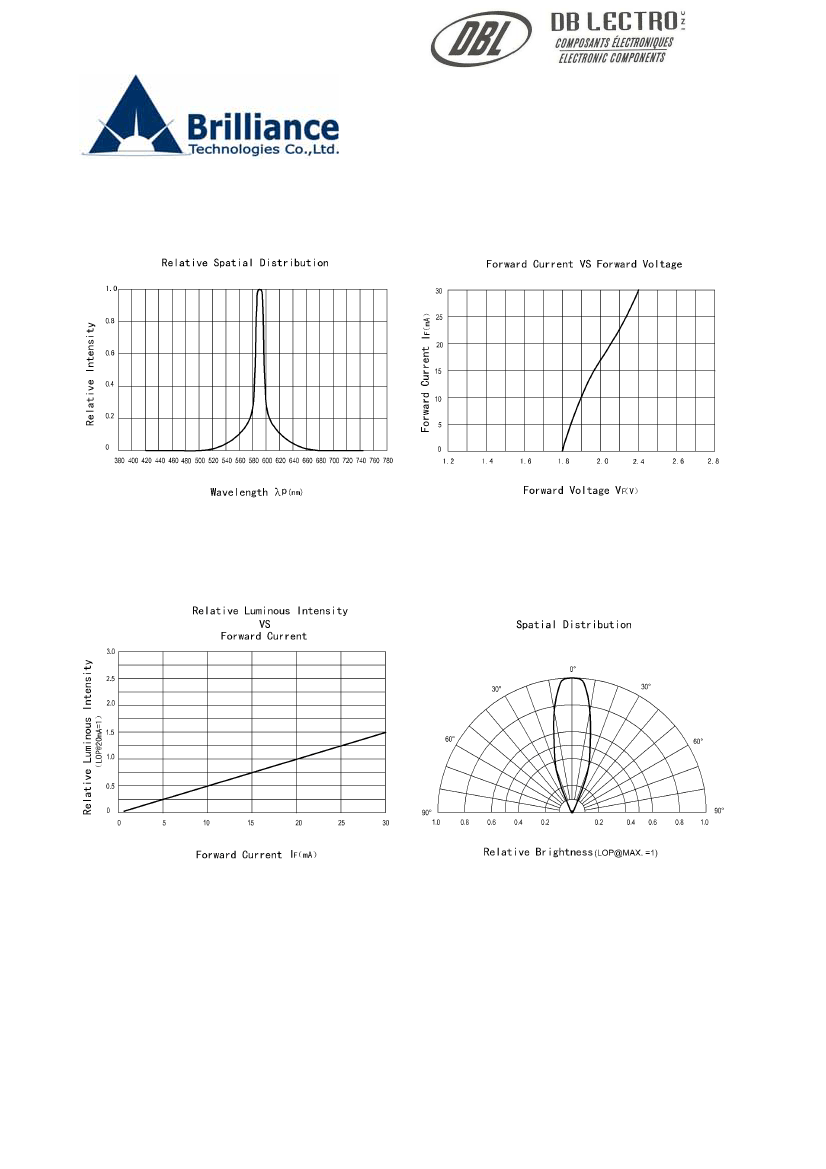

Page 1 of 3
