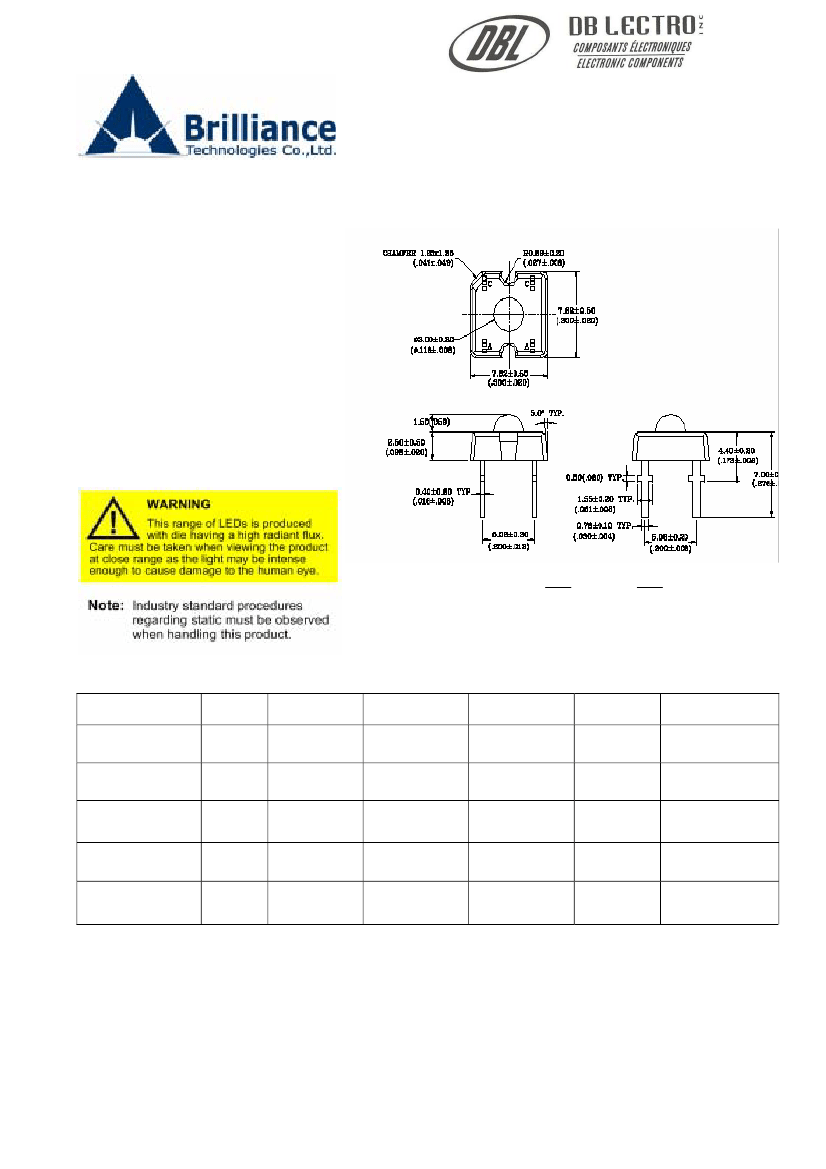

SUPER FLUX LED
BTF-37YECS-XX-X
Product Features
Ultra Bright Yellow Color
High Light Output
Package Dimension
3mm Super Flux Package
Water Clear Lens
Highly Reliable
IC Compatible
Leads with Stand Off
Applications
Outdoor Sign Board
Automotive
Front Panel Indicator
Special Lighting
General Purpose LEDs
inch
Tolerance:
0.01
Unit:
±
mm
±
0.25
Optical and Electrical Characteristics at T
a
=25℃
Parameter
Luminous
Intensity
Viewing Angle
Peak
Wavelength
DC Forward
Voltage
DC Reverse
Current
Symbol
Iv
2θ
1/2
λ
P
V
F
I
R
Minimum
485
－
580
－
0
Typical
600
90
－
1.9
－
Maximum
－
－
595
2.5
10
Units
mcd
degree
nm
V
µA
Conditions
I
F
= 20mA
(Note 1)
I
F
= 20mA
I
F
= 20mA
(Note 2)
I
F
= 20mA
V
R
=5V
Notes:
1.
Light intensity measures the light sensing response standard using chromatic meter. Refer to the CIE
eye-response curve set by International Lighting committee.
Tolerance of minimum and maximum
intensity = ± 15%
2. Color coordinates range can be selected from the bin selection table. The parameters used fulfilled
the 1932 2 standard
3.
These products are sensitive to static electricity and care must be fully taken when handling products
Page 1 of 2
SUPER FLUX LED
BTF-37YECS-XX-X
Absolute Maximum Ratings at T
a
=25℃
Symbol
P
D
V
R
I
F
I
PF
T
opr
T
stg
Power Rating
Reverse Voltage (I
R
=10µA)
Continuous Forward Current
Peak Forward Current (0.1 duty cycle @ 1kHz)
Operating Temperature Range
Storage Temperature Range
Parameter
Max.
60
5
30
100
–35 ~ + 80
–40 ~ + 100
Unit
mW
V
mA
mA
℃
℃
Lead Soldering Temperature [1.6mm (0.063inch) from body]
260℃ - max 5 seconds
Color and Brightness Selection
BTF-37YECS-XX-X
Color Bin Selection
Brightness Bin Selection
Bin
Y1
Y2
Y3
XX
Yellow (nm)
580~585
585~590
590~595
580~595
Bin
N
O
P
Range(mcd)
485~680
680~950
950~1300
Page 2 of 2
