SUPER FLUX LED
BTF-08BLCS-XX-X
Product Features
Ultra Bright Blue Color
High Light Output

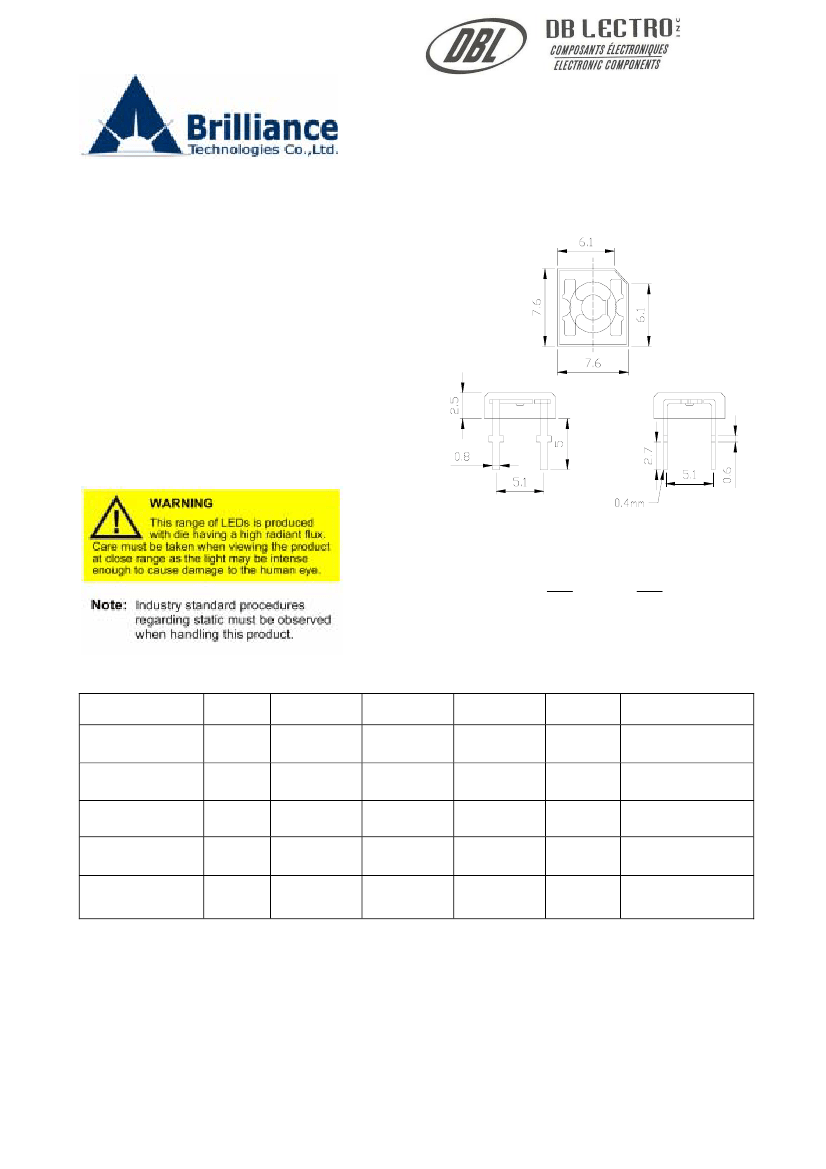

Package Dimension
Flat head Super Flux Package
Water Clear Lens
Highly Reliable
IC Compatible
Leads without Stand Off
Applications
Outdoor Sign Board
Automotive
Front Panel Indicator
Special Lighting
General Purpose LEDs
inch
Tolerance:
0.01
Unit:
±
mm
±
0.25
Optical and Electrical Characteristics at T
a
=25℃
Parameter
Luminous
Intensity
Viewing Angle
Peak
Wavelength
DC Forward
Voltage
DC Reverse
Current
Symbol
Iv
2θ
1/2
λ
P
V
F
I
R
Minimum
950
－
460
－
0
Typical
1500
120
－
3.3
－
Maximum
－
－
470
4.0
10
Units
mcd
degree
nm
V
µA
Conditions
I
F
= 20mA
(Note 1)
I
F
= 20mA
I
F
= 20mA
(Note 2)
I
F
= 20mA
V
R
=5V
Notes:
1.
Light intensity measures the light sensing response standard using chromatic meter. Refer to the CIE
eye-response curve set by International Lighting committee.
Tolerance of minimum and maximum
intensity = ± 15%
2. Wavelength range can be selected from the bin selection table. Tolerance of minimum and
maximum = ± 2.5nm
3.
These products are sensitive to static electricity and care must be fully taken when handling
products
Page 1 of 2
SUPER FLUX LED
BTF-08GMCS-XX-X
Absolute Maximum Ratings at T
a
=25℃
Symbol
P
D
V
R
I
F
I
PF
T
opr
T
stg
Power Rating
Reverse Voltage (I
R
=10µA)
Continuous Forward Current
Peak Forward Current (0.1 duty cycle @ 1kHz)
Operating Temperature Range
Storage Temperature Range
Parameter
Max.
80
5
30
100
–35 ~ + 80
–40 ~ + 100
Unit
mW
V
mA
mA
℃
℃
Lead Soldering Temperature [1.6mm (0.063inch) from body]
260℃ - max 5 seconds
Wavelength and Brightness Selection
BTF-08BLCS-XX-X
Wavelength Bin Selection
Brightness Bin Selection
Bin
B5
B6
XX
Blue (nm)
460~465
465~470
460~470
Bin
P
Q
R
Range (mcd)
950~1300
1300~1800
1800~2500
Page 2 of 2
